Vehicle Interior
_078381
LIGHTING (INT)
_0396484
SPOT LIGHT(for Wagon)
G
LIGHTING (INT) SPOT LIGHT(for Wagon) INSPECTION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RHD and LHD vehicles.
·The procedure listed below is for the LHD vehicles.
·Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81360T
1.INSPECT SPOT LIGHT ASSEMBLY
a.
0.781,1.625 1.479,1.115
true
2,1.104 2.688,1.656
true
0.031,0.042 0.323,0.25
0.292,0.208
10
false
*a
0.49,1.542 0.76,1.729
0.271,0.188
10
false
SW
2.781,1.563 3.115,1.75
0.333,0.188
10
false
E

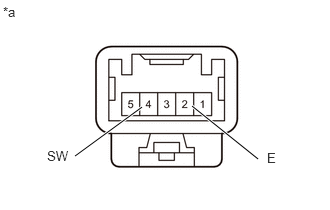

| *a | Component without harness connected
(Spot Light Assembly) |
Measure the resistance according to the value(s) in the table below.
- Standard Resistance:
Tester Connection Condition Specified Condition 4 (SW) - 2 (E) Reading light switch off 10 kΩ or higher 4 (SW) - 2 (E) Reading light switch on Below 1 Ω
If the result is not as specified, replace the spot light assembly.
b.
Check the illumination.
i.
0.615,1.406 1.281,1.104
true
2.177,1.104 2.76,1.417
true
0.031,0.031 0.333,0.229
0.302,0.198
10
false
*a
0.448,1.313 0.667,1.542
0.219,0.229
10
false
+
2.885,1.271 3.104,1.5
0.219,0.229
10
false
-
| *a | Component without harness connected
(Spot Light Assembly) |
Apply battery voltage to the connector and check that the switch illumination comes on.
- OK:
Measurement Condition Condition Specified Condition Battery positive (+) → 5 (+)
Battery negative (-) → 1 (-)Always Illumination comes on
If the result is not as specified, replace the spot light assembly.
c.
Check the switch illumination.
i.
0.677,1.438 1.656,1.083
true
2,1.094 2.75,1.365
true
0.031,0.031 0.333,0.229
0.302,0.198
10
false
*a
0.333,1.344 0.646,1.542
0.313,0.198
10
false
ILL+
2.833,1.302 3.052,1.531
0.219,0.229
10
false
E

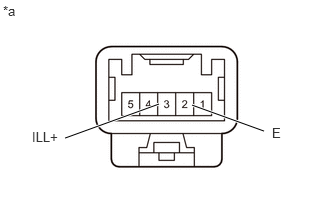

| *a | Component without harness connected
(Spot Light Assembly) |
Apply battery voltage to the connector and check that the switch illumination comes on.
- OK:
Measurement Condition Condition Specified Condition Battery positive (+) → 3 (ILL+)
Battery negative (-) → 2 (E)Always Switch illumination comes on
If the result is not as specified, replace the spot light assembly.
