INTERIOR PANELS / TRIM REAR SUNSHADE ASSEMBLY(for Rear Door) INSTALLATION
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
65908D
1.INSTALL REAR CURTAIN SUB-ASSEMBLY LH
a.

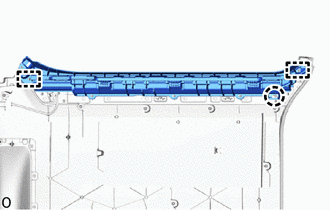

Attach the guide and claw to install the rear curtain sub-assembly LH.
b.
Install the 6 screws.
67690C
2.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY LH
- HINT:
-
Use the same procedure described for the RH side.
81380H
3.INSTALL STEP LIGHT ASSEMBLY
67488A
4.INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH
- HINT:
-
Use the same procedure described for the RH side.
67668A
5.INSTALL SLIDE DOOR WINDOW GARNISH LH
- HINT:
-
Use the same procedure described for the RH side.
67693B
6.INSTALL SLIDE DOOR TRIM UPPER COVER LH
- HINT:
-
Use the same procedure described for the RH side.
