INTERIOR PANELS / TRIM  ROOF HEADLINING(for Wagon)  DISASSEMBLY

74605A 1.REMOVE COAT HOOK SUB-ASSEMBLY

HINT:

Use the same procedure for both coat hook sub-assemblies.

a.

Detach the claw and remove the coat hook sub-assembly.

81360T 2.REMOVE SPOT LIGHT ASSEMBLY (for Rear Side)

86150A 3.REMOVE NO. 2 ROOF SPEAKER ASSEMBLY WITH BRACKET (for 6 Speakers)

86160Q 4.REMOVE ROOF SPEAKER ASSEMBLY (for 12 Speakers)

82173 5.REMOVE NO. 3 ROOF WIRE

a.

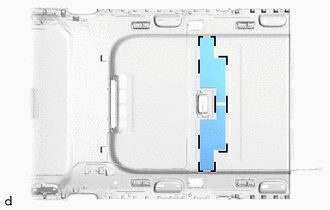

Remove the silencer pad.

b.

Remove the No. 10 silencer pad.

HINT:

Use the same procedure for the opposite side.

c.

w/ Rear Air Conditioning System:

i.

Remove the air duct.

ii.

Remove the air duct packing.

HINT:

Use the same procedure for the opposite side.

d.

w/ Curtain Shield Airbag:

i.

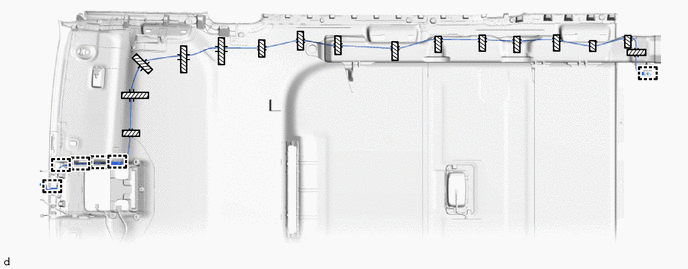

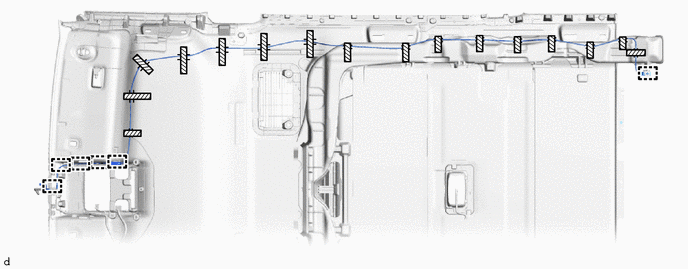

0,0 0,0 false

Tape

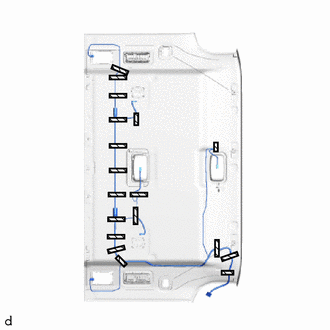

Remove each piece of tape and the No. 3 roof wire from the rear roof headlining.

e.

w/o Curtain Shield Airbag:

i.

0,0 0,0 false

Tape

Detach the clamp.

ii.

Remove each piece of tape and the No. 3 roof wire from the rear roof headlining.

f.

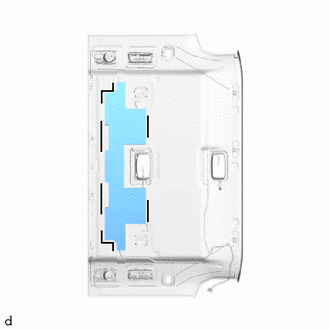

Remove the butyl tape remaining on the rear roof headlining.

63610 6.REMOVE NO. 1 AIR OUTLET REGISTER ASSEMBLY

a.

Detach the claw and guide and remove the No. 1 air outlet register assembly.

63620 7.REMOVE NO. 2 AIR OUTLET REGISTER ASSEMBLY

63415D 8.REMOVE CENTER ROOF SPEAKER GRILLE

HINT:

Use the same procedure for both center roof speaker grilles.

a.

for 6 Speakers:

i.

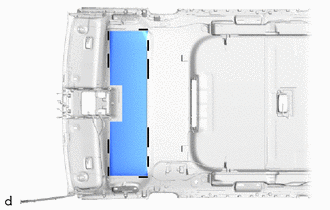

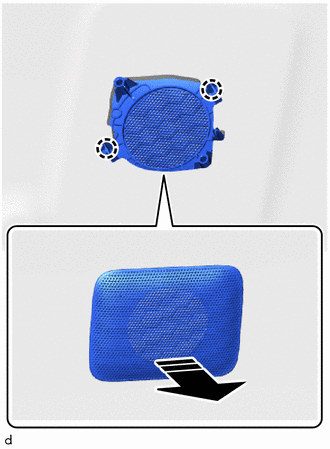

0,0 0,0 false

Remove in this Direction

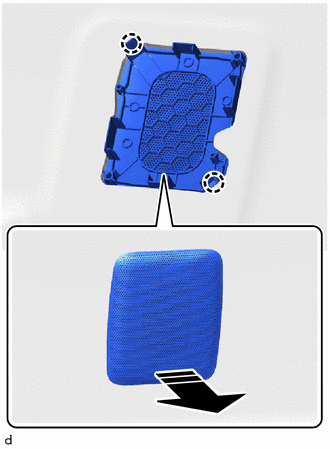

Detach the claw and remove the center roof speaker grille.

b.

for 12 Speakers:

i.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the center roof speaker grille.

81340 9.REMOVE VANITY LIGHT ASSEMBLY

HINT:

Use the same procedure for both vanity light assemblies.

a.

1.438,0.76 1.573,0.458 true 1.073,1.688 1.208,1.25 true 0.583,0.615 0.979,0.896 true 2.813,1.552 3.073,1.667 true 0.417,0.5 0.635,0.677 0.219,0.177 10 true *1 0.958,1.698 1.219,1.917 0.26,0.219 10 true *a 3.052,1.583 3.271,1.792 0.219,0.208 10 true *b 1.51,0.24 1.76,0.406 0.25,0.167 10 true *a

*1	Bulb Holder
*a	Claw A
*b	Claw B

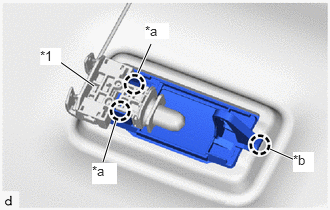

Detach claw A and detach the bulb holder from the vanity light assembly.

b.

Detach claw B and remove the vanity light assembly.

867C1 10.REMOVE MIRROR CAMERA WIRE (w/ Digital Inner Mirror)

a.

Remove the silencer pad.

b.

w/ Rear Cooler:

i.

Detach the clamp.

ii.

Remove the each piece of tape and mirror camera wire.

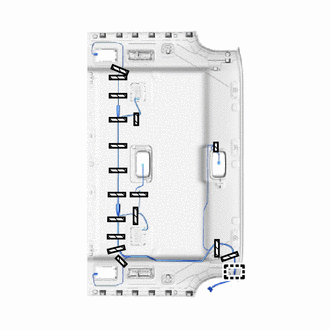

0,0 0,0 false

Tape

-

-

c.

w/ Rear Air Conditioning System:

i.

w/ Air Duct Packing:

Remove the 3 air duct packings.

ii.

Detach the clamp.

iii.

Remove the each piece of tape and mirror camera wire.

0,0 0,0 false

Tape

-

-

11.REMOVE WASHER HOSE ASSEMBLY

a.

w/ Rear Cooler:

i.

Detach the clamp.

ii.

Remove the each piece of tape and washer hose assembly.

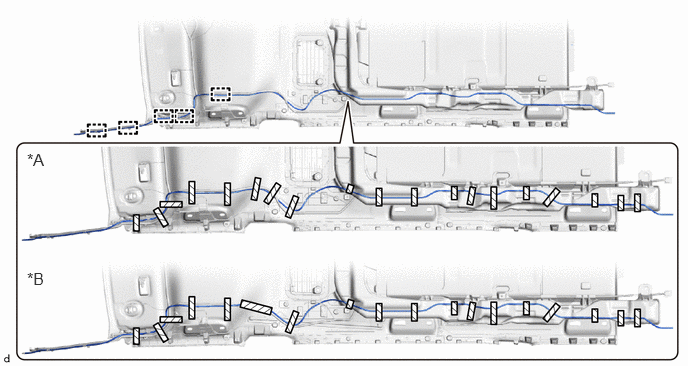

0.281,1.563 0.656,1.802 0.375,0.24 12 false *A 0.281,2.802 0.656,3.042 0.375,0.24 12 false *B

*A	w/o Curtain Shield Airbag	*B	w/ Curtain Shield Airbag
	Tape	-	-

b.

w/ Rear Air Conditioning System:

i.

w/ Air Duct Packing:

Remove the 3 air duct packings.

ii.

Detach the clamp.

iii.

Remove the each piece of tape and washer hose assembly.

0,0 0,0 false

Tape

-

-

81360T 12.REMOVE SPOT LIGHT ASSEMBLY (for Front Side)

84010A 13.REMOVE INTEGRATION CONTROL AND PANEL ASSEMBLY

87202F 14.REMOVE REAR AIR DUCT SUB-ASSEMBLY

88051C 15.REMOVE NO. 2 ION GENERATOR SUB-ASSEMBLY

86160Q 16.REMOVE ROOF SPEAKER ASSEMBLY (for 12 Speakers)

82172 17.REMOVE NO. 2 ROOF WIRE

a.

Remove the 2 silencer pads.

b.

0,0 0,0 false

Remove in this Direction

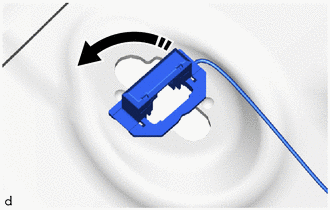

Turn the visor connectors approximately 90° counterclockwise and remove them from the roof headlining.

c.

w/ Rear Cooler:

i.

Detach each clamp.

ii.

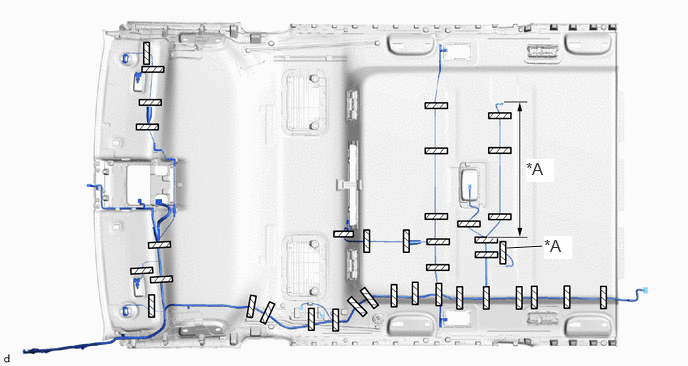

Remove each piece of tape and No. 2 roof wire from the roof headlining.

5.281,2.583 5.646,2.563 true 5.479,1.656 5.771,1.896 0.292,0.24 12 true *A 5.667,2.458 5.958,2.698 0.292,0.24 12 true *A

*A	for 12 Speakers	-	-
	Tape	-	-

iii.

Remove the butyl tape remaining on the roof headlining.

d.

w/ Rear Air Conditioning System:

i.

Detach each clamp.

ii.

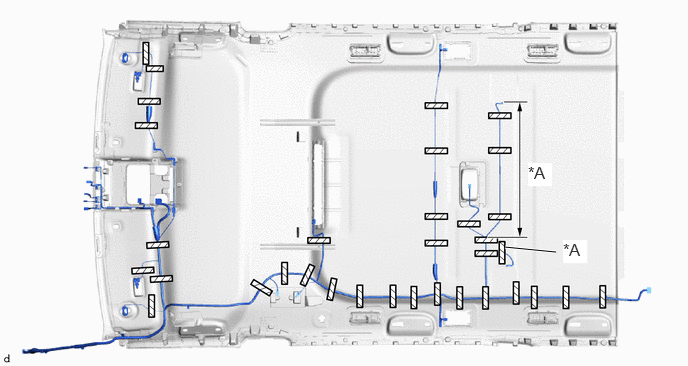

Remove each piece of tape and No. 2 roof wire from the roof headlining.

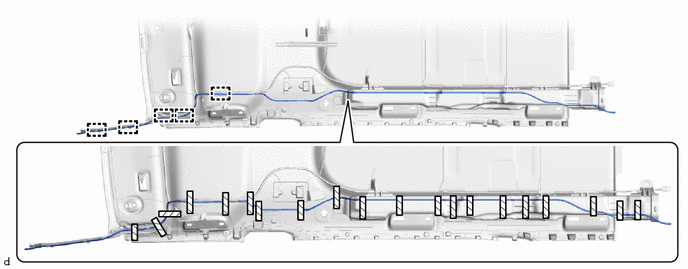

5.26,2.573 5.792,2.625 true 5.5,1.698 5.75,1.938 0.25,0.24 12 true *A 5.865,2.5 6.115,2.74 0.25,0.24 12 true *A

*A	for 12 Speakers	-	-
	Tape	-	-

iii.

Remove the butyl tape remaining on the roof headlining.

63610H 18.REMOVE NO. 3 AIR OUTLET REGISTER ASSEMBLY (w/ Rear Cooler)

63640A 19.REMOVE NO. 4 AIR OUTLET REGISTER ASSEMBLY (w/ Rear Cooler)

63388A 20.REMOVE ROOF HEADLINING HOLDER COVER

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

b.

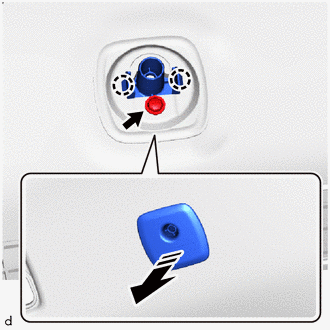

Detach the claw and remove the roof headlining holder cover.

63416B 21.REMOVE ROOF SPEAKER GRILLE LH (for 12 Speakers)

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and remove the roof speaker grille LH.

63415B 22.REMOVE ROOF SPEAKER GRILLE RH (for 12 Speakers)

65992C 23.REMOVE REAR WINDOW CURTAIN LH (w/ Rear Sunshade)

65991E 24.REMOVE REAR WINDOW CURTAIN RH (w/ Rear Sunshade)

81080V 25.REMOVE NO. 2 INTERIOR ILLUMINATION LIGHT ASSEMBLY

81080M 26.REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

88625C 27.REMOVE COOLER THERMISTOR

85532D 28.REMOVE NO. 3 USB CHARGER SOCKET

71397H 29.REMOVE REAR SEAT STOPPER LH

71397G 30.REMOVE REAR SEAT STOPPER RH

62821B 31.REMOVE ROOM VENTILATION GRILLE (w/ Rear Cooler)

HINT:

Use the same procedure for room ventilation grille.

a.

Detach the claw and guide and remove the room ventilation grille.

62931F 32.REMOVE QUARTER VENT DUCT (w/ Rear Air Conditioning System)

a.

Detach the claw and remove the quarter vent duct.

62932F 33.REMOVE NO. 2 QUARTER VENT DUCT (w/ Rear Air Conditioning System)

a.

Detach the claw and remove the No. 2 quarter vent duct.

62933H 34.REMOVE QUARTER PANEL AIR INLET DUCT (w/ Rear Air Conditioning System)

a.

Detach the claw and remove the quarter panel air inlet duct.

62821B 35.REMOVE ROOM VENTILATION GRILLE (w/ Rear Air Conditioning System)

a.

Detach the claw and remove the room ventilation grille.

65988A 36.REMOVE SUNSHADE HOOK (w/ Rear Sunshade)

HINT:

Use the same procedure for both sunshade hooks.

a.

Detach the claw and remove the sunshade hook.
