INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.



PROCEDURE

Hide 55449E 1.INSTALL SWITCH BASE (for RHD)

a.
B528182

Attach the claw to install the switch base.


Hide 58849 2.INSTALL NO. 2 CONSOLE BOX HOLE COVER (w/o Console Box)

a.
B528188

Attach the claw to install the No. 2 console box hole cover.


Hide 3.INSTALL CONSOLE BOX CUSHION (w/ Console Box)

a.
B528187

Install the 2 console box cushions.


Hide 58908A 4.INSTALL CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Console Box)

a.
B528181

Install the console compartment door lock sub-assembly with the 2 screws.


Hide 81080K 5.INSTALL CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Console Box)

a.
B528211

Attach the claw to install the console box illumination light assembly.


Hide 58905 6.INSTALL CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY (w/ Console Box)

a.

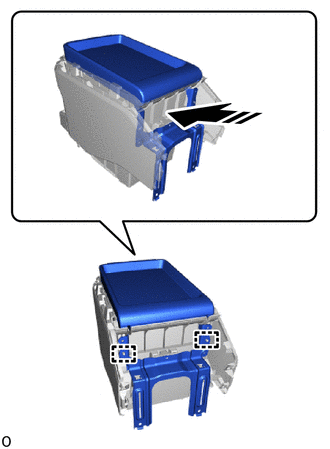

B537630C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide to temporarily install the console compartment door sub-assembly as shown in the illustration.


b.
B528178

Install the 4 screws.


Hide 58821A 7.INSTALL CONSOLE PANEL (w/ Console Box)

a.

Remove the protective tape.


b.

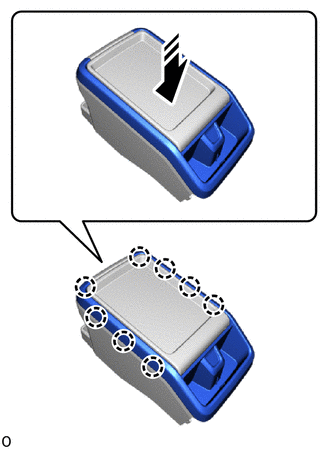

B537628C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw to install a new console panel as shown in the illustration.


Hide 55633A 8.INSTALL NO. 1 INSTRUMENT PANEL CUP HOLDER SUPPORT (w/ Console Box)

a.
B528176

Attach the guide to install the No. 1 instrument panel cup holder support.
