INTERIOR PANELS / TRIM  FRONT CONSOLE BOX  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RHD and LHD vehicles.

·

The procedure listed below is for the LHD vehicles.



PROCEDURE

Hide 55633A 1.REMOVE NO. 1 INSTRUMENT PANEL CUP HOLDER SUPPORT (w/ Console Box)

a.
B528176

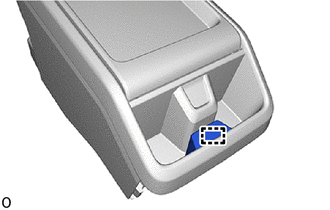

Detach the guide and remove the No. 1 instrument panel cup holder support.


Hide 58821A 2.REMOVE CONSOLE PANEL (w/ Console Box)

a.
B537664C01
0,0 0,0 false
V100155

Protective Tape

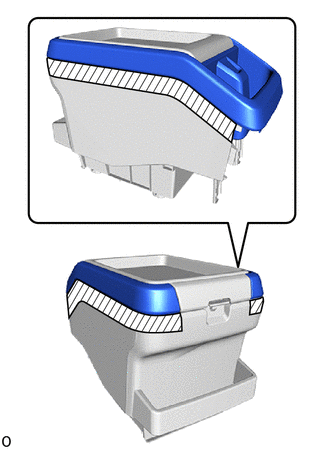

Apply protective tape around the console panel.


b.
B537666C01
0,0 0,0 false
V113147

Remove in this Direction

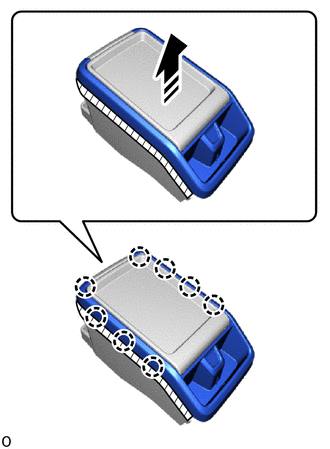

Detach the claw and remove the console panel as shown in the illustration.


Hide 58905 3.REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY (w/ Console Box)

a.
B528178

Remove the 4 screws.


b.
B537629C01
0,0 0,0 false
V113147

Remove in this Direction

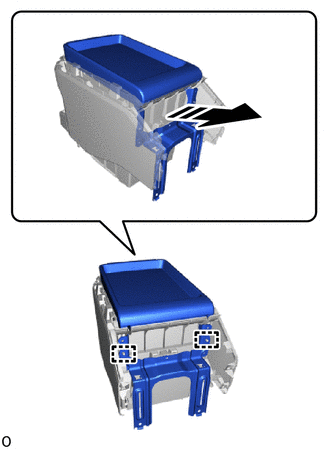

Detach the guide and remove the console compartment door sub-assembly as shown in the illustration.


Hide 81080K 4.REMOVE CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY (w/ Console Box)

a.
B528211

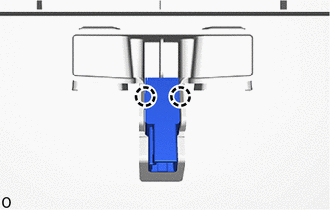

Detach the claw and remove the console box illumination light assembly.


Hide 58908A 5.REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Console Box)

a.
B528181

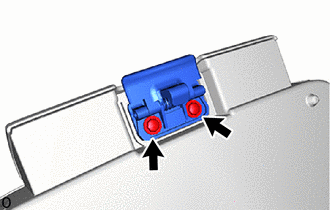

Remove the 2 screws and console compartment door lock sub-assembly.


Hide 6.REMOVE CONSOLE BOX CUSHION (w/ Console Box)

a.
B528187

Remove the 2 console box cushions.


Hide 58849 7.REMOVE NO. 2 CONSOLE BOX HOLE COVER (w/o Console Box)

a.
B528188

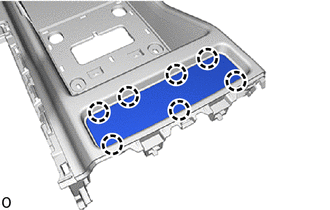

Detach the claw and remove the No. 2 console box hole cover.


Hide 55449E 8.REMOVE SWITCH BASE (for RHD)

a.
B528182

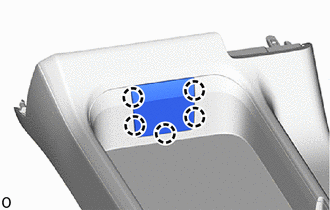

Detach the claw and remove the switch base.
