RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0396429 REAR DOOR SPEAKER A

AUDIO / VIDEO REAR DOOR SPEAKER INSTALLATION

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

Hide Display 86160Y 1.INSTALL REAR NO. 2 SPEAKER ASSEMBLY (for 12 Speakers)

Attach the claw to install the rear No. 2 speaker assembly.

Hide Display 86160B 2.INSTALL REAR SPEAKER ASSEMBLY

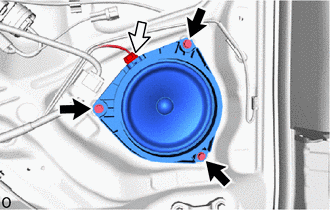

Attach the guide and claw to temporarily install the rear speaker assembly.

0,0 0,0 false

	Screw
	Connector

Install the 3 screws.

Connect the connector.

Hide Display 67690C 3.INSTALL SLIDE DOOR TRIM BOARD ASSEMBLY LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZD_02_0038,202310,999999,_59,_078503,_0397542,RM100000002EPZB_02_0038,

Hide Display 81380H 4.INSTALL STEP LIGHT ASSEMBLY

Hide Display 67488A 5.INSTALL REAR DOOR REAR GUIDE BRACKET GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZD_02_0042,202310,999999,_59,_078503,_0397542,RM100000002EPZB_02_0042,

Hide Display 67668A 6.INSTALL SLIDE DOOR WINDOW GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZD_02_0046,202310,999999,_59,_078503,_0397542,RM100000002EPZB_02_0046,

Hide Display 67693B 7.INSTALL SLIDE DOOR TRIM UPPER COVER LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>REASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZD_02_0044,202310,999999,_59,_078503,_0397542,RM100000002EPZB_02_0044,

Hide Display 65988A 8.INSTALL SUNSHADE HOOK (w/ Rear Sunshade)
