RM35X0E _56 Audio / Visual / Telematics _078377 AUDIO / VIDEO _0396429 REAR DOOR SPEAKER A

AUDIO / VIDEO REAR DOOR SPEAKER REMOVAL

CAUTION / NOTICE / HINT

HINT:: ·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.

PROCEDURE

Hide Display 65988A 1.REMOVE SUNSHADE HOOK (w/ Rear Sunshade)

Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0055,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0055,

Hide Display 67693B 2.REMOVE SLIDE DOOR TRIM UPPER COVER LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0056,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0056,

Hide Display 67668A 3.REMOVE SLIDE DOOR WINDOW GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0027,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0027,

Hide Display 67488A 4.REMOVE REAR DOOR REAR GUIDE BRACKET GARNISH LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0027,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0027,

Hide Display 81380H 5.REMOVE STEP LIGHT ASSEMBLY

Click hereVehicle Interior>LIGHTING (INT)>STEP LIGHT ASSEMBLY>REMOVAL201906,999999,_58,_078381,_0399284,RM100000001IZVZ_02_0001,

Hide Display 67690C 6.REMOVE SLIDE DOOR TRIM BOARD ASSEMBLY LH

HINT:: Use the same procedure described for the RH side.; Click hereVehicle Exterior>DOOR / HATCH>SLIDE DOOR (for Wagon)>DISASSEMBLY201906,202310,_59,_078503,_0397542,RM100000001IPZB_02_0010,202310,999999,_59,_078503,_0397542,RM100000002EPZ9_02_0010,

Hide Display 86160B 7.REMOVE REAR SPEAKER ASSEMBLY

a.

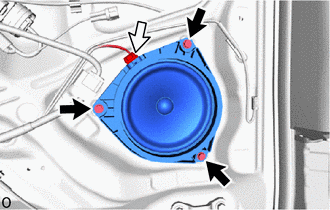

E417808C01

0,0 0,0 false

	Screw
	Connector

Disconnect the connector.

b.

Remove the 3 screws.

c.

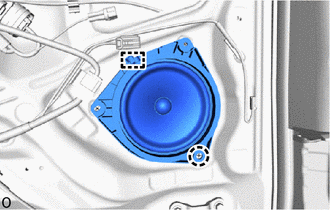

E417809

Detach the claw and guide and remove the rear speaker assembly.

Hide Display 86160Y 8.REMOVE REAR NO. 2 SPEAKER ASSEMBLY (for 12 Speakers)

a.

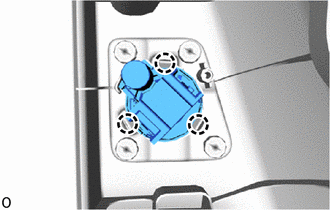

E417810

Detach the claw and remove the rear No. 2 speaker assembly.
