SEAT  REAR SEAT ASSEMBLY(for Power Captain Seat)  DISASSEMBLY

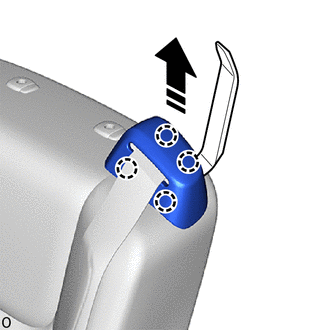

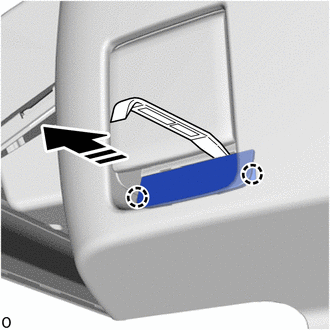

72526J 1.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

a.

0,0 0,0 false

	Remove in this Direction
	Protective Tape

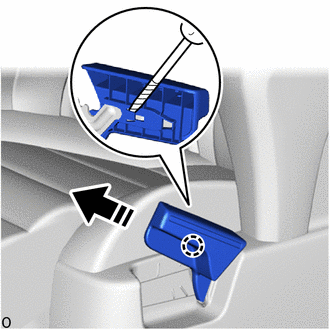

Using a thin-bladed screwdriver, detach the claw and remove the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.

72345Y 2.REMOVE LH SEAT NO. 1 SEAT NO. 1 STAND FRAME CAP

a.

0,0 0,0 false

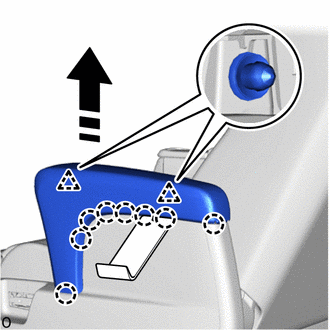

Remove in this Direction

Using moulding remover A, detach the claw and guide and remove the LH seat No. 1 seat No. 1 stand frame cap as shown in the illustration.

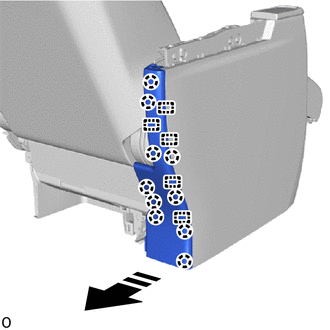

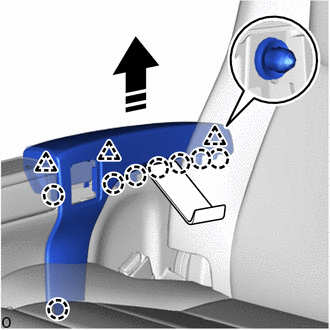

72890C 3.REMOVE LH SEAT NO. 1 SEAT ARMREST ASSEMBLY

a.

0,0 0,0 false

Remove in this Direction

Using moulding remover D, detach the claw and clip and remove the LH seat No. 1 seat armrest assembly as shown in the illustration.

71324R 4.REMOVE REAR NO. 1 SEAT CUSHION LH (for First Row)

a.

Remove the screw and rear No. 1 seat cushion LH.

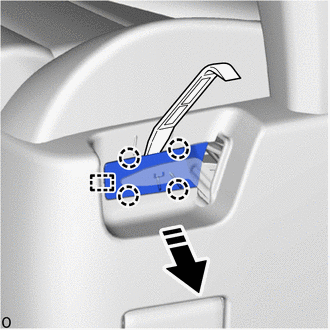

71849L 5.REMOVE NO. 1 SEAT ADJUSTER COVER CAP LH

a.

for First Row:

i.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the No. 1 seat adjuster cover cap LH as shown in the illustration.

b.

for Second Row:

i.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the No. 1 seat adjuster cover cap LH as shown in the illustration.

72C45 6.REMOVE LH SEAT NO. 1 SEAT NO. 3 STAND FRAME CAP (for First Row)

a.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the claw and remove the LH seat No. 1 seat No. 3 stand frame cap as shown in the illustration.

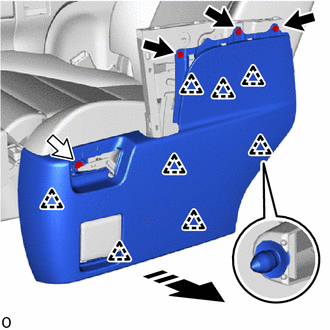

71844J 7.REMOVE REAR NO. 1 SEAT NO. 2 RECLINING COVER LH

a.

0,0 0,0 false

	Bolt
	Screw
	Remove in this Direction

Remove the screw and 3 bolts.

b.

Detach the clip and remove the rear No. 1 seat No. 2 reclining cover LH as shown in the illustration.

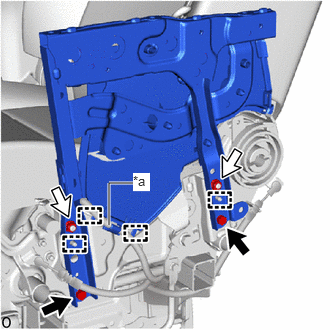

72804E 8.REMOVE LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY LH

a.

1.135,2.344 1.135,1.906 1.135,1.906 1.385,1.906 true 1.385,1.802 1.563,1.99 0.177,0.188 10 true *a

*a	Location Tape (Blue)
	Bolt
	Nut

Remove the 2 nuts and 2 bolts.

b.

Detach the cable from the LH seat rear No. 1 seat armrest frame sub-assembly LH.

c.

Detach the guide and remove the LH seat rear No. 1 seat armrest frame sub-assembly LH.

HINT:

Remove the LH seat rear No. 1 seat armrest frame sub-assembly LH together with the LH seat reclining adjuster inside cover LH.

71H76P 9.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

Remove the 3 bolts.

b.

Detach the clip and remove the LH seat reclining adjuster inside cover LH.

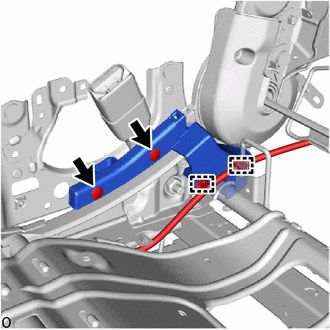

72046F 10.REMOVE LH SEAT NO. 1 SEAT NO. 1 TRACK COVER SUB-ASSEMBLY (for First Row)

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the hook as shown in the illustration.

c.

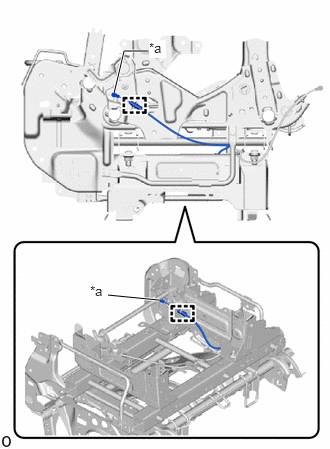

1.604,0.823 2.469,0.667 true 2.5,0.552 2.813,0.708 0.313,0.156 10 false *a

*a

Cable End

Detach the cable clamp and cable end and remove the LH seat No. 1 seat No. 1 track cover sub-assembly.

78060C 11.REMOVE NO. 1 SEAT SIDE TABLE ASSEMBLY (for First Row, RH Side)

a.

Remove the 2 nuts and No. 1 seat side table assembly.

84923 12.REMOVE REAR POWER SEAT SWITCH

72840K 13.REMOVE REAR NO. 1 SEAT ARMREST ASSEMBLY LH

a.

0,0 0,0 false

Remove in this Direction

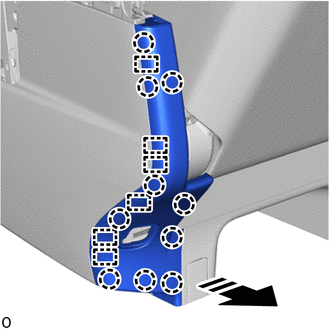

Using moulding remover D, detach the claw and clip and remove the rear No. 1 seat armrest assembly LH as shown in the illustration.

71848W 14.REMOVE LH SEAT NO. 1 SEAT ADJUSTER COVER CAP

a.

for First Row:

i.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the LH seat No. 1 seat adjuster cover cap as shown in the illustration.

b.

for Second Row:

i.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the LH seat No. 1 seat adjuster cover cap as shown in the illustration.

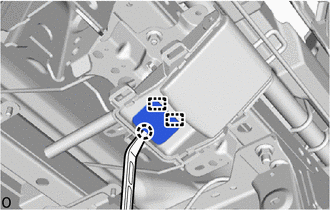

71H74 15.REMOVE REAR SEAT LOWER CUSHION SHIELD LH (for Second Row)

a.

0,0 0,0 false

Remove in this Direction

Detach the claw and guide and remove the rear seat lower cushion shield LH as shown in the illustration.

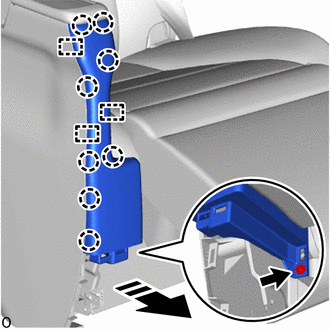

71866D 16.REMOVE LH SEAT REAR NO. 1 SEAT COVER BEZEL

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

b.

Detach the claw and guide and remove the LH seat rear No. 1 seat cover bezel as shown in the illustration.

71826C 17.REMOVE REAR SEAT CUSHION MOULDING LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 bolts.

b.

Detach the clip and remove the rear seat cushion moulding LH as shown in the illustration.

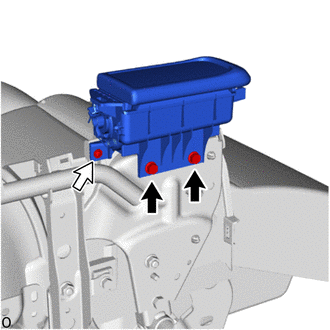

66990E 18.REMOVE REAR NO. 1 SEAT CUP HOLDER ASSEMBLY LH

a.

0,0 0,0 false

	Bolt
	Screw

Remove the screw, 2 bolts and rear No. 1 seat cup holder assembly LH.

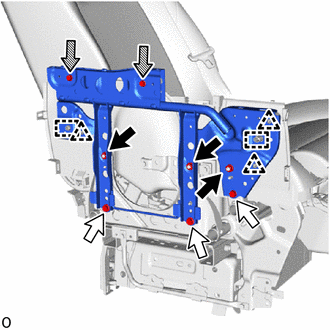

72803H 19.REMOVE LH SEAT REAR NO. 1 SEAT ARMREST FRAME SUB-ASSEMBLY RH

a.

0,0 0,0 false

	Nut
	Bolt A
	Bolt B

Remove the 2 bolts B.

b.

Remove the 3 bolts A and 3 nuts.

c.

Detach the clip and guide and remove the LH seat rear No. 1 seat armrest frame sub-assembly RH.

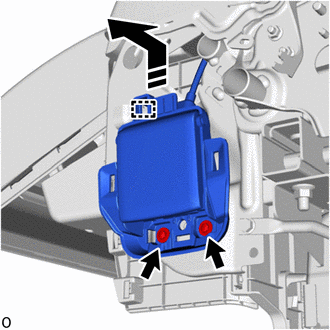

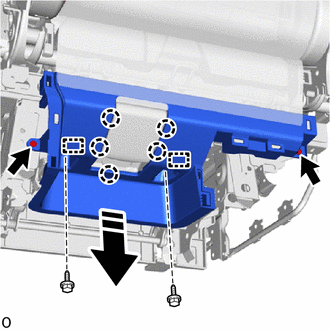

71H75R 20.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 bolts.

b.

Detach the claw and remove the LH seat reclining adjuster inside cover RH as shown in the illustration.

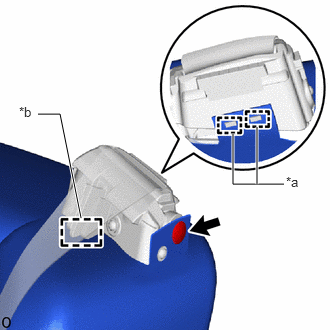

73375 21.REMOVE REAR SEAT SHOULDER BELT COVER LH

a.

0,0 0,0 false

Remove in this Direction

Using moulding remover A, detach the claw as shown in the illustration.

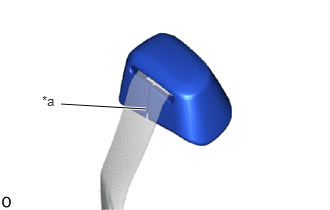

b.

0.635,1.083 1.521,1.135 true 0.438,0.969 0.615,1.167 0.177,0.198 10 false *a

*a

Slit

Pass the belt through the slit and remove the rear seat shoulder belt cover LH.

72345Z 22.REMOVE LH SEAT NO. 1 SEAT NO. 2 STAND FRAME CAP

a.

Using moulding remover A, detach the claw and remove the LH seat No. 1 seat No. 2 stand frame cap.

72046G 23.REMOVE LH SEAT NO. 1 SEAT NO. 2 TRACK COVER SUB-ASSEMBLY

a.

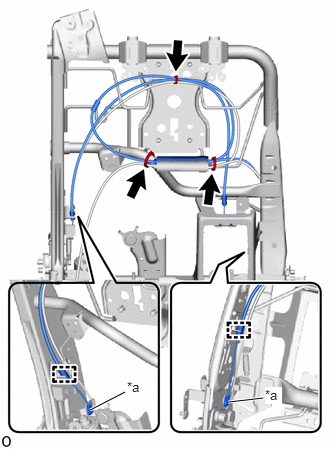

Remove the 2 screws.

b.

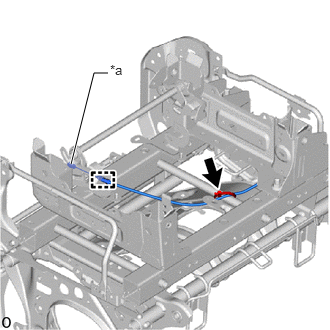

1.875,0.833 2.656,0.969 true 2.677,0.865 2.854,1.052 0.177,0.188 10 true *a

*a

Cable End

Detach the cable clamp and cable end and remove the LH seat No. 1 seat No. 2 track cover sub-assembly.

73390 24.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH (ANCHOR)

25.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.

Remove the 3 hog rings.

b.

Open the 2 fasteners.

c.

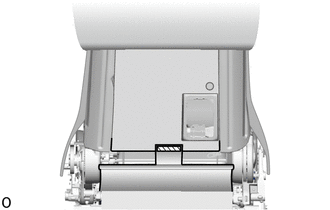

0,0 0,0 false

Fastening Tape

Detach the fastening tape.

d.

w/ Seat Heater System:

i.

Disconnect the connector.

e.

Detach the claw and remove the 2 rear seat headrest supports.

f.

0.844,2.271 0.625,1.188 0.625,1.188 0.396,1.188 true 2.958,1.917 2.427,1.917 2.427,1.917 2.427,1.385 true 2.677,1.917 2.677,1.323 true 2.979,1.813 3.292,1.969 0.313,0.156 10 false *a 0.198,1.083 0.375,1.271 0.177,0.188 10 false *b

*a	Hook
*b	Guide

Remove the clip and detach the hook.

g.

Detach the guide and remove the separate type rear seatback cover with pad.

NOTICE:

Be careful not to damage the separate type rear seatback cover with pad.

79014B 26.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

a.

Remove the 14 hog rings and No. 1 seatback cover sub-assembly LH.

27.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

87530 28.REMOVE NO. 1 SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

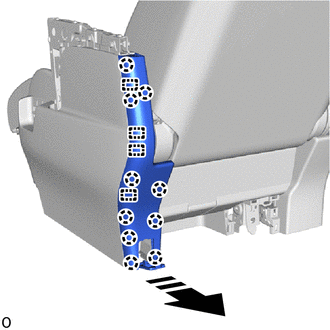

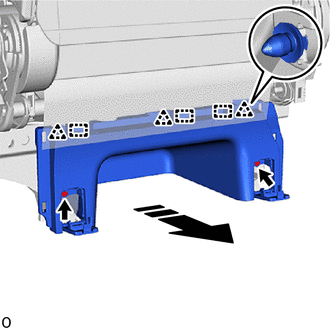

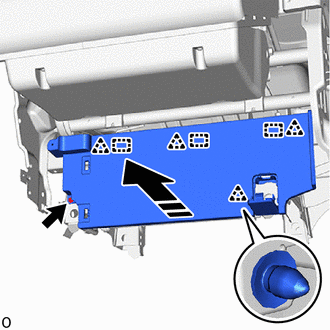

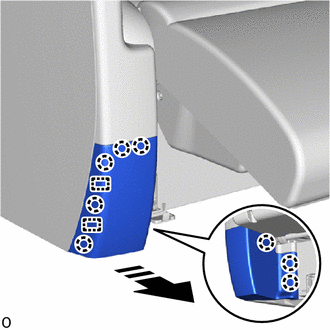

79959F 29.REMOVE NO. 1 SEAT LEG COVER LH

a.

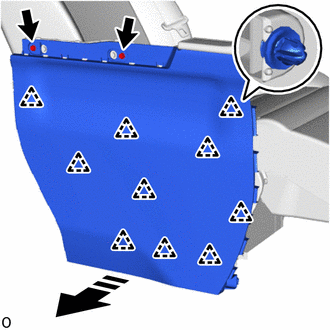

for First Row:

i.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

ii.

Detach the clip and guide and remove the No. 1 seat leg cover LH as shown in the illustration.

b.

for Second Row:

i.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

ii.

Detach the claw and guide and remove the rear seat leg cover as shown in the illustration.

72345R 30.REMOVE NO. 2 SEAT STAND FRAME CAP LH (for Second Row)

a.

Using moulding remover A, detach the claw and guide and remove the No. 2 seat stand frame cap LH.

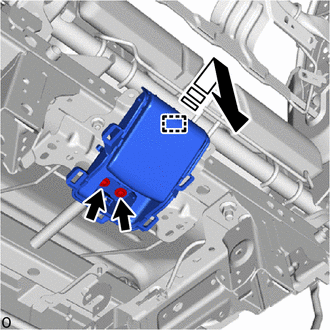

72690G 31.REMOVE NO. 2 SEAT CUSHION LOCK RELEASE LEVER ASSEMBLY LH (for Second Row)

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the hook as shown in the illustration.

c.

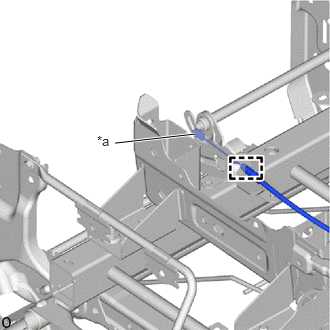

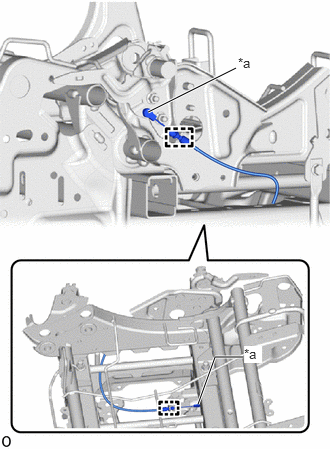

0.521,0.49 0.219,1.125 true 0.104,1.135 0.281,1.333 0.177,0.198 10 false *a

*a

Cable End

Detach the cable clamp and cable end and remove the No. 2 seat cushion lock release lever assembly LH.

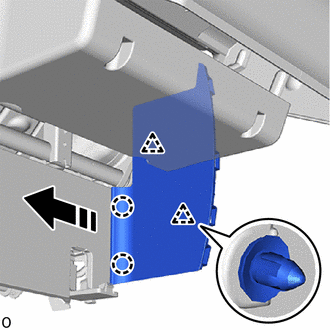

71H76N 32.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER

a.

0,0 0,0 false

Remove in this Direction

Detach the clip and claw and remove the LH seat reclining adjuster inside cover as shown in the illustration.

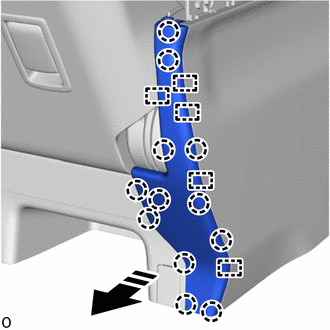

79968W 33.REMOVE LH SEAT REAR NO. 1 SEAT LEG SIDE COVER

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

b.

Detach the clip and guide and remove the LH seat rear No. 1 seat leg side cover as shown in the illustration.

85861 34.REMOVE SEAT CLIMATE CONTROL ECU (w/ Seat Heater System)

35.REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

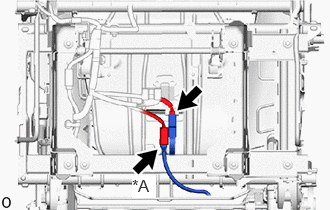

a.

w/ Seat Heater System:

i.

1.375,1.833 1.625,2.063 0.25,0.229 12 true *A

*A	w/ Seat Heater System

Disconnect the connector of seat heater.

b.

Disconnect the connector of occupant detection sensor.

c.

Detach the hook and remove the 2 clips.

d.

Pass the cable through the pocket.

e.

0,0 0,0 false

Protective Tape

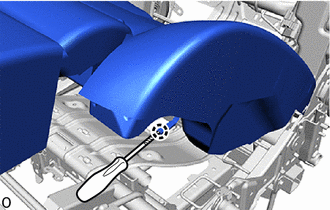

Using a thin-bladed screwdriver, detach the claw and remove the connector of the occupant detection sensor.

HINT:

Tape the thin-bladed screwdriver tip before use.

f.

Remove the separate type rear seat cushion cover with pad.

79012A 36.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

Remove the 6 hog rings.

b.

0,0 0,0 false

Fastening Tape

Remove the 18 hog rings.

c.

Detach the fastening tape and remove the No. 1 seat cushion cover sub-assembly LH.

37.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

87510Y 38.REMOVE REAR NO. 1 SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

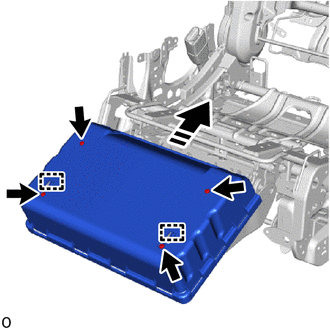

78987B 39.REMOVE REAR NO. 1 SEAT NO. 1 FOOTREST COVER LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 4 screws.

b.

Detach the hook and remove the rear No. 1 seat No. 1 footrest cover LH as shown in the illustration.

78656K 40.REMOVE REAR SEAT LEGREST COVER LH

a.

Remove the 4 screws and rear seat legrest cover LH.

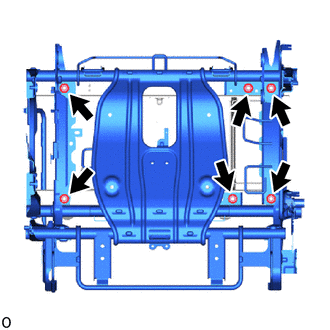

72075C 41.REMOVE LH SEAT RECLINING ADJUSTER ARM SUB-ASSEMBLY

a.

Disconnect the connector.

b.

Detach the clamp.

c.

Remove the 4 bolts and LH seat reclining adjuster arm sub-assembly.

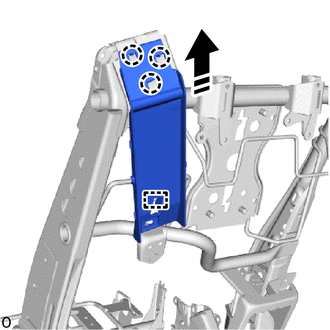

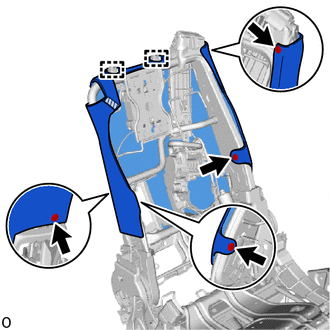

71695L 42.REMOVE NO. 1 SEATBACK PROTECTOR LH

a.

0,0 0,0 false

Fastening Tape

Remove the 4 clips.

b.

Detach the fastening tape.

c.

Detach the guide and remove the No. 1 seatback protector LH.

71499M 43.REMOVE NO. 1 SEATBACK SPRING DAMPER LH

a.

Remove the 2 nuts and No. 1 seatback spring damper LH.

71499V 44.REMOVE NO. 1 SEATBACK NO. 2 SPRING DAMPER LH

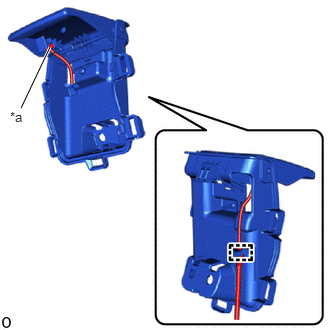

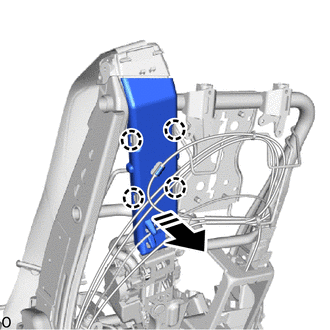

73373W 45.REMOVE NO. 1 SEAT NO. 2 SHOULDER BELT COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the cables from the No. 1 seat No. 2 shoulder belt cover LH.

b.

Detach the claw and remove the No. 1 seat No. 2 shoulder belt cover LH as shown in the illustration.

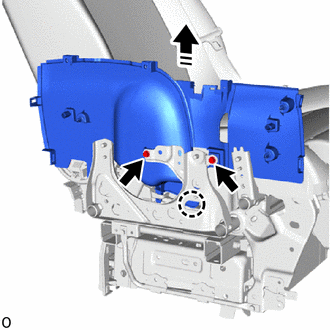

71879J 46.REMOVE REAR NO. 1 SEAT INNER RECLINING COVER LH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the claw and remove the rear No. 1 seat inner reclining cover LH.

73390 47.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY LH

73373X 48.REMOVE NO. 1 SEAT NO. 1 SHOULDER BELT COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the claw.

b.

Detach the hook and remove the No. 1 seat No. 1 shoulder belt cover LH as shown in the illustration.

71H76F 49.REMOVE REAR NO. 1 LH SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

0,0 0,0 false

Remove in this Direction

Detach the clip and remove the rear No. 1 LH seat reclining adjuster inside cover LH as shown in the illustration.

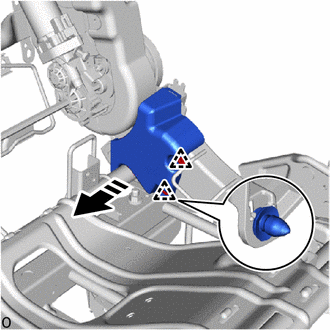

71H75F 50.REMOVE REAR NO. 1 LH SEAT RECLINING ADJUSTER INSIDE COVER RH

a.

0,0 0,0 false

Remove in this Direction

Detach the clamp.

b.

Remove the 2 clips and rear No. 1 LH seat reclining adjuster inside cover RH.

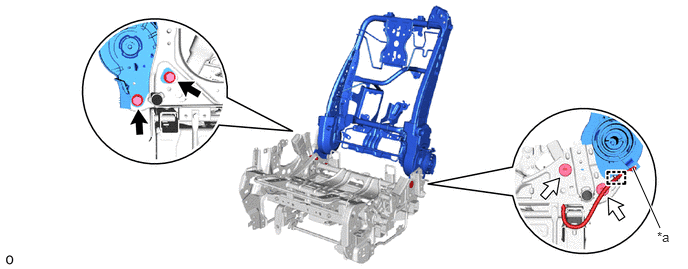

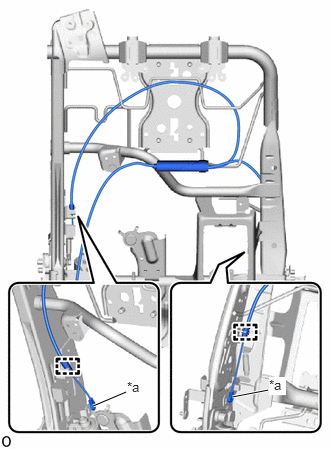

79104A 51.REMOVE NO. 1 SEATBACK FRAME SUB-ASSEMBLY LH

a.

Detach the clamp and disconnect the connector.

b.

Detach the cable clamp and cable end.

6.875,2.375 6.594,1.75 true 6.844,2.385 7.052,2.583 0.208,0.198 10 false *a

*a	Cable End	-	-
	Bolt A		Bolt B

c.

Remove the 2 bolts A.

d.

Using a T50 "TORX" socket wrench, remove the 2 bolts B and No. 1 seatback frame sub-assembly LH.

82168 52.REMOVE NO. 2 SEAT WIRE

a.

Disconnect the connector.

b.

Detach the clamp and remove the No. 2 seat wire.

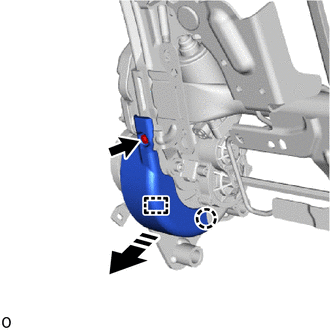

72554F 53.REMOVE NO. 2 RECLINING COVER PROTECTOR LH

a.

0,0 0,0 false

Remove in this Direction

Remove the screw.

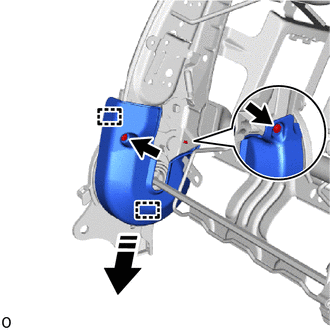

b.

Detach the claw and guide and remove the No. 2 reclining cover protector LH.

72554E 54.REMOVE NO. 1 RECLINING COVER PROTECTOR LH

a.

Remove the clip and No. 1 reclining cover protector LH.

71H76S 55.REMOVE LH SEATBACK RECLINING ADJUSTER INSIDE COVER LH

a.

Remove the 2 clips and LH seatback reclining adjuster inside cover LH.

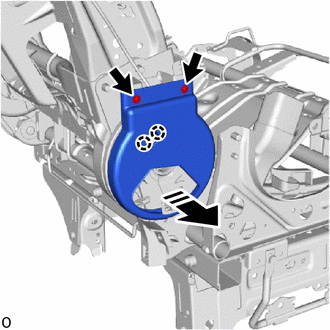

71875X 56.REMOVE RECLINING ADJUSTER INSIDE COVER RH

a.

0,0 0,0 false

Remove in this Direction

Remove the 2 screws.

b.

Detach the guide and remove the reclining adjuster inside cover RH as shown in the illustration.

71875Y 57.REMOVE LH SEATBACK RECLINING ADJUSTER INSIDE COVER RH

a.

Remove the screw.

b.

Detach the guide and remove the LH seatback reclining adjuster inside cover RH.

73380D 58.REMOVE REAR SEAT INNER BELT ASSEMBLY

72210W 59.REMOVE NO. 1 SEAT NO. 2 TRACK CONTROL CABLE ASSEMBLY LH (for First Row)

a.

2.375,4.188 2.74,4.146 true 0.938,4.271 1.302,4.083 true 2.76,4.031 2.938,4.208 0.177,0.177 10 true *a 1.323,3.948 1.531,4.135 0.208,0.188 10 false *a

*a

Cable End

Remove the 3 cable ties.

b.

Detach the cable clamp and cable end and remove the No. 1 seat No. 2 track control cable assembly LH.

72210V 60.REMOVE NO. 1 SEAT NO. 1 TRACK CONTROL CABLE ASSEMBLY LH (for First Row)

a.

2.417,4.135 2.792,4.063 true 0.969,4.229 1.313,4.083 true 2.802,3.927 2.979,4.115 0.177,0.188 10 true *a 1.323,3.948 1.531,4.156 0.208,0.208 10 false *a

*a

Cable End

Detach the cable clamp and cable end and remove the No. 1 seat No. 1 track control cable assembly LH.

72210R 61.REMOVE NO. 1 SEAT SLIDE CABLE ASSEMBLY LH

a.

for First Row:

i.

1.188,0.969 1.292,0.531 1.292,0.531 1.542,0.531 true 1.125,3.073 1.656,3.125 true 1.552,0.417 1.729,0.604 0.177,0.188 10 true *a 0.938,2.948 1.115,3.156 0.177,0.208 10 false *a

*a

Cable End

Detach the cable clamp and cable end and remove the No. 1 seat slide cable assembly LH.

b.

for Second Row:

i.

1.542,1.167 2.458,0.708 true 2.063,4.208 2.24,3.719 2.24,3.719 2.531,3.719 true 2.479,0.573 2.792,0.729 0.313,0.156 10 false *a 2.542,3.604 2.729,3.781 0.188,0.177 10 true *a

*a

Cable End

Detach the cable clamp and cable end and remove the No. 1 seat slide cable assembly LH.

72210U 62.REMOVE NO. 1 SEAT TRACK CONTROL CABLE ASSEMBLY LH

a.

for First Row:

i.

1.125,0.76 0.979,0.76 0.979,0.76 0.74,1.708 true 1.146,0.646 1.333,0.833 0.188,0.188 10 false *a

*a

Cable End

Remove the cable tie.

ii.

Detach the cable clamp and cable end and remove the No. 1 seat track control cable assembly LH.

b.

for Second Row:

i.

1.198,1.49 2.031,1.396 true 1.01,1.385 1.188,1.583 0.177,0.198 10 false *a

*a

Cable End

Detach the cable clamp and cable end and remove the No. 1 seat track control cable assembly LH.

82194 63.REMOVE REAR SEAT WIRE LH

82195B 64.REMOVE REAR SEAT NO. 4 WIRE RH

79102B 65.REMOVE NO. 1 SEAT CUSHION FRAME SUB-ASSEMBLY LH

a.

Remove the 6 nuts and No. 1 seat cushion frame sub-assembly LH.
