LIGHTING (EXT) HEIGHT CONTROL SENSOR INSPECTION
PROCEDURE
89408C
1.INSPECT REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH
a.
Check the rear height control sensor sub-assembly LH.
i.
Connect 3 dry batteries of 1.5 V in series.
ii.

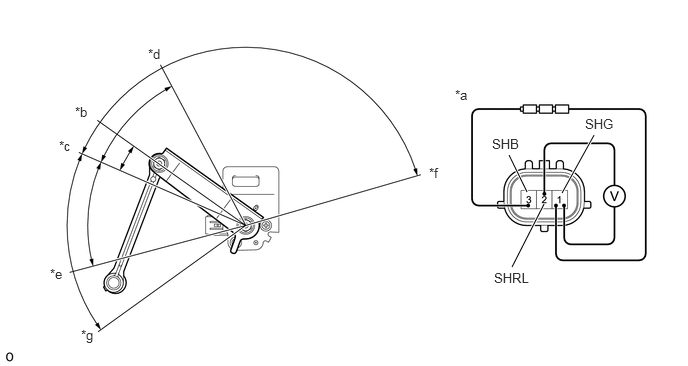

Connect the positive (+) end of the batteries to terminal 3 (SHB) of the rear height control sensor sub-assembly LH and the negative (-) end of the batteries to terminal 1 (SHG). While slowly moving the sensor link up and down, measure the voltage between terminal 2 (SHRL) and terminal 1 (SHG).
- NOTICE:
- ·
Do not use rechargeable batteries as they may not output a voltage of 1.5 V.
·Do not apply a voltage of more than 6 V.
5.854,2.01 6.188,1.406
true
5.302,1.615 5.49,2
true
5.333,2.781 5.667,2.125
true
4.74,0.906 5.052,1.063
0.313,0.156
10
false
*a
0.781,1.083 1.094,1.24
0.313,0.156
10
false
*b
0.615,1.438 0.927,1.594
0.313,0.156
10
false
*c
1.542,0.479 1.854,0.635
0.313,0.156
10
false
*d
0.521,2.771 0.688,2.948
0.167,0.177
10
true
*e
4.469,1.719 4.781,1.875
0.313,0.156
10
false
*f
6.094,1.208 6.552,1.406
0.458,0.198
10
false
SHG
5.146,2.813 5.677,3.052
0.531,0.24
10
false
SHRL
5.125,1.417 5.583,1.615
0.458,0.198
10
false
SHB
0.844,3.406 1.156,3.615
0.313,0.208
10
false
*g
| *a | Component without harness connected
(Rear Height Control Sensor Sub-assembly LH) |
*b | Horizontal Position |
| *c | Standard position
(12.1° from horizontal position) |
*d | Height low (Full bound)
(38.6° from standard position) |
| *e | Height high (Full rebound)
(38.9° from standard position) |
*f | Bound side link stop position
(140° from standard position) |
| *g | Rebound side link stop position
(60° from standard position) |
- | - |
iii.
Measure the voltage according to the value(s) in the table below.
- Standard Voltage:
Tester Connection Condition Specified Condition If the result is not as specified, replace the rear height control sensor sub-assembly LH.
1 (SHG) - 2 (SHRL) Link moves upward from standard position to bound side (Height low) From 38.6° to bound side link stop position Approx. 0.5 V 38.6° (Full Bound) Approx. 0.7 V Horizontal Position Approx. 1.77 V Standard position - Approx. 2.25 V Link moves downward from standard position to rebound side (Height high) 38.9° (Full Rebound) Approx. 3.8 V From 38.9° to rebound side link stop position Approx. 4.5 V
