LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for Bulb Type)  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81565 1.INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

a.

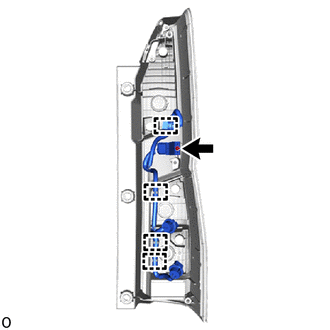

E413236

Attach the wire harness clamp.

HINT:

Attach the wire harness clamp to the areas with blue tape.



b.

Install the rear combination light socket and wire sub-assembly LH with the screw.


Hide 81550N 2.INSTALL BACK-UP LIGHT BULB

a.
E413235
0,0 0,0 false
V113147

Install in this Direction


Install the back-up light bulb to the bulb socket.


b.

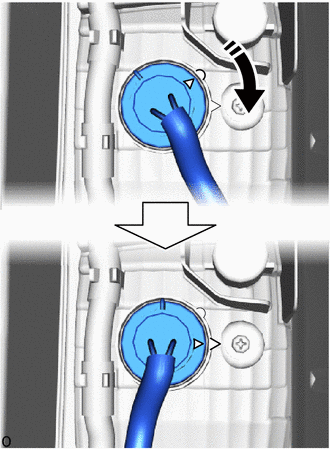

E413233
1.969,0.854 2.344,1.469 true 2.094,0.75 1.74,0.396 true 2.458,4.125 2.219,3.573 true 2.302,1.51 2.49,1.688 0.188,0.177 10 true *a 1.531,0.26 1.74,0.448 0.208,0.188 10 true *b 2.406,4.156 2.594,4.333 0.188,0.177 10 true *c
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the bulb socket to the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.


Hide 81210T 3.INSTALL REAR FOG LIGHT BULB (w/ Rear Fog Light)

a.
E413235
0,0 0,0 false
V113147

Install in this Direction


Install the rear fog light bulb to the bulb socket.


b.
E413233
1.969,0.854 2.344,1.469 true 2.094,0.75 1.74,0.396 true 2.458,4.125 2.219,3.573 true 2.302,1.51 2.49,1.688 0.188,0.177 10 true *a 1.531,0.26 1.74,0.448 0.208,0.188 10 true *b 2.406,4.156 2.594,4.333 0.188,0.177 10 true *c
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.


Hide 81550L 4.INSTALL REAR TURN SIGNAL LIGHT BULB

a.
E413231C01
0,0 0,0 false
V113147

Install in this Direction


Install the rear turn signal light bulb to the bulb socket.


b.

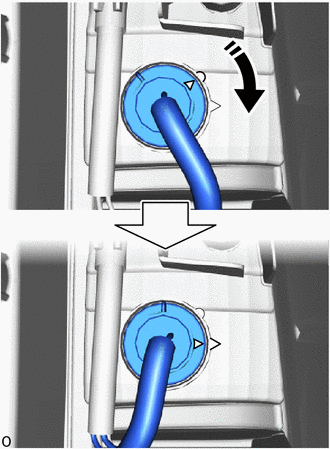

E413229
1.979,0.885 2.323,1.417 true 2.083,0.771 1.729,0.438 true 2.229,3.573 2.448,3.948 true 2.271,1.448 2.458,1.635 0.188,0.188 10 true *a 2.406,3.969 2.604,4.146 0.198,0.177 10 true *c 1.542,0.313 1.729,0.5 0.188,0.188 10 true *b
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.


Hide 81550H 5.INSTALL TAIL AND STOP LIGHT BULB

a.
E413227
0,0 0,0 false
V113147

Install in this Direction


Install the tail and stop light bulb to the bulb socket.


b.

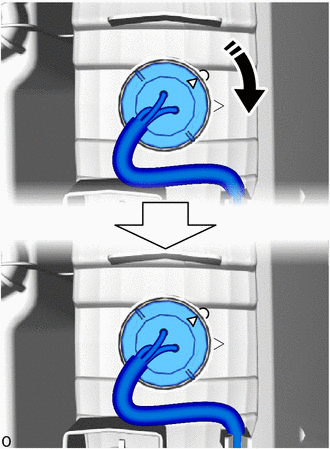

E413225
2.01,0.854 2.417,1.49 true 2.135,0.76 1.635,0.458 true 2.542,3.969 2.26,3.573 true 2.365,1.521 2.552,1.719 0.188,0.198 10 true *a 1.438,0.333 1.625,0.51 0.188,0.177 10 true *b 2.5,4 2.677,4.188 0.177,0.188 10 true *c
*a Matchmark
*b Unlock Position Mark
*c Lock Position Mark
V113147

Turn in this Direction


Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark to connect the bulb socket.
