RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396104 FOG LIGHT ASSEMBLY(for Halogen Fog Light) A

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for Halogen Fog Light)  REASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81210B 1.INSTALL FOG LIGHT BULB

a.

Insert the fog light bulb into place.

NOTICE:

Do not touch the glass part of the fog light bulb.



b.
E404053C01
0,0 0,0 false
V113147

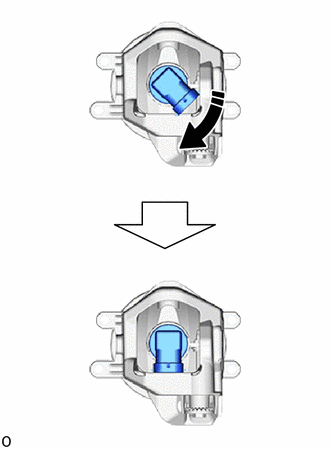

Turn in this Direction


Turn the fog light bulb clockwise until the bulb stops to install it.
