RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396104 FOG LIGHT ASSEMBLY(for Halogen Fog Light) A

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for Halogen Fog Light)  DISASSEMBLY


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81210B 1.REMOVE FOG LIGHT BULB

a.

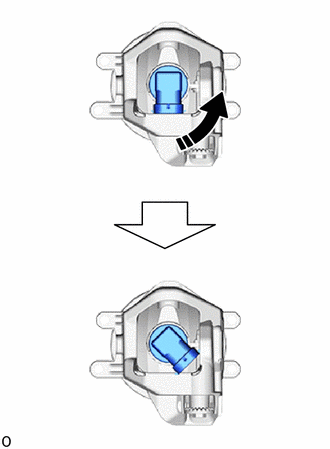

E404052C01
0,0 0,0 false
V113147

Turn in this Direction


Turn the fog light bulb counterclockwise until the bulb stops and remove it.

NOTICE:

Do not touch the glass part of the fog light bulb.
