RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396100 REAR COMBINATION LIGHT ASSEMBLY(for LED Type) G

LIGHTING (EXT) REAR COMBINATION LIGHT ASSEMBLY(for LED Type) INSPECTION

PROCEDURE

Hide Display 1.INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

1.542,0.115 1.885,0.333 0.344,0.219 1.115,0.688 1.521,0.688 true 1.115,0.938 1.521,0.938 true 1.885,0.698 2.292,0.698 true 0.24,0.125 0.552,0.281 0.313,0.156 10 false *a 0.938,0.604 1.26,0.865 0.323,0.26 10 false TL 0.979,0.865 1.302,1.125 0.323,0.26 10 false E 1.635,0.135 1.948,0.333 0.313,0.198 10 false e4 2.354,0.615 2.677,0.875 0.323,0.26 10 false STP

*a	Component without harness connected (Rear Combination Light Assembly LH)

Apply battery voltage to the connector and check the light illumination conditions.

OK:

Battery Connection	Specified Condition
Battery positive (+) → e4-1 (STP) Battery negative (-) → e4-4 (E)	Stop light illuminates
Battery positive (+) → e4-2 (TL) Battery negative (-) → e4-4 (E)	Taillight illuminates

If the light is not as illuminated, inspect the rear combination light socket and wire sub-assembly LH.

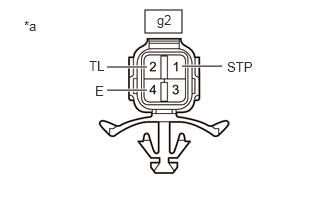

Hide Display 2.INSPECT REAR COMBINATION LIGHT ASSEMBLY RH

1.51,0.104 1.896,0.344 0.385,0.24 1.115,0.698 1.531,0.698 true 1.115,0.938 1.531,0.938 true 1.896,0.688 2.313,0.688 true 0.25,0.188 0.563,0.344 0.313,0.156 10 false *a 2.365,0.615 2.823,0.813 0.458,0.198 10 false STP 0.927,0.604 1.385,0.802 0.458,0.198 10 false TL 0.99,0.865 1.448,1.063 0.458,0.198 10 false E 1.635,0.125 1.938,0.344 0.302,0.219 10 false g2

*a	Component without harness connected (Rear Combination Light Assembly RH)

Apply battery voltage to the connector and check the light illumination conditions.

OK:

Battery Connection	Specified Condition
Battery positive (+) → g2-1 (STP) Battery negative (-) → g2-4 (E)	Stop light illuminates
Battery positive (+) → g2-2 (TL) Battery negative (-) → g2-4 (E)	Taillight illuminates

If the light is not as illuminated, inspect the rear combination light socket and wire sub-assembly RH.

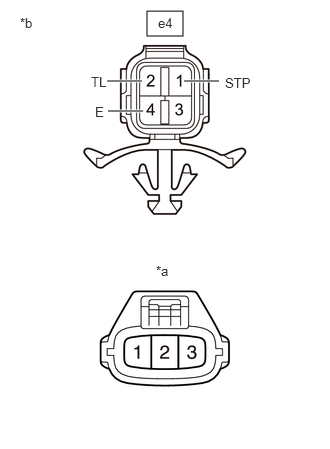

Hide Display 81565 3.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH

Disconnect the rear combination light socket and wire sub-assembly RH connector

1.531,0.115 1.906,0.375 0.375,0.26 1.115,0.844 1.479,0.844 true 1.125,1.156 1.49,1.156 true 1.917,0.844 2.281,0.844 true 1.646,0.156 1.969,0.427 0.323,0.271 10 false e4 1.625,2.74 1.938,2.896 0.313,0.156 10 false *a 0.208,0.156 0.521,0.313 0.313,0.156 10 false *b 0.948,0.771 1.406,0.969 0.458,0.198 10 false TL 0.99,1.083 1.448,1.281 0.458,0.198 10 false E 2.344,0.781 2.802,0.979 0.458,0.198 10 false STP

*a	Connector A
*b	Component without harness connected (Rear Combination Light Socket and Wire Sub-assembly LH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
e4-1 (STP) - A-1	Always	Below 1 Ω
e4-2 (TL) - A-2
e4-4 (E) - A-3

If the result is not as specified, replace the rear combination light socket and wire sub-assembly LH.

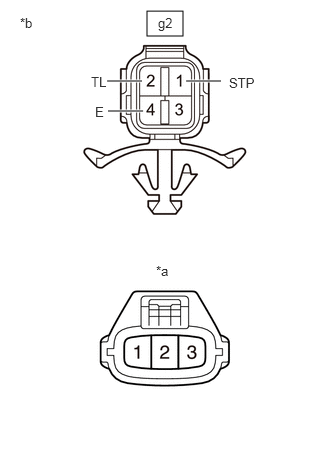

Hide Display 81555 4.INSPECT REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY RH

Disconnect the rear combination light socket and wire sub-assembly RH connector

1.531,0.115 1.906,0.375 0.375,0.26 1.115,0.844 1.479,0.844 true 1.125,1.156 1.49,1.156 true 1.938,0.844 2.302,0.844 true 1.646,0.156 1.969,0.427 0.323,0.271 10 false g2 1.625,2.74 1.938,2.896 0.313,0.156 10 false *a 0.208,0.156 0.521,0.313 0.313,0.156 10 false *b 0.948,0.771 1.406,0.969 0.458,0.198 10 false TL 0.99,1.083 1.448,1.281 0.458,0.198 10 false E 2.385,0.781 2.844,0.979 0.458,0.198 10 false STP

*a	Connector A
*b	Component without harness connected (Rear Combination Light Socket and Wire Sub-assembly RH)

Measure the resistance according to the value(s) in the table below.

Standard Resistance:

Tester Connection	Condition	Specified Condition
g2-1 (STP) - A-1	Always	Below 1 Ω
g2-2 (TL) - A-2
g2-4 (E) - A-3

If the result is not as specified, replace the rear combination light socket and wire sub-assembly RH.
