LIGHTING (EXT) REAR COMBINATION LIGHT ASSEMBLY(for LED Type) REASSEMBLY
CAUTION / NOTICE / HINT
- HINT:
- ·
Use the same procedure for the RH and LH sides.
·The procedure listed below is for the LH side.
PROCEDURE
81565
1.INSTALL REAR COMBINATION LIGHT SOCKET AND WIRE SUB-ASSEMBLY LH
a.
1.156,2.073 1.302,2.323
true
1.979,1.458 2.188,1.344
true
0.99,1.844 1.198,2.063
0.208,0.219
10
true
*a
2.219,1.219 2.438,1.417
0.219,0.198
10
true
*b
| *a | Wire Harness Clamp |
| *b | Connector Clamp |

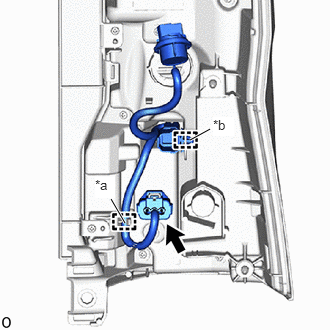

Attach the wire harness clamp and connector clamp and install the rear combination light socket and wire sub-assembly LH.
- HINT:
-
Attach the wire harness clamp to the areas with tape.
b.
Connect the connector.
81550L
2.INSTALL REAR TURN SIGNAL LIGHT BULB
a.
0,0 0,0
false
|
Install in this Direction |

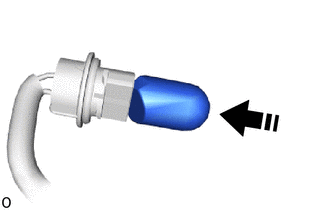

Install the rear turn signal light bulb to the bulb socket.
b.
0.396,1.01 0.604,1.01
true
2.063,0.5 2.115,0.781
true
0.406,1.25 0.521,1.104
true
0.188,0.906 0.396,1.115
0.208,0.208
10
true
*a
0.219,1.219 0.448,1.406
0.229,0.188
10
true
*b
1.917,0.292 2.135,0.5
0.219,0.208
10
true
*c
| *a | Matchmark |
| *b | Unlock Position Mark |
| *c | Lock Position Mark |
|
|
Turn in this Direction |
Align the matchmark of the bulb socket with the unlock position mark, and then turn the bulb socket clockwise until the lock position mark and connect the bulb socket.
