LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for LED Type)  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 1.INSTALL REAR COMBINATION LIGHT ASSEMBLY LH

a.
B544910

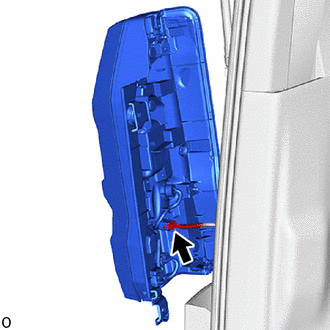

Connect the connector.


b.
B544599C01
0,0 0,0 false
V113147

Install in this Direction

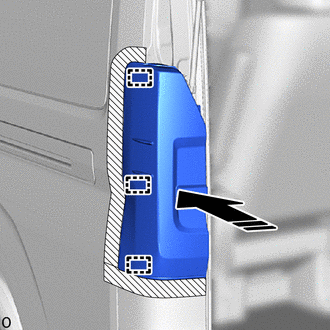

Attach the pin as shown in the illustration.


c.
B544597C03
0,0 0,0 false
V100155

Protective Tape

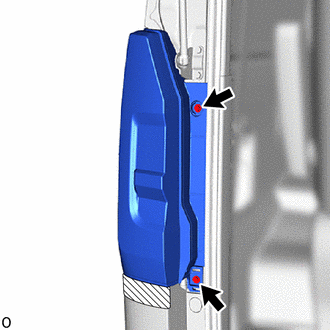

Install the rear combination light assembly LH with 2 screws.


d.

Remove the protective tape.


Hide 81498 2.INSTALL REAR COMBINATION LIGHT COVER LH

a.
B552279C01
0,0 0,0 false
V113147

Install in this Direction

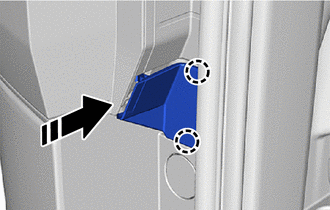

Attach the claw as shown in the illustration.


b.
B544595C03
0,0 0,0 false
V113147

Install in this Direction

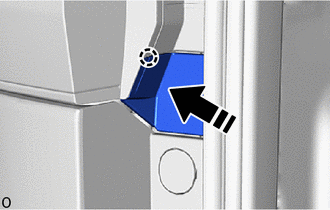

Attach the claw and install the rear combination light cover LH as shown in the illustration.


Hide 81497A 3.INSTALL REAR UPPER COMBINATION LIGHT COVER RH

a.
B544593

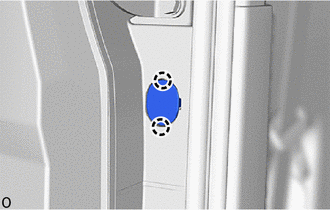

Attach the claw and install the rear upper combination light cover RH.
