LIGHTING (EXT)  REAR COMBINATION LIGHT ASSEMBLY(for LED Type)  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for the RH and LH sides.

·

The procedure described below is for the LH side.



PROCEDURE

Hide 81497A 1.REMOVE REAR UPPER COMBINATION LIGHT COVER RH

a.

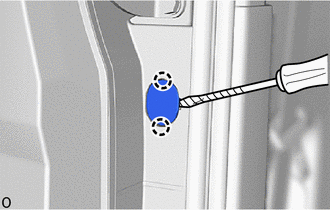

B544592
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the rear upper combination light cover RH.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 81498 2.REMOVE REAR COMBINATION LIGHT COVER LH

a.

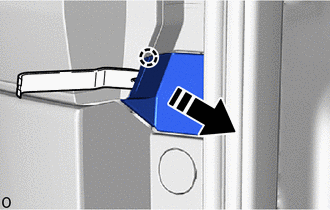

B544594
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover B, detach the claw as shown in the illustration.


b.

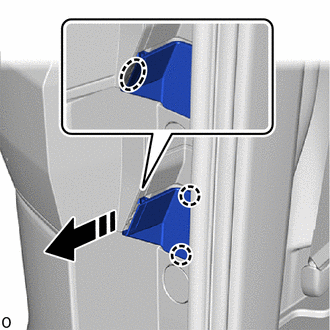

B552278
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the claw and remove the rear combination light cover LH.


Hide 3.REMOVE REAR COMBINATION LIGHT ASSEMBLY LH

a.

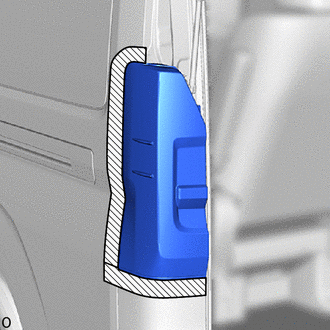

B544596C01
0,0 0,0 false
V100155

Protective Tape


Apply protective tape as shown in the illustration.


b.

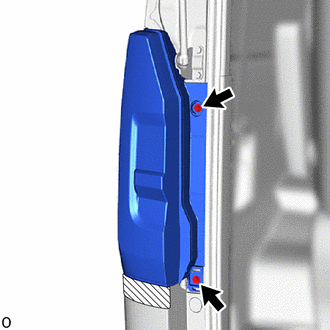

B544597

Remove the 2 screws.


c.

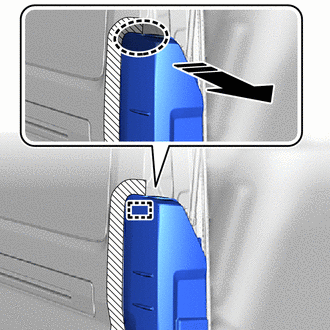

B544598C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin.


d.

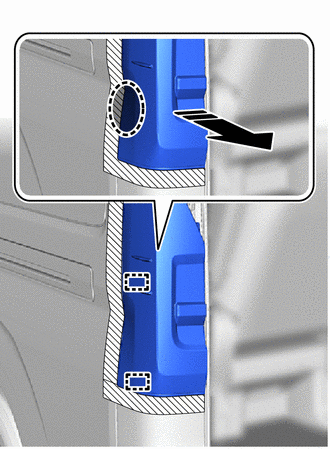

B548498C01
0,0 0,0 false
V113146

Place Hand Here
V113147

Remove in this Direction


Place your hand at the position shown in the illustration and pull in the removal direction and detach the pin and remove the rear combination light assembly LH.


e.
B544910

Disconnect the connector.
