RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396099 FOG LIGHT ASSEMBLY(for LED Fog Light) G

LIGHTING (EXT)  FOG LIGHT ASSEMBLY(for LED Fog Light)  INSPECTION


PROCEDURE

Hide 81220 1.INSPECT FOG LIGHT ASSEMBLY LH

a.
E410362C01
1.219,1.813 1.417,1.26 true 1.781,1.802 1.979,1.25 true 0.104,0.104 0.417,0.26 0.313,0.156 10 false *a 1.125,1.844 1.281,2.042 0.156,0.198 10 false B 1.698,1.833 1.854,2.031 0.156,0.198 10 false E

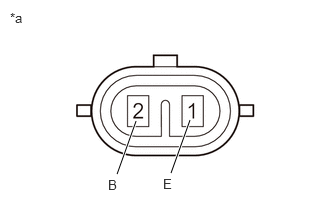

*a Component without harness connected
(Fog Light Assembly LH)


Apply battery voltage to the connector and check the light illumination conditions.

OK:
Battery Connection Specified Condition

If the result is not as specified, replace the fog light assembly LH.

Battery positive (+) → 2 (B)
Battery negative (-) → 1 (E) 		Illuminates



Hide 81210A 2.INSPECT FOG LIGHT ASSEMBLY RH

a.
E410362C01
1.219,1.813 1.417,1.26 true 1.781,1.802 1.979,1.25 true 0.104,0.104 0.417,0.26 0.313,0.156 10 false *a 1.125,1.844 1.281,2.042 0.156,0.198 10 false B 1.698,1.833 1.854,2.031 0.156,0.198 10 false E
*a Component without harness connected
(Fog Light Assembly RH)


Apply battery voltage to the connector and check the light illumination conditions.

OK:
Battery Connection Specified Condition

If the result is not as specified, replace the fog light assembly RH.

Battery positive (+) → 2 (B)
Battery negative (-) → 1 (E) 		Illuminates
