RM35X0E _59 Vehicle Exterior _079256 LIGHTING (EXT) _0396098 HEADLIGHT ASSEMBLY(for LED Headlight) A

LIGHTING (EXT)  HEADLIGHT ASSEMBLY(for LED Headlight)  REPAIR


CAUTION / NOTICE / HINT

HINT:
·

If the installation area of the headlight assembly is damaged, use the supply retainer for low-cost repair.

·

Make sure that the headlight assembly is not damaged.

·

Use the same procedure for the RH and LH sides.

·

The procedure listed below is for the LH side.



PROCEDURE

Hide 81194D 1.INSTALL UPPER HEADLIGHT PROTECTOR RETAINER LH

a.

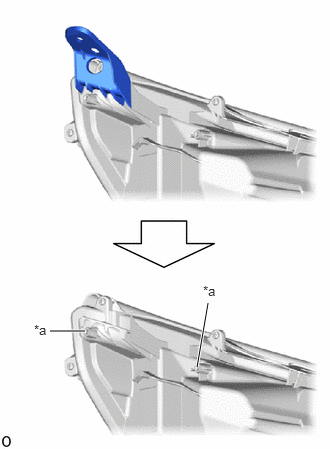

B541960C01
0.521,3.448 0.885,3.448 true 2.167,3.156 2.052,3.823 true 0.354,3.354 0.531,3.531 0.177,0.177 10 false *a 2.115,2.948 2.292,3.125 0.177,0.177 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and smooth with sandpaper.

NOTICE:

After cutting off the part, place the upper headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.



b.

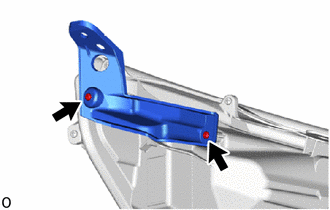

B541961

Install the upper headlight protector retainer LH with the 2 screws.


Hide 81194C 2.INSTALL UPPER NO. 2 HEADLIGHT PROTECTOR RETAINER LH

a.

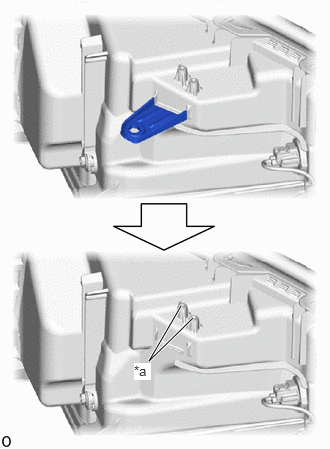

B541962C01
2.01,3.313 1.552,3.76 1.552,3.76 1.885,3.188 true 1.396,3.781 1.573,3.958 0.177,0.177 10 true *a
*a Boss


Cut off the blue-colored part in the illustration and smooth with sandpaper.

NOTICE:

After cutting off the part, place the upper No. 2 headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.



b.

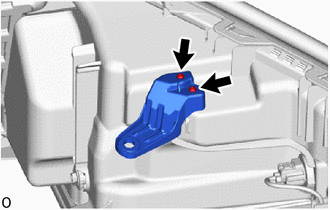

B541963

Install the upper No. 2 headlight protector retainer LH with the 2 screws.


Hide 81196C 3.INSTALL LOWER HEADLIGHT PROTECTOR RETAINER LH

a.

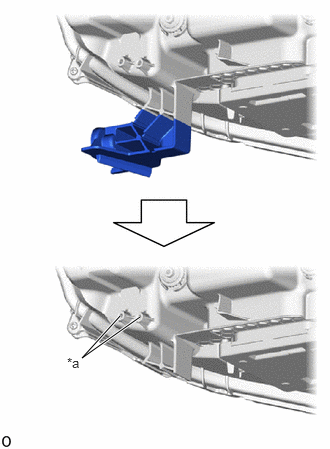

B541964C01
1.458,3.302 0.854,3.729 0.854,3.729 1.25,3.292 true 0.698,3.698 1.01,3.896 0.313,0.198 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and smooth with sandpaper.

NOTICE:

After cutting off the part, place the lower headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.



b.

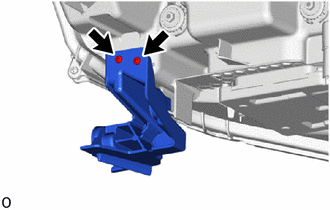

B541965

Install the lower headlight protector retainer LH with the 2 screws.


Hide 81196B 4.INSTALL LOWER NO. 2 HEADLIGHT PROTECTOR RETAINER LH

a.

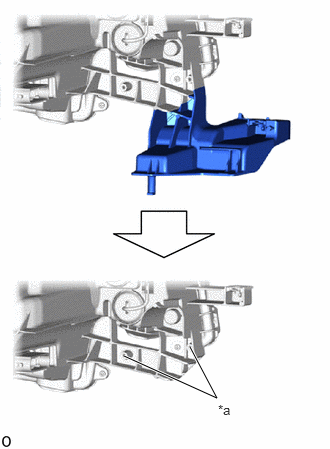

B541966C01
1.292,3.708 2.26,4.146 2.26,4.146 1.979,3.615 true 2.271,4.188 2.479,4.354 0.208,0.167 10 false *a
*a Boss


Cut off the blue-colored part in the illustration and smooth with sandpaper.

NOTICE:

After cutting off the part, place the lower No. 2 headlight protector retainer LH against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.



b.

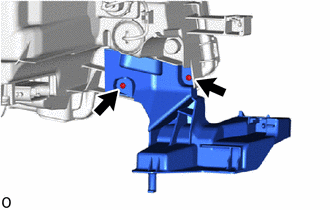

B541967

Install the upper No. 2 headlight protector retainer LH with the 2 screws.
