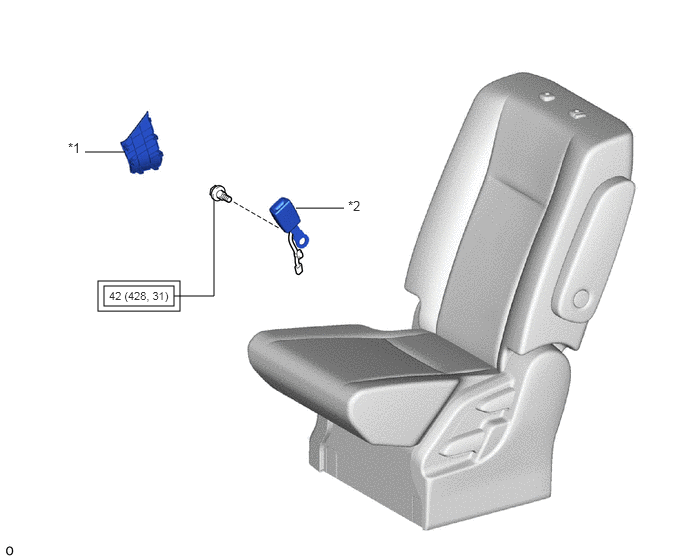

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  COMPONENTS

ILLUSTRATION

1.083,2.979 1.813,3.188 0.729,0.208 1.021,2.927 1.875,3.24 0.854,0.313 0.885,1.583 1.302,1.583 false 3.083,2.167 3.583,2.167 false 1.813,3.083 2.229,3.083 2.229,3.083 2.229,2.083 false 0.708,1.458 1.021,1.615 0.313,0.156 10 false *1 3.625,2.063 3.938,2.219 0.313,0.156 10 false *2 1.135,3.01 1.802,3.167 0.667,0.156 8 false 42 (428, 31)

*1	NO. 3 SEAT NO. 2 INNER LEG COVER SUB-ASSEMBLY	*2	REAR SEAT INNER BELT ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)	-	-
