RM35X0E _58 Vehicle Interior _078601 SEAT _0396040 REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side) A

SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73315B 1.REMOVE REAR NO. 3 SEAT INNER BELT COVER RH

a.
B547472

Remove the 2 screws.


b.
B548359

Using moulding remover A, detach the claw and clip.


c.
B548360C01
0,0 0,0 false
V113147

Remove in this Direction

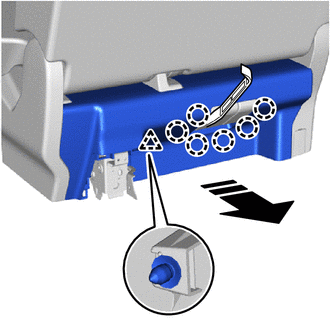

Using moulding remover A, detach the claw and remove the rear No. 3 seat inner belt cover RH as shown in the illustration.


Hide 72345V 2.REMOVE NO. 4 SEAT STAND FRAME CAP RH

a.
B547475C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V100155

Protective Tape

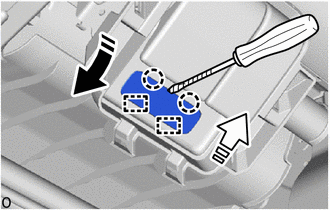

Using a thin-bladed screwdriver, detach the claw in the removal direction (1) shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the No. 4 seat stand frame cap RH.


Hide 72057E 3.REMOVE REAR NO. 1 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

a.
B547477C01
0,0 0,0 false
V113147

Remove in this Direction

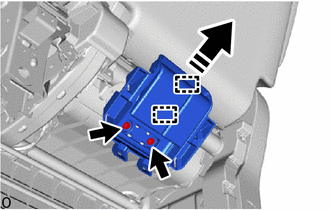

Remove the 2 screws.


b.

Detach the guide as shown in the illustration.


c.
B547479

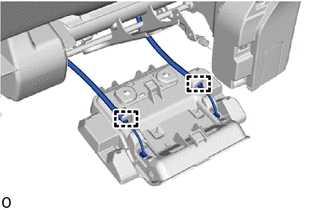

Detach the cable clamp.


d.
B547481C01
1.302,1.073 1.667,1.438 true 1.698,1.354 1.917,1.531 0.219,0.177 10 true *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration.


e.
B547483C01
1.729,1.521 2.198,1.031 true 1.531,1.417 1.74,1.625 0.208,0.208 10 true *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration and remove the rear No. 1 seat lock control lever sub-assembly RH.


Hide 71848V 4.REMOVE NO. 3 SEAT ADJUSTER COVER CAP RH (w/ Center Headrest)

a.
B547484C01

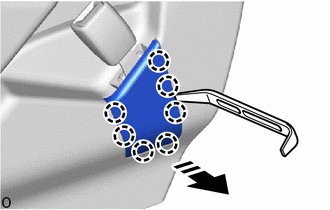

0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 3 seat adjuster cover cap RH as shown in the illustration.


Hide 71834P 6.REMOVE RH SEAT REAR NO. 3 SEAT RECLINING COVER

a.
B554801

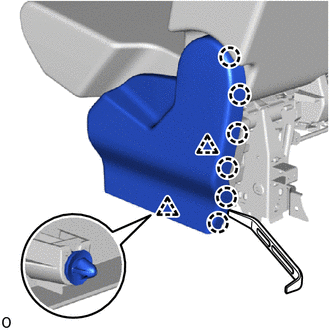

Using moulding remover A, detach the claw.


b.

Detach the clip.


c.

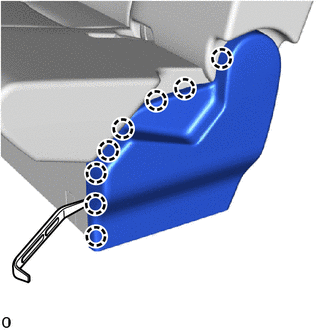

B548363

Using moulding remover A, detach the claw.


d.
B548364C01
0,0 0,0 false
V113147

Remove in this Direction

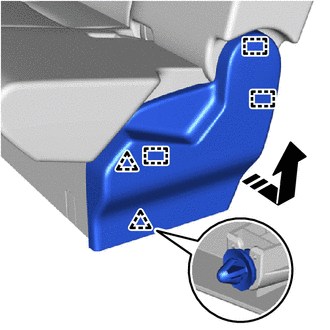

Detach the clip and guide and remove the RH seat rear No. 3 seat reclining cover as shown in the illustration.


Hide 72525Q 7.REMOVE NO. 3 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

a.

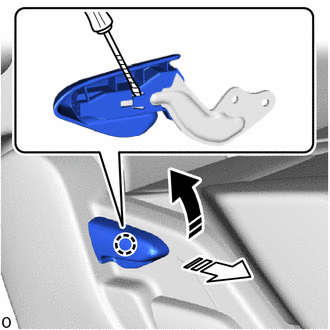

B547497C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 3 seat reclining adjuster release handle RH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.

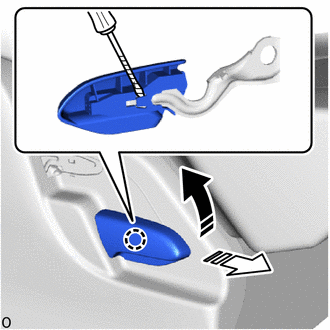

Hide 72215C 8.REMOVE NO. 3 SEAT TRACK HANDLE CONTROL LEVER RH

a.
B547499C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 3 seat track handle control lever RH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.

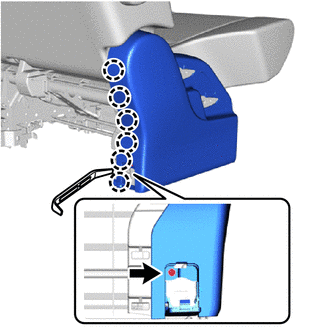

Hide 79076P 9.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY RH

a.
B551350

Remove the screw.


b.

Using moulding remover A, detach the claw.


c.
B548371

Detach the clip and guide.


d.

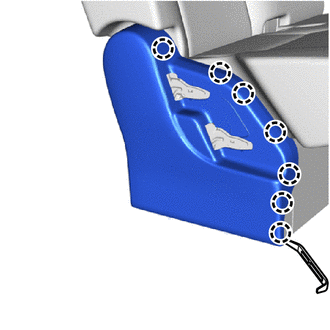

B548367

Using moulding remover A, detach the claw.


e.
B554803C01
0,0 0,0 false
V113147

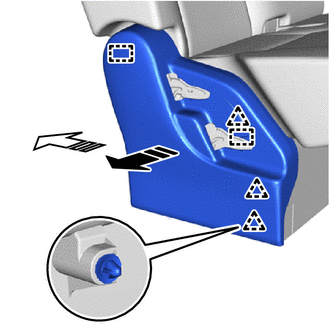

Remove in this Direction(1)
V113148

Remove in this Direction(2)


Pull in the removal direction (1) and detach the clip and guide as shown in the illustration.


f.

Pull in the removal direction (2) and detach the guide and remove the No. 3 seat leg cover sub-assembly RH as shown in the illustration.


Hide 71H75S 10.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER

a.

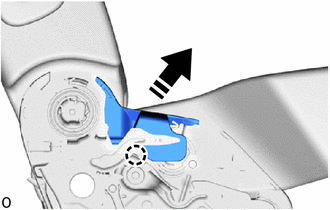

B547505C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the RH seat reclining adjuster inside cover as shown in the illustration.

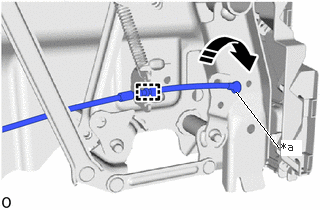

Hide 72620P 11.REMOVE NO. 3 SEAT SLIDE CABLE ASSEMBLY RH

a.
B548310C01
2.896,1.531 2.458,0.958 true 2.927,1.458 3.146,1.625 0.219,0.167 10 true *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


b.

Disconnect the cable end moving the direction of the arrow in the illustration.


c.

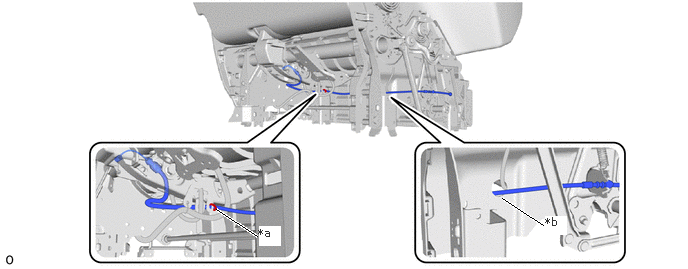

Cut off the cable tie.

B548308C02
5.229,2.063 5.656,2.344 true 2.25,2.177 2.677,2.458 true 2.688,2.354 2.917,2.563 0.229,0.208 10 true *a 5.677,2.24 5.906,2.448 0.229,0.208 10 true *b
*a Cable Tie *b Hole of the No. 3 Seat Leg Sub-assembly RH



d.

Pass the No. 3 seat slide cable assembly RH through the hole in the No. 3 seat leg sub-assembly RH.


e.

Remove the No. 3 seat slide cable assembly RH.

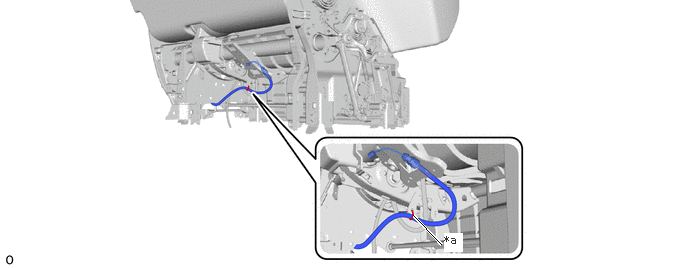

Hide 12.REMOVE REAR SEAT CUSHION ASSEMBLY

a.

Cut off the cable tie.

B548307C02
4.302,2.24 4.594,2.542 true 4.625,2.427 4.823,2.615 0.198,0.188 10 true *a
*a Cable Tie - -



b.
B552089

Detach the clamp.


c.

Disconnect the connector.


d.
B547507

Remove the bolt.


e.
B547508

Remove the 2 bolts.


f.

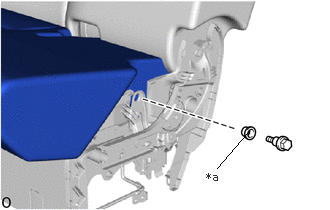

B547509C01
2.26,1.75 2.573,1.385 false 2.146,1.771 2.396,2 0.25,0.229 10 true *a
*a Bush


Remove the bolt and bush.


g.
B547510C02
1.104,0.958 1.438,0.958 true 2.667,0.833 3.052,1.021 true 1.281,1.729 1.51,1.531 true 2.302,1.719 2.104,1.25 true 0.906,0.844 1.094,1.01 0.188,0.167 10 true *1 3.083,0.927 3.396,1.083 0.313,0.156 10 true *2 1.083,1.646 1.271,1.813 0.188,0.167 10 true *b 2.333,1.719 2.552,1.917 0.219,0.198 10 true *a
*1 Rear No. 4 Seat Wire RH
*2 No. 3 Seat No. 1 Reclining Adjusting Cable Assembly RH
*a Slit
*b Hole


Pass the rear No. 4 seat wire RH and No. 3 seat No. 1 reclining adjusting cable assembly RH through the hole and slit as shown in the illustration.


h.

Remove the rear seat cushion assembly.


Hide 72345W 13.REMOVE NO. 3 SEAT STAND FRAME CAP LH

a.
B547511C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V100155

Protective Tape

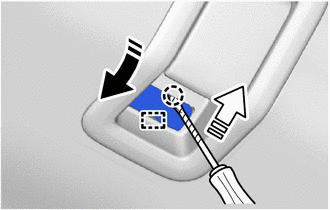

Using a thin-bladed screwdriver, detach the claw in the removal direction (1) shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the No. 3 seat stand frame cap LH.

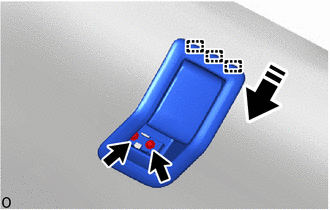

Hide 72057H 14.REMOVE REAR NO. 2 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH

a.
B547513C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide as shown in the illustration.


c.
B547515

Detach the cable clamp.


d.
B547517C01
1.792,0.479 2.469,0.635 true 2.51,0.542 2.823,0.698 0.313,0.156 10 false *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration and remove the rear No. 2 seat lock control lever sub-assembly LH.


Hide 15.REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

a.

Pull out the 2 fasteners.

B547518


b.
B547520

Open the 2 fasteners.


c.
B547521C02
2.417,1.344 2.531,0.99 2.531,0.99 2.677,1.313 true 2.01,1.552 2.406,1.646 true 2.896,1.615 3.156,1.396 false 1.844,1.427 2.094,1.604 0.25,0.177 10 true *1 3.198,1.219 3.427,1.396 0.229,0.177 10 false *2 2.438,0.76 2.625,0.948 0.188,0.188 10 true *a
*1 Rear No. 4 Seat Wire RH
*2 No. 3 Seat No. 1 Reclining Adjusting Cable Assembly RH
*a Slit


Pass the No. 3 seat No. 1 reclining adjusting cable assembly RH and rear No. 4 seat wire RH through the slit of the separate type rear seat cushion cover with pad.


d.

w/ Center Headrest:

i.
B548335

Disconnect the 2 connectors.


ii.

Detach the clamp and claw.



e.

w/o Center Headrest:

i.
B548338

Disconnect the connector.


ii.

Detach the claw.



f.

Remove the separate type rear seat cushion cover with pad from the No. 1 seat cushion frame sub-assembly RH.

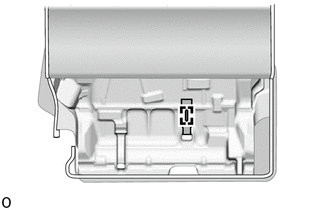

Hide 79031C 16.REMOVE NO. 3 SEAT CUSHION COVER SUB-ASSEMBLY RH

a.
B552175

Remove the hog ring.

NOTICE:

Be careful not to damage the No. 3 seat cushion cover sub-assembly RH.



b.
B547522

Remove the 8 hog rings and No. 3 seat cushion cover sub-assembly RH from the No. 3 seat cushion pad RH.

NOTICE:

Be careful not to damage the No. 3 seat cushion cover sub-assembly RH.

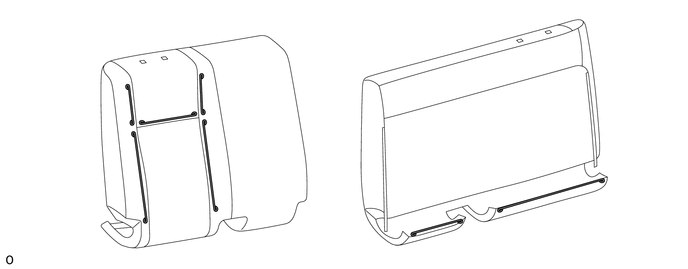

Hide 17.REMOVE SEAT COVER WIRE

a.
B548313

Remove the seat cover wire.

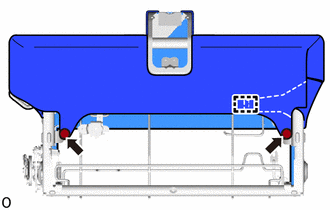

Hide 71697F 18.REMOVE REAR NO. 3 SEAT CUSHION PROTECTOR RH

a.
B560483

Detach the hook.


b.

Remove the 2 clips.


c.
B548354

Remove the 3 clips.


d.
B548353

Remove the 3 clips and rear No. 3 seat cushion protector RH.


Hide 82195B 19.REMOVE REAR NO. 4 SEAT WIRE RH

a.
B548339

Detach the clamp and remove the rear No. 4 seat wire RH.


Hide 72570J 20.REMOVE NO. 3 SEAT NO. 1 RECLINING ADJUSTING CABLE ASSEMBLY RH

a.

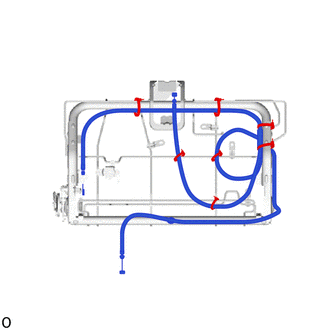

B548340

Cut off the 7 cable ties.


b.

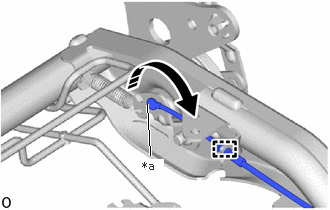

B548317C01
1.563,1.615 1.531,1.083 true 1.479,1.656 1.708,1.854 0.229,0.198 10 true *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


c.

Disconnect the cable end moving the direction of the arrow in the illustration and remove the No. 3 seat No. 1 reclining adjusting cable assembly RH.

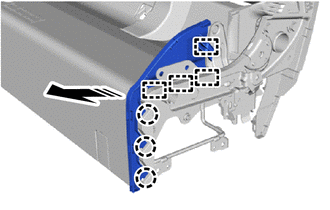

Hide 71868T 21.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD LH

a.
B554806C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and claw and remove the rear No. 1 seat inner cushion shield LH as shown in the illustration.

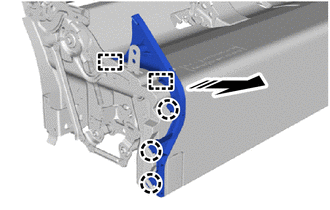

Hide 71H67 22.REMOVE REAR NO. 1 SEAT INNER CUSHION SHIELD RH

a.
B554808C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and claw and remove the rear No. 1 seat inner cushion shield RH as shown in the illustration.


Hide 71396L 23.REMOVE REAR NO. 3 SEAT CUSHION SUPPORT RH

a.
B547529

Remove the 2 screws and 2 rear No. 3 seat cushion supports RH.


Hide 79078B 24.REMOVE NO. 3 SEAT NO. 1 LEG COVER SUB-ASSEMBLY RH

a.
B551352

Remove the 2 screws and No. 3 seat No. 1 leg cover sub-assembly RH.


Hide 71879G 25.REMOVE NO. 3 SEAT INNER RECLINING COVER LH

a.

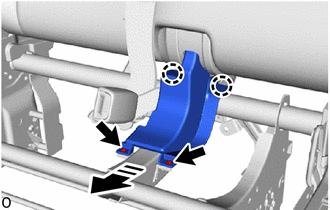

B548332C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the claw and remove the No. 3 seat inner reclining cover LH as shown in the illustration.


Hide 71878G 26.REMOVE NO. 3 SEAT INNER RECLINING COVER RH

a.
B548331

Remove the 2 screws and No. 3 seat inner reclining cover RH.


Hide 73380 28.REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH (ANCHOR) (w/ Center Headrest)

a.
B548323

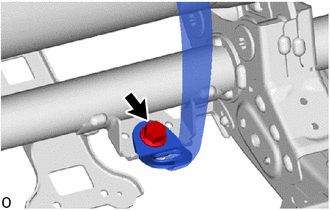

Remove the bolt and anchor of the rear seat 3 point type belt assembly RH.


Hide 72848G 29.REMOVE NO. 3 SEAT NO. 1 ARMREST CAP RH

a.
B547530C02
0,0 0,0 false
V113147

Remove in this Direction

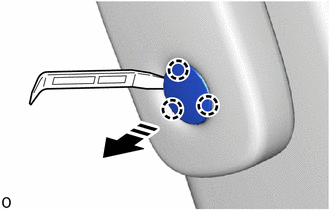

Using moulding remover A, detach the claw and remove the No. 3 seat No. 1 armrest cap RH as shown in the illustration.


Hide 72880G 30.REMOVE RH SEAT NO. 3 SEAT ARMREST ASSEMBLY

a.
B547532C01
0.594,1.354 1.219,1.656 false 0.427,1.229 0.74,1.385 0.313,0.156 10 false *a
*a Washer Plate

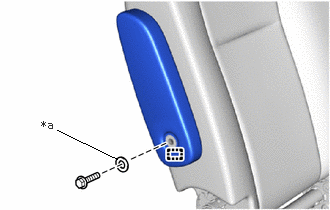

Remove the bolt and washer plate.


b.

Detach the guide and remove the RH seat No. 3 seat armrest assembly.

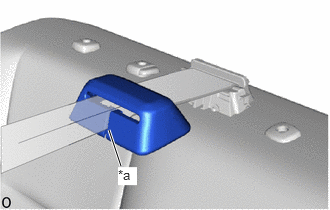

Hide 73375 31.REMOVE REAR SEAT SHOULDER BELT COVER LH (w/ Center Headrest)

a.

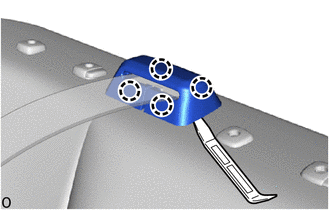

B547533

Using moulding remover A, detach the claw.


b.
B547534C01
1.26,1.729 1.135,1.354 true 1.229,1.74 1.427,1.927 0.198,0.188 10 true *a
*a Slit


Pass the seat belt through the slit and remove the rear seat shoulder belt cover LH.


Hide 32.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.
B548375

Remove the 5 hog rings.

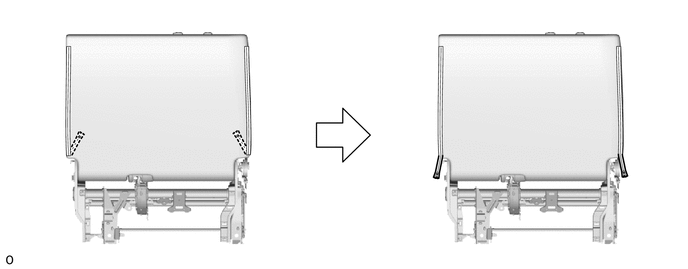

b.

Pull out the 2 fasteners.

B547535


c.
B547537

Open the 2 fasteners.


d.

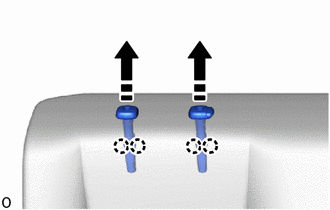

B547540C02
0,0 0,0 false
V113147

Remove in this Direction


w/o Center Headrest:

i.

Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.

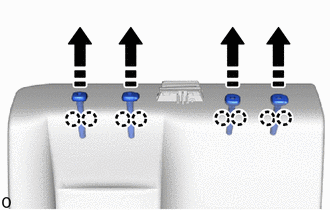

e.
B547541C01
0,0 0,0 false
V113147

Remove in this Direction


w/ Center Headrest:

i.

Detach the claw and remove the 4 rear seat headrest supports as shown in the illustration.


ii.
B548334C01
0.594,2.563 1.208,2.646 true 1.979,0.99 2.26,1.333 2.26,1.333 2.125,0.906 true 0.427,2.417 0.604,2.635 0.177,0.219 10 true *a 2.323,1.26 2.552,1.438 0.229,0.177 10 true *b
*a Guide
*b Hook


Detach the guide and hook.


iii.

Pass the rear seat outer 3 point type belt assembly through the hole of the separate type rear seatback cover with pad.



f.

Remove the separate type rear seatback cover with pad.


Hide 79033B 33.REMOVE NO. 3 SEATBACK COVER SUB-ASSEMBLY RH

a.

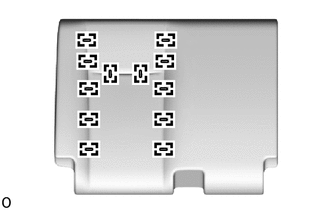

B547542

Remove the 12 hog rings and No. 3 seatback cover sub-assembly RH from the No. 3 seatback pad RH.

NOTICE:

Be careful not to damage the No. 3 seatback cover sub-assembly RH.



Hide 34.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B548311


Hide 71697D 35.REMOVE NO. 3 SEATBACK PROTECTOR RH

a.

Remove the clip.

B560482C01

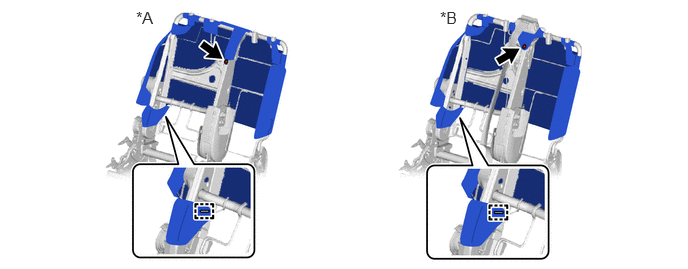

1.417,0.083 1.667,0.333 0.25,0.25 12 false *A 4.583,0.083 4.833,0.333 0.25,0.25 12 false *B
*A w/o Center Headrest *B w/ Center Headrest



b.

Detach the hook and remove the No. 3 seatback protector RH.

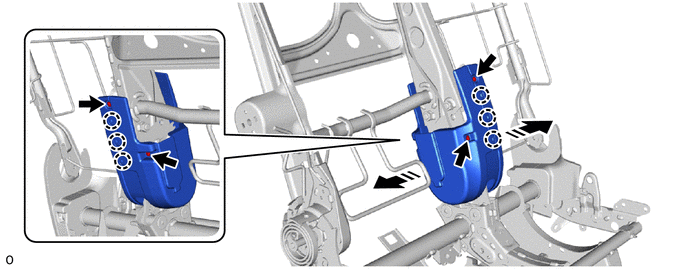

Hide 71801D 36.REMOVE NO. 3 SEAT RECLINING ADJUSTER COVER SUB-ASSEMBLY RH

a.

Remove the 4 screws.

B548318C01
0,0 0,0 false
V113147

Remove in this Direction - -



b.

Detach the claw and remove the No. 3 seat reclining adjuster cover sub-assembly RH as shown in the illustration.


Hide 73C73 37.REMOVE REAR NO. 3 SEAT NO. 1 SHOULDER BELT COVER RH (w/ Center Headrest)

a.
B547545

Detach the claw and remove the rear No. 3 seat No. 1 shoulder belt cover RH.


Hide 73C73B 40.REMOVE REAR NO. 3 SEAT NO. 2 SHOULDER BELT COVER RH (w/ Center Headrest)

a.
B547550C01
1.688,1.5 1.865,1.875 1.865,1.875 2.031,1.521 true 1.573,0.635 1.917,0.25 true 1.823,1.885 2.135,2.042 0.313,0.156 10 false *a 1.948,0.104 2.26,0.26 0.313,0.156 10 false *b
*a Hook
*b Guide


Detach the hook and guide and remove the rear No. 3 seat No. 2 shoulder belt cover RH.

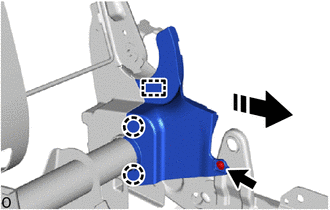

Hide 71H76V 41.REMOVE RH SEAT NO. 1 RECLINING ADJUSTER INSIDE COVER

a.
B547551C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the claw and guide and remove the RH seat No. 1 reclining adjuster inside cover as shown in the illustration.


Hide 71H76U 42.REMOVE RH SEAT NO. 2 RECLINING ADJUSTER INSIDE COVER

a.
B547553

Detach the guide and remove the RH seat No. 2 reclining adjuster inside cover.


Hide 71H75T 43.REMOVE RH SEAT NO. 3 RECLINING ADJUSTER INSIDE COVER

a.
B548299

Remove the screw.


b.

Detach the guide and remove the RH seat No. 3 reclining adjuster inside cover.

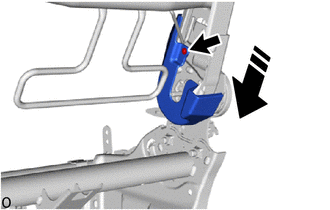

Hide 71H75J 44.REMOVE REAR NO. 3 SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B554813C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw and rear No. 3 seat reclining adjuster inside cover RH as shown in the illustration.


Hide 72573C 45.REMOVE NO. 3 SEAT RECLINING CONTROL LEVER RH

a.
B547554

Remove the 2 bolts and No. 3 seat reclining control lever RH.


Hide 72570K 46.REMOVE NO. 3 SEAT NO. 2 RECLINING ADJUSTING CABLE ASSEMBLY RH

a.

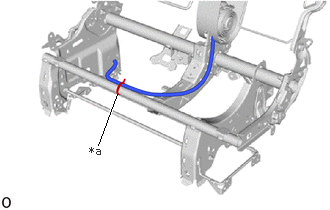

B548303C01
1.021,1.51 1.219,0.979 true 0.927,1.5 1.146,1.677 0.219,0.177 10 false *a
*a Cable Tie


Cut off the cable tie.


b.

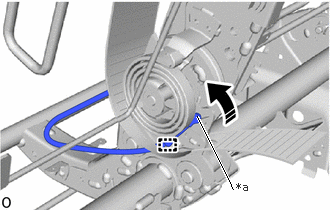

B548302C02
2.427,1.969 2.052,1.208 true 2.458,1.875 2.708,2.031 0.25,0.156 10 false *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


c.

Disconnect the cable end moving the direction of the arrow in the illustration.


d.

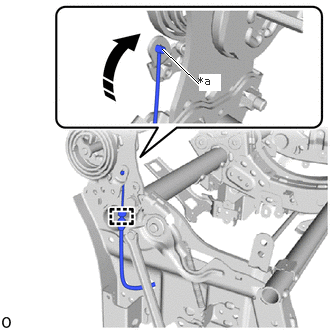

B548306C01
1.688,0.51 2.073,0.875 true 2.063,0.771 2.292,0.948 0.229,0.177 10 true *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


e.

Disconnect the cable end moving the direction of the arrow in the illustration.


f.
B548304

Pass the No. 3 seat No. 2 reclining adjusting cable assembly RH through the hole in the No. 3 seat leg sub-assembly RH.


g.

Remove the No. 3 seat No. 2 reclining adjusting cable assembly RH.

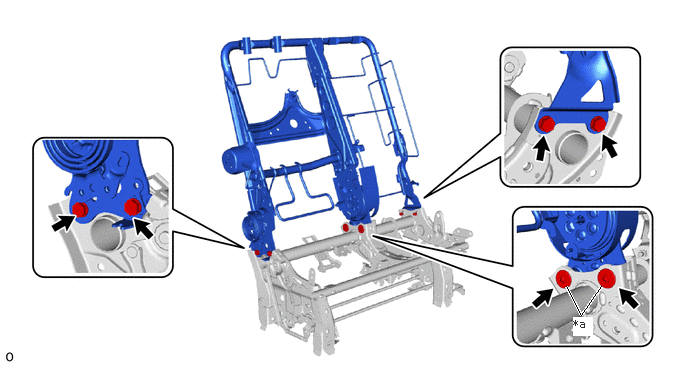

Hide 79303B 47.REMOVE NO. 3 SEATBACK FRAME SUB-ASSEMBLY RH

a.

Using a T55 "TORX" socket wrench, remove the 2 "TORX" bolts.

B547555C01
5.896,2.979 6.052,3.281 6.052,3.281 6.26,2.979 true 5.969,3.302 6.167,3.49 0.198,0.188 10 true *a
*a "TORX" Bolt - -



b.

Remove the 4 bolts and No. 3 seatback frame sub-assembly RH.


c.
B547556

Remove the No. 3 seat reclining adjuster cover sub-assembly RH.

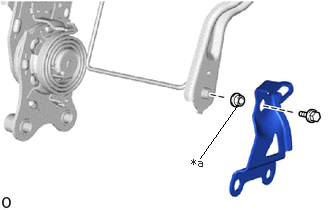

Hide 72569B 48.REMOVE SEATBACK STOPPER PLATE

a.
B547557C01
2.083,1.646 2.458,1.115 false 1.99,1.625 2.302,1.781 0.313,0.156 10 false *a
*a Bush


Remove the bolt, bush and seatback stopper plate.
