SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 60 Side)  REASSEMBLY

2.031,1.531 2.448,1.115 false 1.917,1.5 2.229,1.656 0.313,0.156 10 false *a

*a

Bush

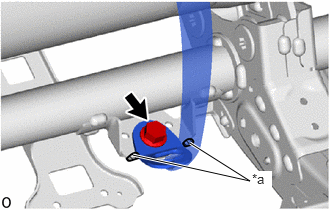

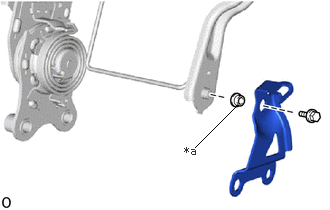

Install the seatback stopper plate with the bush and bolt.

Torque:

14.5 N*m (148 kgf*cm, 11 ft.*lbf)

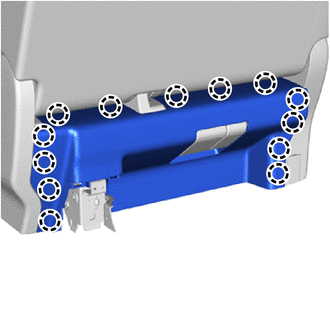

Install the reclining adjuster cover sub-assembly RH.

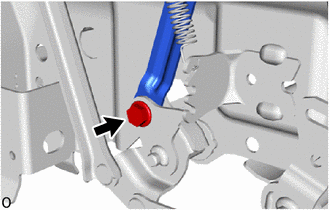

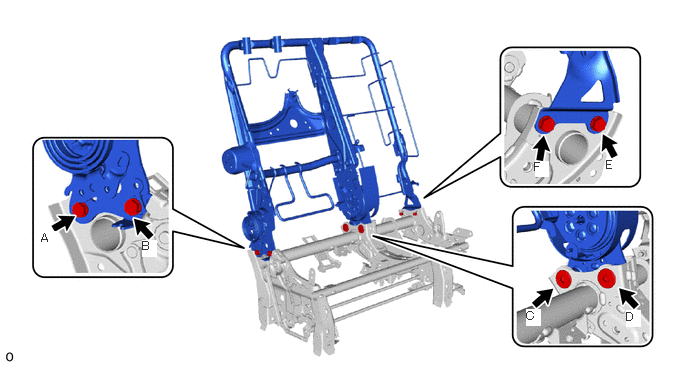

Using a T55 "TORX" socket wrench, temporarily install the No. 3 seatback frame sub-assembly RH with the "TORX" bolt C and "TORX" bolt D.

0.427,2.406 0.583,2.583 0.156,0.177 10 true A 6.521,3.229 6.677,3.406 0.156,0.177 10 true D 5.563,1.667 5.719,1.844 0.156,0.177 10 true F 6.313,1.646 6.469,1.823 0.156,0.177 10 true E 5.479,3.219 5.635,3.396 0.156,0.177 10 true C 1.479,2.49 1.635,2.667 0.156,0.177 10 true B

Pass the No. 3 seat No. 2 reclining adjusting cable assembly RH through the hole in the No. 3 seat leg sub-assembly RH.

2.427,1.969 2.052,1.208 true 2.458,1.875 2.708,2.031 0.25,0.156 10 false *a

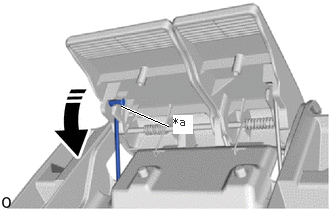

*a	Cable End
	Move in this Direction

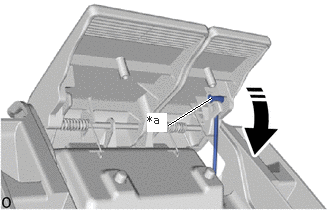

Connect the cable end moving the direction of the arrows in the illustration.

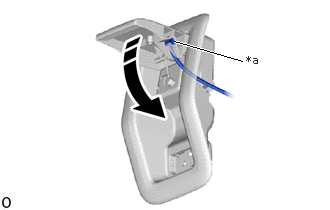

1.688,0.51 2.219,0.781 true 2.26,0.667 2.458,0.896 0.198,0.229 10 true *a

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

0.906,1.406 1.24,0.958 true 0.729,1.313 0.927,1.531 0.198,0.219 10 false *a

*a

Cable Tie

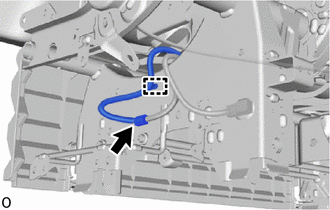

Install the No. 3 seat No. 2 reclining adjusting cable assembly RH with new cable tie.

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 to 10 mm (0.20 to 0.39 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie.

HINT:

Cutting tip shall not toward to pad side.

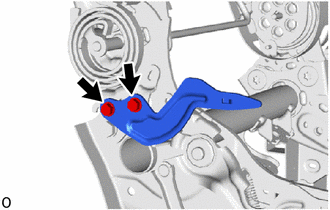

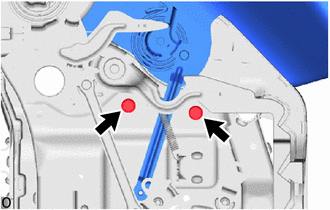

Install the No. 3 seat reclining control lever RH with the 2 bolts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

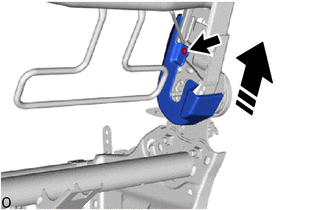

0,0 0,0 false

Install in this Direction

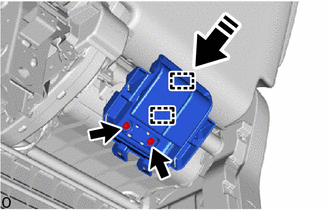

Install the rear No. 3 seat reclining adjuster inside cover RH with the screw as shown in the illustration.

Attach the guide.

Attach the guide and install the RH seat No. 2 reclining adjuster inside cover.

0,0 0,0 false

Install in this Direction

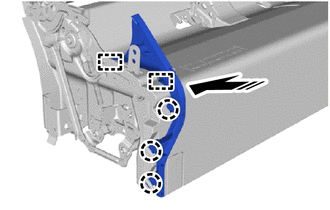

Attach the guide and claw as shown in the illustration.

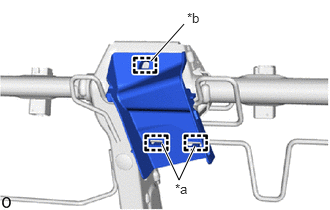

1.688,1.5 1.865,1.875 1.865,1.875 2.031,1.521 true 1.573,0.635 1.917,0.25 true 1.823,1.885 2.135,2.042 0.313,0.156 10 false *a 1.948,0.104 2.26,0.26 0.313,0.156 10 false *b

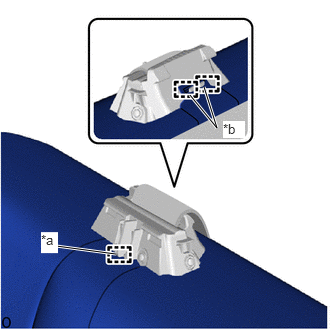

*a	Hook
*b	Guide

Attach the guide and hook and install the rear No. 3 seat No. 2 shoulder belt cover RH.

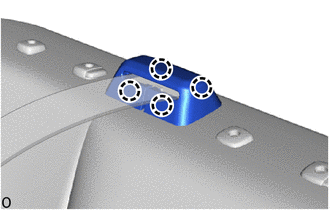

Attach the claw and install the rear No. 3 seat No. 1 shoulder belt cover RH.

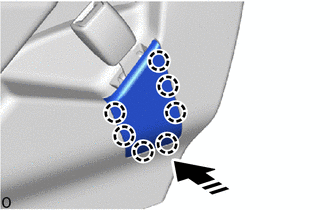

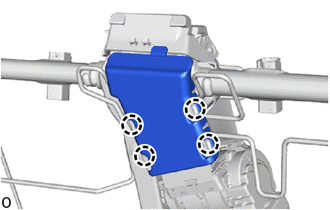

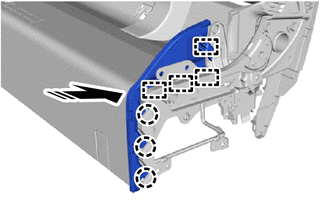

Attach the claw and install the side parts of No. 3 seat reclining adjuster cover sub-assembly RH with the 4 screws as shown in the illustration.

0,0 0,0 false

Install in this Direction

-

-

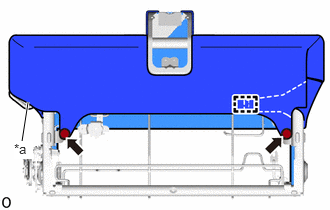

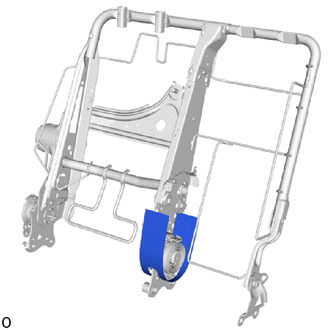

Attach the hook and install the rear No. 3 seat protector RH.

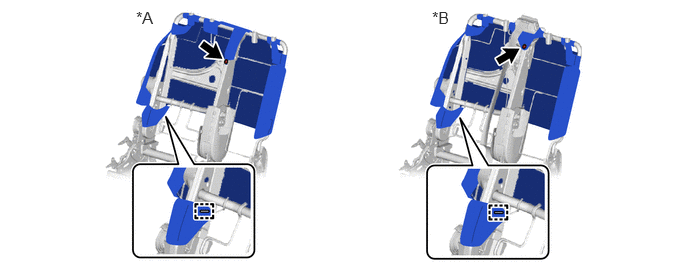

1.417,0.083 1.667,0.333 0.25,0.25 12 false *A 4.5,0.083 4.75,0.333 0.25,0.25 12 false *B

*A

w/o Center Headrest

*B

w/ Center Headrest

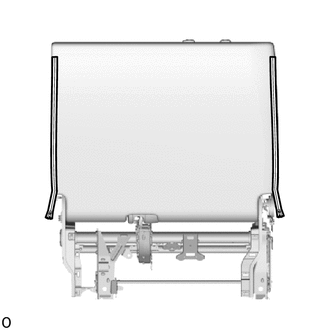

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

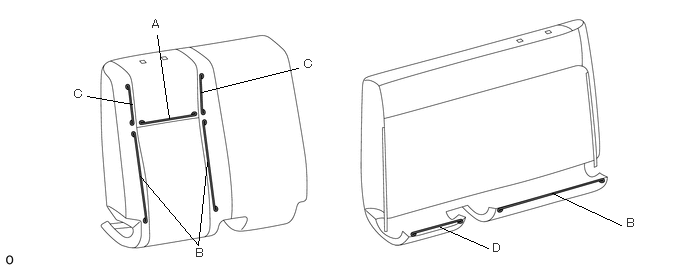

5.083,2.583 4.583,2.365 false 6.469,2.344 5.75,2.01 false 1.458,1.833 2.063,2.552 2.063,2.552 2.156,1.688 false 2.094,0.958 3.104,0.708 false 0.906,1 1.375,1.083 false 1.76,1.229 1.635,0.365 false 2.042,2.563 2.198,2.729 0.156,0.167 10 false B 1.583,0.177 1.74,0.344 0.156,0.167 10 false A 0.771,0.906 0.927,1.073 0.156,0.167 10 false C 3.167,0.594 3.323,0.76 0.156,0.167 10 false C 5.135,2.51 5.292,2.677 0.156,0.167 10 false D 6.531,2.25 6.688,2.417 0.156,0.167 10 false B

Dimensions:

A	210 mm (8.27 in.)	B	330 mm (1.08 ft.)
C	140 mm (5.51 in.)	D	210 mm (8.27 in.)

HINT:

The dimensions shown in the illustration are the length.

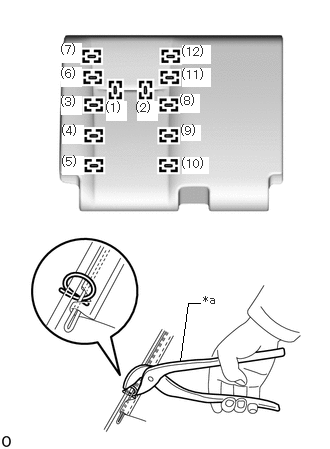

1.875,3.76 1.958,3.156 1.958,3.156 2.083,3.156 false 2.115,3.052 2.427,3.208 0.313,0.156 10 false *a 1.104,1.052 1.323,1.26 0.219,0.208 10 true (1) 1.417,1.052 1.635,1.26 0.219,0.208 10 true (2) 0.635,0.698 0.854,0.906 0.219,0.208 10 true (3) 0.635,0.448 0.854,0.656 0.219,0.208 10 true (4) 0.635,0.979 0.854,1.188 0.219,0.208 10 true (5) 0.646,1.292 0.865,1.5 0.219,0.208 10 true (6) 0.646,1.615 0.865,1.823 0.219,0.208 10 true (7) 1.896,0.708 2.115,0.917 0.219,0.208 10 true (8) 1.896,0.469 2.115,0.677 0.219,0.208 10 true (9) 1.875,0.99 2.167,1.208 0.292,0.219 10 true (10) 1.875,1.292 2.167,1.51 0.292,0.219 10 true (11) 1.844,1.615 2.135,1.833 0.292,0.219 10 true (12)

*a	Hog Ring Pliers

Using hog ring pliers, install the No. 3 seatback cover sub-assembly RH to the No. 3 seatback pad RH with the 12 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the No. 3 seatback cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 3 seatback cover sub-assembly RH.

w/ Center Headrest:

ii.

0.594,2.563 1.208,2.646 true 1.979,0.99 2.26,1.333 2.26,1.333 2.125,0.906 true 0.427,2.417 0.604,2.635 0.177,0.219 10 true *a 2.323,1.26 2.552,1.438 0.229,0.177 10 true *b

*a	Guide
*b	Hook

Attach the guide and hook.

w/o Center Headrest:

i.

0,0 0,0 false

Install in this Direction

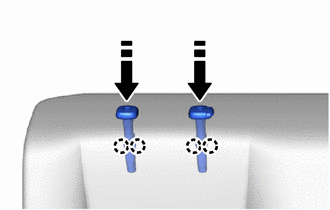

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.

w/ Center Headrest:

i.

0,0 0,0 false

Install in this Direction

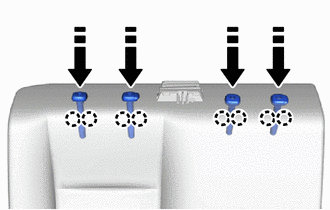

Attach the claw and Install the 4 rear seat headrest supports as shown in the illustration.

1.927,3.771 2.229,3.146 false 2.26,3.01 2.469,3.188 0.208,0.177 10 false *a 1.146,1.104 1.354,1.281 0.208,0.177 10 true (3) 1.615,1.104 1.823,1.281 0.208,0.177 10 true (1) 2.073,1.115 2.281,1.292 0.208,0.177 10 true (2) 2.51,1.104 2.719,1.281 0.208,0.177 10 true (4) 0.729,1.104 0.938,1.281 0.208,0.177 10 true (5)

*a	Hog Ring Pliers

Using hog ring pliers, install the separate type rear seatback cover with pad with the 5 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 3 seatback cover sub-assembly RH.

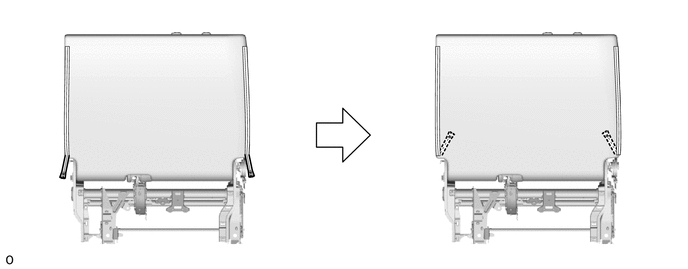

Close the 2 fasteners.

Insert the 2 fasteners.

0.781,1.646 1.135,1.271 true 0.677,1.646 0.885,1.844 0.208,0.198 10 true *a

*a

Slit

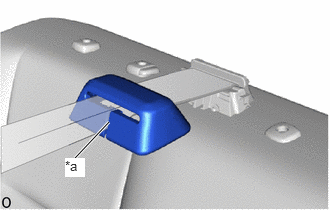

Pass the seat belt through the slit of the rear seat shoulder belt cover LH.

Attach the claw and install the rear seat shoulder belt cover LH.

0,0 0,0 false

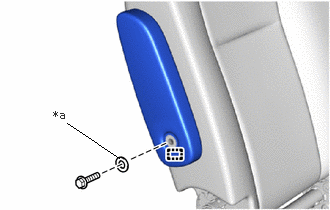

*a	Washer Plate

Attach the guide.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 3 seat No. 1 armrest cap RH as shown in the illustration.

1.385,1.615 2.604,1.885 2.604,1.885 1.979,1.49 true 2.625,1.781 2.833,1.958 0.208,0.177 10 true *a

*a	Protruding Part

Install the anchor of the rear seat 3 point type belt assembly RH with the bolt.

Torque:

42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor of the rear seat 3 point type belt assembly RH to overlap the protruding part.

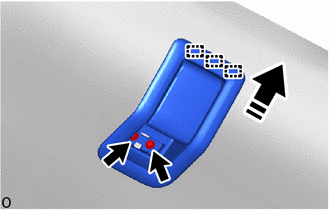

Install the No. 3 seat inner reclining cover RH with the 2 screws.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

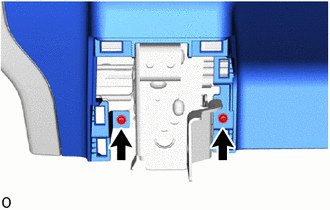

Install the No. 3 seat No. 1 leg cover sub-assembly RH with the 2 screws.

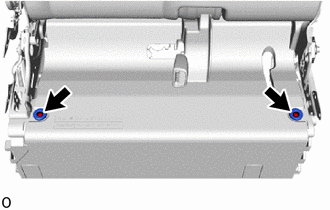

Install the 2 rear No. 3 seat cushion supports RH with the 2 screws.

0,0 0,0 false

Install in this Direction

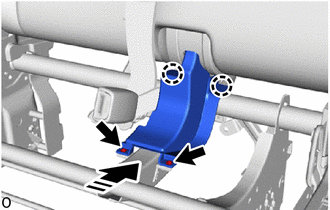

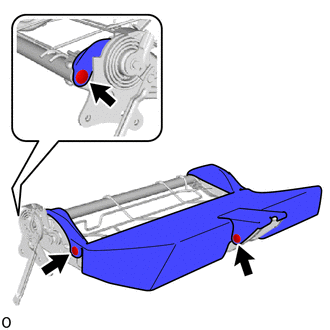

Attach the guide and claw and install the rear No. 1 seat inner cushion shield LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide and claw and install the rear No. 1 seat inner cushion shield RH as shown in the illustration.

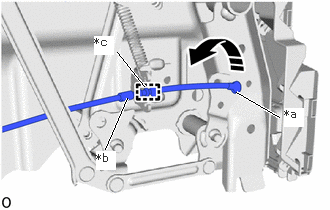

0.917,1.344 1.563,1.083 true 1.875,1.771 2.24,1.615 true 2.51,1.615 2.854,1.469 true 0.708,1.219 0.917,1.406 0.208,0.188 10 true *a 2.885,1.344 3.094,1.521 0.208,0.177 10 true *b 1.698,1.667 1.896,1.896 0.198,0.229 10 true *c

*a	Cable End
*b	Bule Cable Color
*c	Attachment Middle Notch
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

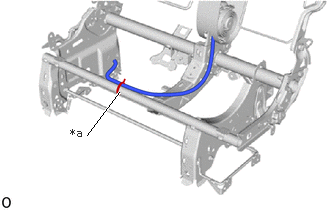

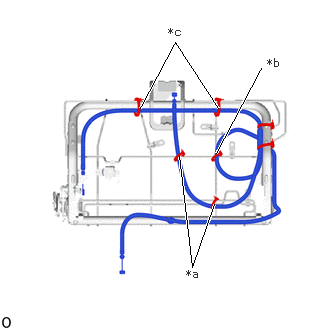

2.229,2.125 2,2.781 2,2.781 1.865,1.625 true 2.25,1.594 2.719,0.708 true 1.458,1.125 1.823,0.438 1.823,0.438 2.271,1.125 true 1.938,2.781 2.25,2.938 0.313,0.156 10 false *a 2.781,0.583 3.094,0.74 0.313,0.156 10 false *b 1.75,0.26 2.063,0.417 0.313,0.156 10 false *c

*a	Yellow Locating Tape Color
*b	Red Locating Tape Color
*c	Green Locating Tape Color

Install the No. 3 seat No. 1 reclining adjusting cable assembly RH with the 7 new cable ties.

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 to 10 mm (0.20 to 0.39 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie.

HINT:

Cutting tip shall not toward to pad side.

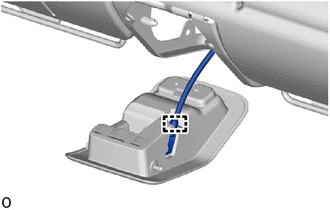

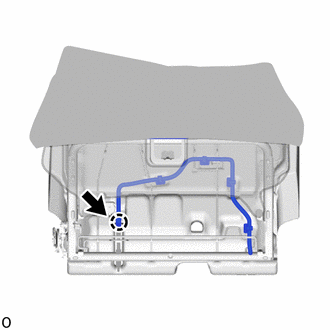

Attach the clamp and install the rear No. 4 seat wire RH.

Install the 3 clips.

Install the 3 clips.

w/ Center Headrest:

i.

0.229,1.469 0.292,1.063 true 0.146,1.469 0.344,1.656 0.198,0.188 10 true *a

*a

Slit

Pass the No. 3 seat cushion frame sub-assembly through the slit of the No. 3 seat cushion protector RH.

1.75,1.594 1.458,0.604 1.458,0.604 2.51,1.281 false 2.875,2.333 2.479,1.708 true 2.865,2.344 3.021,2.542 0.156,0.198 10 false A 1.385,0.448 1.542,0.646 0.156,0.198 10 false B

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

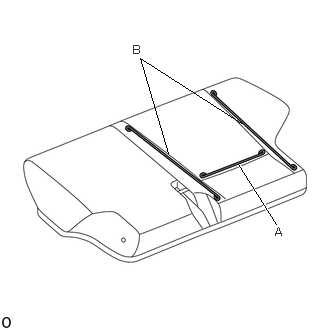

Dimensions:

A	210 mm (8.27 in.)
B	400 mm (1.31 ft.)

HINT:

The dimensions shown in the illustration are the length.

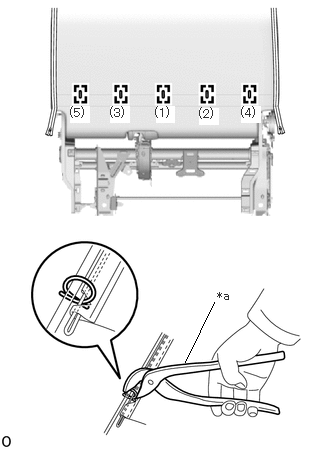

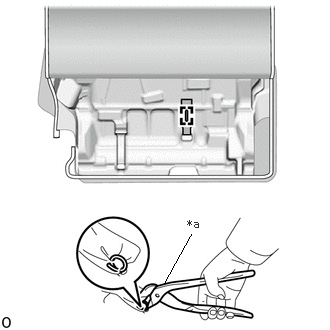

1.865,3.771 2.167,3.219 false 2.198,3.073 2.51,3.229 0.313,0.156 10 false *a 1.01,1.031 1.229,1.229 0.219,0.198 10 true (1) 1.375,1.031 1.594,1.229 0.219,0.198 10 true (2) 1.906,0.646 2.125,0.844 0.219,0.198 10 true (6) 1.927,1.125 2.146,1.323 0.219,0.198 10 true (7) 1.969,1.583 2.188,1.781 0.219,0.198 10 true (8) 0.479,1.573 0.698,1.771 0.219,0.198 10 true (5) 0.49,1.135 0.708,1.333 0.219,0.198 10 true (4) 0.5,0.615 0.719,0.813 0.219,0.198 10 true (3)

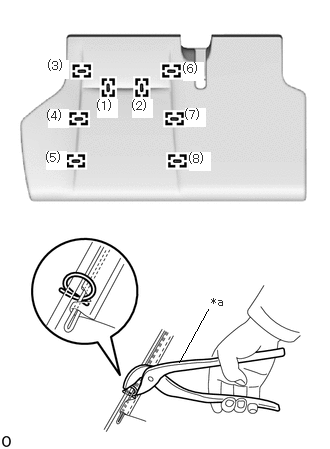

*a	Hog Ring Pliers

Using hog ring pliers, install the new 8 hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the No. 3 seat cushion cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 3 seat cushion cover sub-assembly RH.

1.708,2.948 1.99,2.438 false 1.948,2.26 2.26,2.417 0.313,0.156 10 false *a

*a	Hog Ring Pliers

Using hog ring pliers, install the No. 3 seat cushion cover sub-assembly RH to the No. 3 seat cushion pad RH with the new hog ring.

NOTICE:

Be careful not to damage the No. 3 seat cushion cover sub-assembly RH.

w/o Center Headrest:

i.

Attach the claw.

w/ Center Headrest:

i.

Attach the clamp and claw.

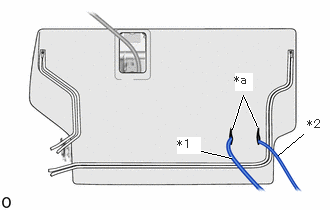

2.417,1.344 2.531,0.99 2.531,0.99 2.677,1.313 true 2.01,1.552 2.406,1.646 true 2.896,1.615 3.156,1.396 false 1.844,1.427 2.094,1.604 0.25,0.177 10 true *1 3.198,1.219 3.427,1.396 0.229,0.177 10 false *2 2.438,0.76 2.625,0.948 0.188,0.188 10 true *a

*1	Rear No. 4 Seat Wire RH
*2	No. 3 Seat No. 1 Reclining Adjusting Cable Assembly RH
*a	Slit

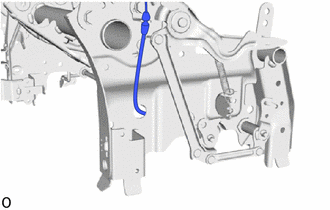

Pass the No. 3 seat No. 1 reclining adjusting cable assembly RH and rear No. 4 seat wire RH through the slit of the separate type rear seat cushion cover with pad.

Close the 2 fasteners.

Insert the 2 fasteners.

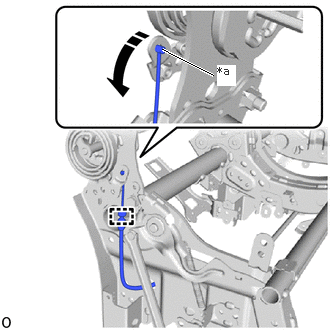

1.813,0.427 2.521,0.635 true 2.563,0.552 2.875,0.708 0.313,0.156 10 false *a

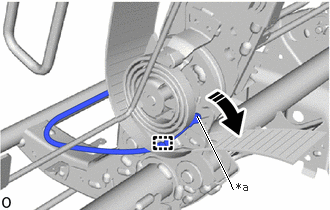

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

Attach the cable clamp.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration to attach the guide.

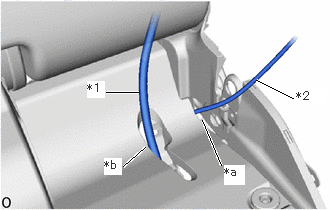

1.104,0.958 1.438,0.958 true 2.667,0.833 3.052,1.021 true 1.281,1.729 1.51,1.531 true 2.302,1.719 2.104,1.25 true 0.906,0.844 1.094,1.01 0.188,0.167 10 true *1 3.083,0.927 3.396,1.083 0.313,0.156 10 true *2 1.083,1.646 1.271,1.813 0.188,0.167 10 true *b 2.333,1.719 2.552,1.917 0.219,0.198 10 true *a

*1	Rear No. 4 Seat Wire RH
*2	No. 3 Seat No. 1 Reclining Adjusting Cable Assembly RH
*a	Slit
*b	Hole

Pass the rear No. 4 seat wire RH and No. 3 seat No. 1 reclining adjusting cable assembly RH through the hole and slit as shown in the illustration.

0.365,1.698 0.594,1.177 false 2.229,1.875 2.552,1.438 false 0.198,1.594 0.51,1.75 0.313,0.156 10 false *a 2.031,1.781 2.344,1.979 0.313,0.198 10 false *a

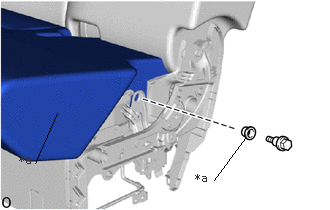

*a

Bush

Install the bush and bolt.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the 2 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the bolt.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

Attach the clamp.

Install the rear seat cushion assembly with the new cable tie.

4.302,2.24 4.594,2.542 true 3.979,1.896 4.26,2.25 true 4.625,2.427 4.823,2.615 0.198,0.188 10 true *a 3.771,1.75 3.979,1.927 0.208,0.177 10 true *b

*a

Cable Tie

*b

Yellow Locating Tape Color

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 to 10 mm (0.20 to 0.39 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie.

HINT:

Cutting tip shall not toward to pad side.

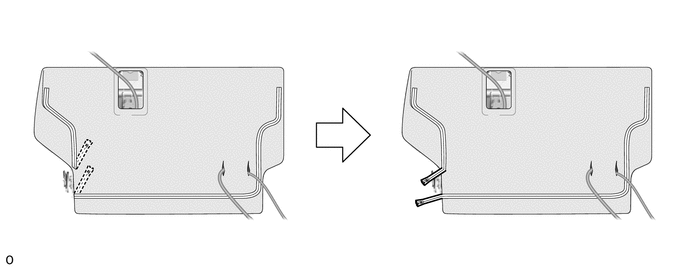

Pass the No. 3 seat slide cable assembly RH through the hole in the No. 3 seat leg sub-assembly LH.

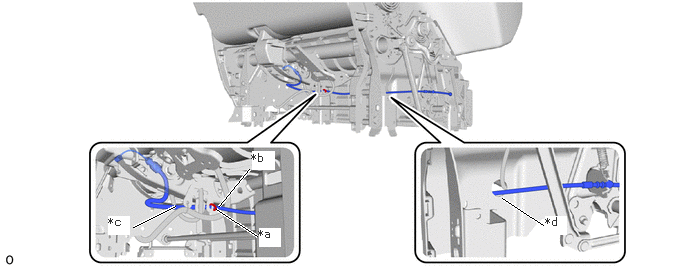

1.385,2.365 1.823,2.146 true 5.229,2.063 5.656,2.344 true 2.25,2.177 2.677,2.458 true 2.281,2.146 2.594,1.76 true 2.688,2.365 2.917,2.573 0.229,0.208 10 true *a 5.677,2.24 5.906,2.448 0.229,0.208 10 true *d 1.125,2.24 1.354,2.448 0.229,0.208 10 true *c 2.615,1.573 2.854,1.76 0.24,0.188 10 true *b

*a	Cable Tie	*b	Yellow Locating Tape Color
*c	Pass Through Between The Rear Seat Inner Belt Assembly Wire Harness	*d	Hole of The No. 3 seat leg sub-assembly LH

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 to 10 mm (0.20 to 0.39 in.)
*c	Correct
*d	Incorrect

Cut off the end of the cable tie.

HINT:

Cutting tip shall not toward to pad side.

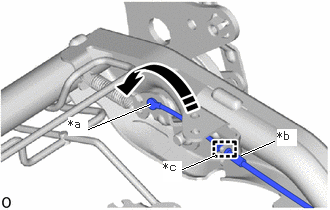

1.094,1.552 1.323,1.021 true 1.5,0.896 1.219,0.542 true 2.906,1.219 2.458,0.958 true 1,1.573 1.208,1.771 0.208,0.198 10 true *b 2.958,1.115 3.167,1.313 0.208,0.198 10 true *a 0.979,0.365 1.188,0.563 0.208,0.198 10 true *c

*a	Cable End
*b	Green Cable Color
*c	Attachment Middle Notch
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

0,0 0,0 false

Install in this Direction

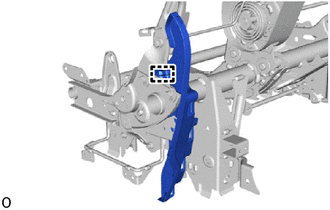

Attach the claw and install the RH seat reclining adjuster inside cover as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide and clip as shown in the illustration.

Attach the claw.

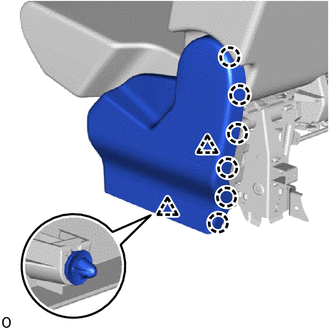

Attach the clip and claw and install the RH seat rear No. 3 seat reclining cover.

0,0 0,0 false

Install in this Direction

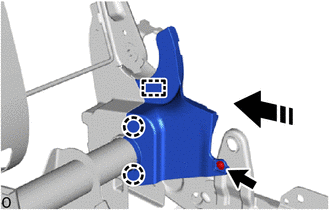

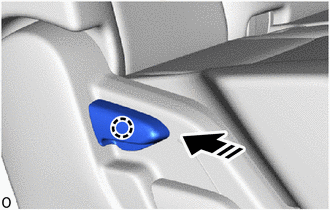

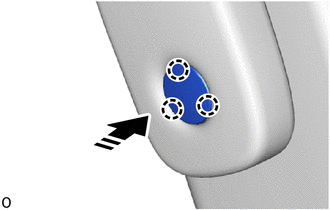

Attach the claw and install the No. 3 seat adjuster cover cap RH as shown in the illustration.

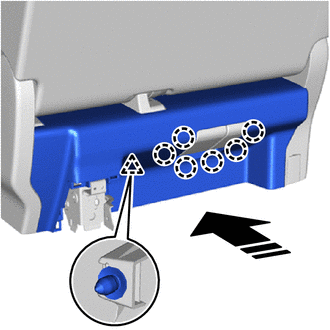

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration and attach the guide.

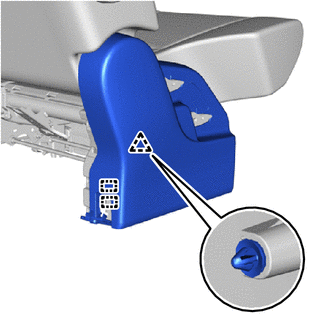

Attach the claw.

Attach the clip and guide.

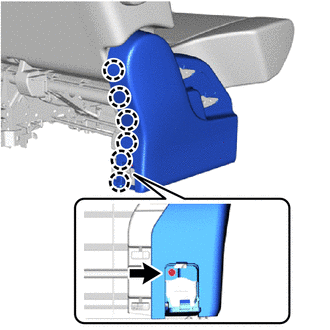

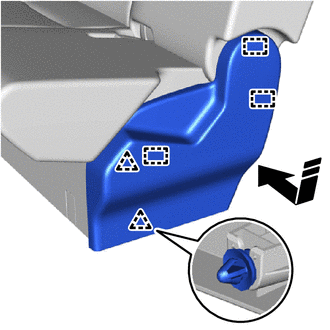

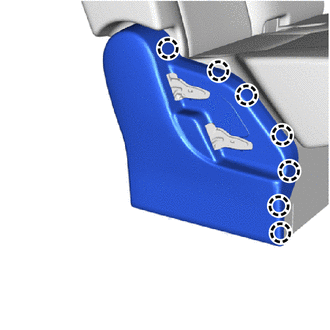

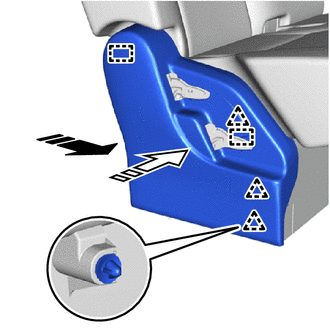

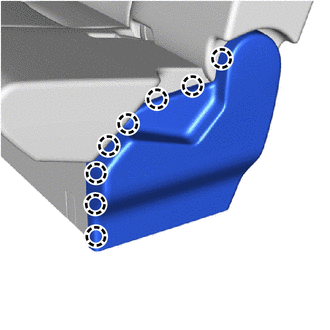

Attach the claw and install the No. 3 seat leg cover sub-assembly RH with the screw.

0,0 0,0 false

Install in this Direction

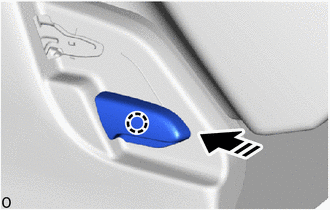

Attach the claw and install the No. 3 seat track handle control lever RH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 3 seat reclining adjuster release handle RH as shown in the illustration.

1.75,1.302 2.198,1.021 true 1.531,1.177 1.74,1.365 0.208,0.188 10 true *a

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

1.75,1.313 1.26,1.104 true 1.802,1.198 2.01,1.385 0.208,0.188 10 true *a

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

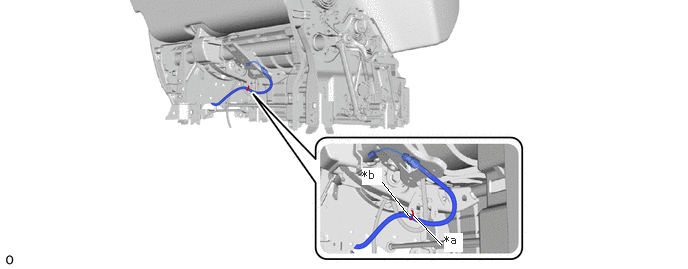

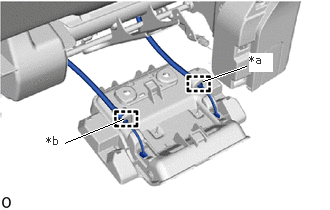

0.667,1.49 1.281,1.24 true 2.115,0.844 2.563,0.688 true 2.594,0.552 2.833,0.75 0.24,0.198 10 true *a 0.479,1.396 0.677,1.594 0.198,0.198 10 true *b

*a	Pink Cable Color
*b	Black Cable Color

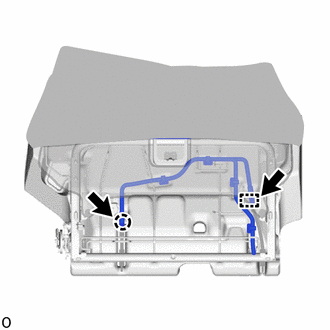

Attach the cable clamp.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration to attach the guide.

0,0 0,0 false

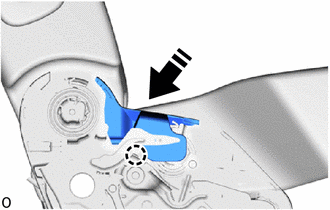

Install in this Direction

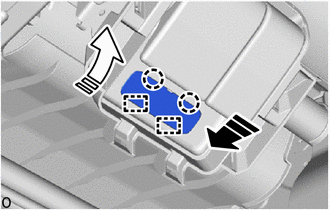

Attach the claw as shown in the illustration.

Attach the claw and clip.

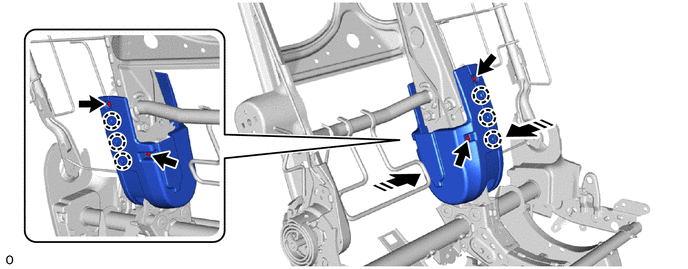

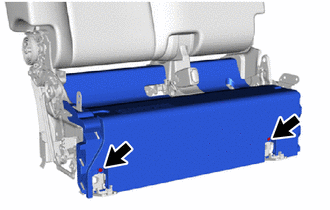

Install the rear No. 3 seat inner belt cover RH with the 2 screws.
