RM35X0E _58 Vehicle Interior _078601 SEAT _0396039 REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side) A

SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 73316B 1.REMOVE REAR NO. 3 SEAT INNER BELT COVER LH

a.
B547392

Remove the 2 screws.


b.

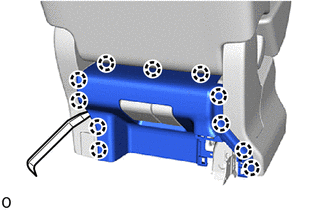

B547393

Using moulding remover A, detach the claw.


c.

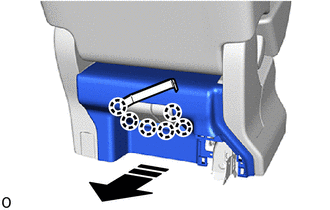

B547395
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 3 seat inner belt cover LH as shown in the illustration.


Hide 72345X 2.REMOVE NO. 4 SEAT STAND FRAME CAP LH

a.

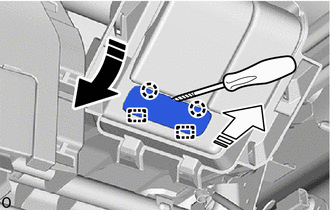

B547397
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw in the removal direction (1) shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the No. 4 seat stand frame cap LH.


Hide 72057G 3.REMOVE REAR NO. 1 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY LH

a.

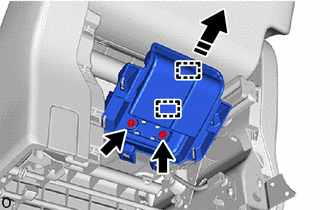

B547399
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide as shown in the illustration.


c.
B547401

Detach the cable clamp.


d.

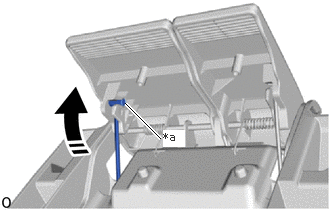

B547481C01
1.302,1.073 1.667,1.438 true 1.698,1.354 1.917,1.531 0.219,0.177 10 true *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration.


e.

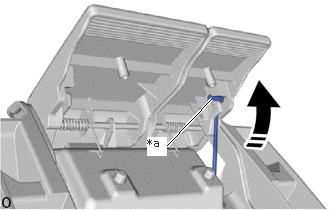

B547483C01
1.729,1.521 2.198,1.031 true 1.531,1.417 1.74,1.625 0.208,0.208 10 true *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration and remove the rear No. 1 seat lock control lever sub-assembly LH.


Hide 72526M 4.REMOVE NO. 3 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

a.

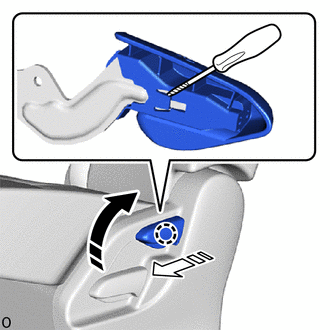

B547402
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 3 seat reclining adjuster release handle LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72216D 5.REMOVE NO. 3 SEAT TRACK HANDLE CONTROL LEVER LH

a.

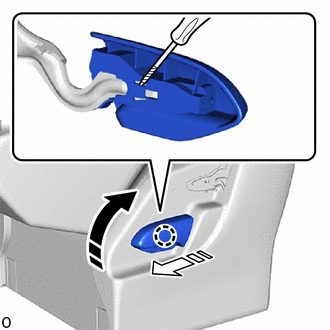

B547404
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the No. 3 seat track handle control lever LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 79076S 6.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY LH

a.

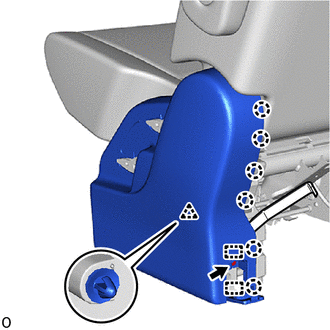

B547408

Remove the screw.


b.

Using moulding remover A, detach the claw and guide.


c.

Detach the clip.


d.

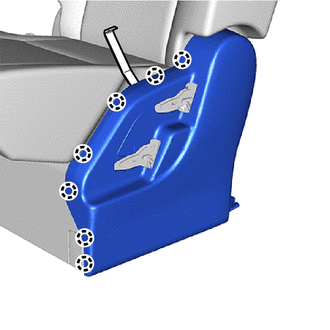

B551342

Using moulding remover A, detach the claw.


e.

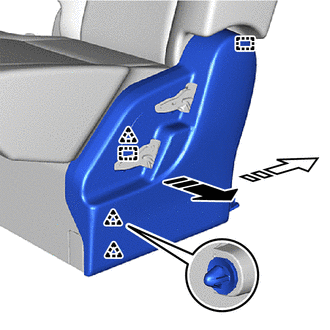

B554790
0,0 0,0 false
V113147

Remove in this Direction(1)
V113148

Remove in this Direction(2)


Pull in the removal direction (1) and detach the clip and guide as shown in the illustration.


f.

Pull in the removal direction (2) and detach the guide and remove the No. 3 seat leg cover sub-assembly LH as shown in the illustration.


Hide 79076R 7.REMOVE NO. 3 SEAT NO. 2 INNER LEG COVER SUB-ASSEMBLY

a.

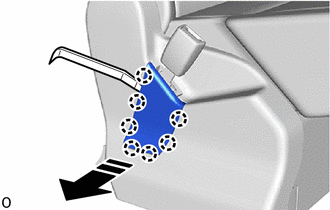

B547410
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 3 seat No. 2 inner leg cover sub-assembly as shown in the illustration.


Hide 79076Q 9.REMOVE NO. 3 SEAT NO. 1 INNER LEG COVER SUB-ASSEMBLY

a.

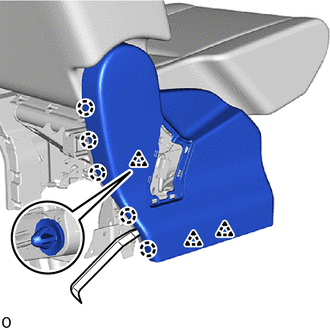

B547415

Using moulding remover A, detach the claw.


b.

Detach the clip.


c.

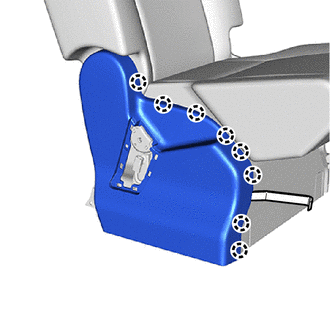

B551346

Using moulding remover A, detach the claw.


d.

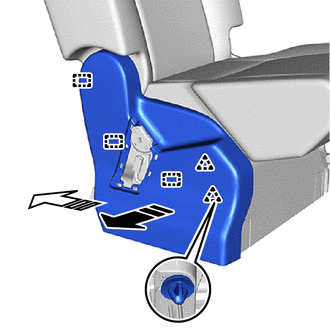

B554793
0,0 0,0 false
V113147

Remove in this Direction(1)
V113148

Remove in this Direction(2)


Pull in the removal removal direction (1) and detach the clip and guide as shown in the illustration.


e.

Pull in the removal removal direction (2) and detach the guide and remove the No. 3 seat No. 1 inner leg cover sub-assembly as shown in the illustration.


Hide 71H76K 10.REMOVE REAR NO. 3 SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

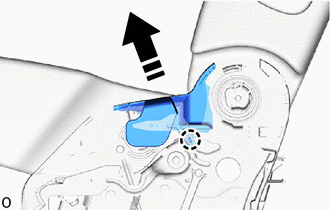

B547419
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the rear NO. 3 seat reclining adjuster inside cover LH as shown in the illustration.


Hide 72620Q 11.REMOVE NO. 3 SEAT SLIDE CABLE ASSEMBLY LH

a.

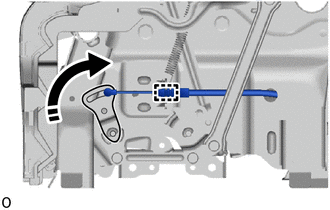

B547423
1.656,1.563 1.125,0.938 true 1.698,1.469 1.906,1.656 0.208,0.188 10 true *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


b.

Disconnect the cable end moving the direction of the arrow in the illustration.


c.

Pass the No. 3 seat slide cable assembly LH through the hole in the No. 3 seat leg sub-assembly LH.


d.

Remove the No. 3 seat slide cable assembly LH.


Hide 12.REMOVE REAR SEAT CUSHION ASSEMBLY

a.

Detach the clamp.

B547421


b.
B547422

Remove the bolt.


c.
B547425

Remove the 2 bolts.


d.
B547426
0.365,1.698 0.594,1.177 false 0.302,1.708 0.615,1.865 0.313,0.156 10 false *a
*a Bush


Remove the bolt and bush.


e.
B547427
0.552,0.49 0.979,0.604 false 1.302,1.042 1.729,0.958 true 1.5,1.5 1.885,1.667 false 0.396,1.094 0.927,0.938 false 1.76,0.833 2.01,1.01 0.25,0.177 10 true *1 0.354,0.323 0.667,0.479 0.313,0.156 10 false *2 1.917,1.542 2.167,1.719 0.25,0.177 10 true *b 0.208,0.99 0.521,1.146 0.313,0.156 10 false *a
*1 Rear No. 4 Seat Wire LH
*2 No. 3 Seat Reclining Adjusting Cable Assembly LH
*a Slit
*b Hole


Pass the rear No. 4 seat wire LH and No. 3 seat reclining adjusting cable assembly LH through the hole and slit as shown in the illustration.


f.

Remove the rear seat cushion assembly.


Hide 72345U 13.REMOVE NO. 3 SEAT STAND FRAME CAP RH

a.

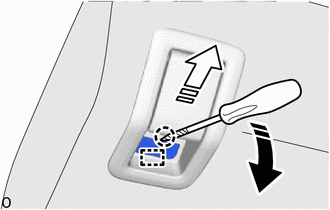

B547428
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw in the removal direction (1) shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



b.

Pull in the removal direction (2) shown in the illustration and detach the guide and remove the No. 3 seat stand frame cap RH.


Hide 72057F 14.REMOVE REAR NO. 2 SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH

a.

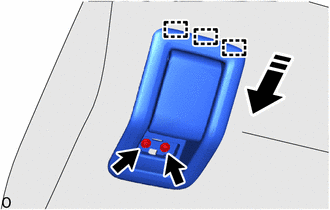

B547431
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide as shown in the illustration.


c.
B547432

Detach the cable clamp.


d.

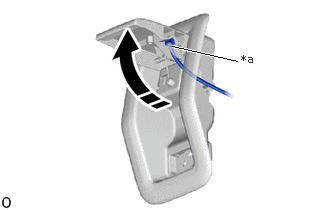

B547517C01
1.792,0.479 2.469,0.635 true 2.51,0.542 2.823,0.698 0.313,0.156 10 false *a
*a Cable End
V113147

Move in this Direction


Disconnect the cable end moving the direction of the arrow in the illustration and remove the rear No. 2 seat lock control lever sub-assembly RH.


Hide 15.REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

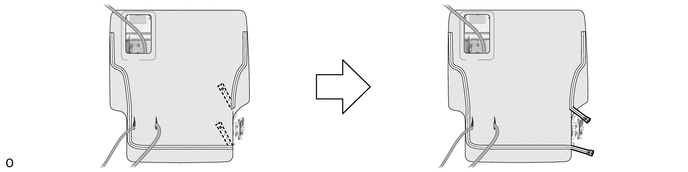

a.

Pull out the 2 fasteners.

B547433


b.
B547435

Open the 2 fasteners.


c.
B547436
1.219,1.521 1.333,1.167 1.333,1.167 1.5,1.5 true 1.469,1.802 1.865,1.896 true 0.708,1.802 0.969,1.833 false 1.917,1.792 2.167,1.969 0.25,0.177 10 true *1 0.5,1.677 0.813,1.833 0.313,0.156 10 false *2 1.25,1 1.438,1.188 0.188,0.188 10 true *a
*1 Rear No. 4 Seat Wire LH
*2 No. 3 Seat Reclining Adjusting Cable Assembly LH
*a Slit


Pass the No. 3 seat reclining adjusting cable assembly LH and rear No. 4 seat wire LH through the slit of the separate type rear seat cushion cover with pad.


d.
B547437

Disconnect the connector.


e.

Using a thin-bladed screwdriver, detach the claw and remove the separate type rear seat cushion cover with pad.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 79032B 16.REMOVE COVER SUB-ASSEMBLY LH

a.
B547438

Remove the 8 hog rings and cover sub-assembly LH from the No. 3 seat cushion pad LH.

NOTICE:

Be careful not to damage the cover sub-assembly LH.



Hide 17.REMOVE SEAT COVER WIRE

a.
B548314

Remove the seat cover wire.


Hide 71697G 18.REMOVE REAR NO. 3 SEAT CUSHION PROTECTOR LH

a.
B554773

Remove the clip.


b.

Detach the hook.


c.
B554799

Remove the 3 clips.


d.
B554800

Remove the 4 clips and rear No. 3 seat cushion protector LH.


Hide 82196B 19.REMOVE REAR NO. 4 SEAT WIRE LH

a.
B547441

Detach the clamp and remove the rear No. 4 seat wire LH.


Hide 72570L 20.REMOVE NO. 3 SEAT RECLINING ADJUSTING CABLE ASSEMBLY LH

a.

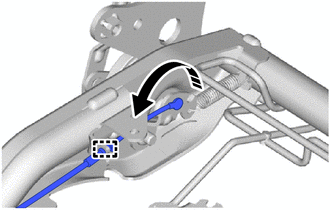

B551358

Cut off the 5 cable ties.


b.
B551357
1.875,1.073 2.427,1.323 true 2.479,1.219 2.667,1.427 0.188,0.208 10 true *a
*a Cable End
V113147

Move in this Direction


Detach the cable clamp.


c.

Disconnect the cable end moving the direction of the arrow in the illustration and remove the No. 3 seat reclining adjusting cable assembly LH.


Hide 71868S 21.REMOVE NO. 3 SEAT NO. 1 INNER CUSHION SHIELD LH

a.

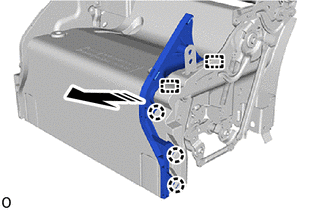

B554796
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and claw and remove the No. 3 seat No. 1 inner cushion shield LH as shown in the illustration.


Hide 71868R 22.REMOVE NO. 3 SEAT NO. 1 INNER CUSHION SHIELD RH

a.

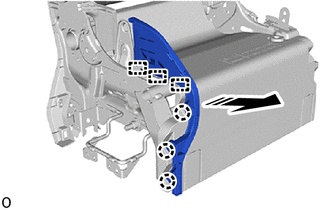

B554798
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and claw and remove the front No. 3 seat No. 1 inner cushion shield RH as shown in the illustration.


Hide 71396M 23.REMOVE REAR NO. 3 SEAT CUSHION SUPPORT LH

a.
B547447

Remove the 2 screws and 2 rear No. 3 seat cushion supports LH.


Hide 79078C 24.REMOVE NO. 3 SEAT LEG COVER SUB-ASSEMBLY

a.
B547448

Remove the 2 screws and No. 3 seat leg cover sub-assembly.


Hide 72848H 25.REMOVE NO. 3 SEAT NO. 1 ARMREST CAP LH

a.

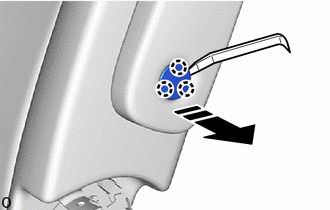

B547449
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 3 seat No. 1 armrest cap LH as shown in the illustration.


b.

w/ Center Armrest:

i.

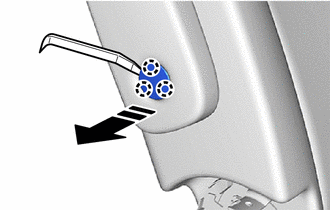

B553739
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the No. 3 seat No. 1 armrest cap LH.



Hide 72890F 26.REMOVE NO. 3 SEAT ARMREST ASSEMBLY LH

a.
B547451
2.135,1.646 2.74,1.396 false 2.823,1.271 3.135,1.427 0.313,0.156 10 false *a
*a Washer Plate


Remove the bolt, washer plate and No. 3 seat armrest assembly LH.


Hide 72880G 27.REMOVE NO. 3 SEAT ARMREST ASSEMBLY RH (w/ Center Armrest)

HINT:

Use the same procedure described for the LH side.


Hide 28.REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

a.
B547455

Remove the 3 hog rings.


b.

Pull out the 2 fasteners.

B547456


c.
B547458

Open the 2 fasteners.


d.

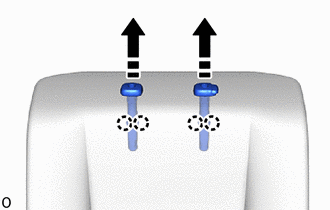

B547459
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.


e.

Remove the separate type rear seatback cover with pad.


Hide 79034A 29.REMOVE NO. 3 SEATBACK COVER SUB-ASSEMBLY LH

a.
B547461

Remove the 12 hog rings and No. 3 seatback cover sub-assembly LH from the No. 3 seatback pad LH.

NOTICE:

Be careful not to damage the No. 3 seatback cover sub-assembly LH.



Hide 30.REMOVE SEAT COVER WIRE

a.

Remove the seat cover wire.

B548312


Hide 71697E 31.REMOVE NO. 3 SEATBACK PROTECTOR LH

a.

Detach the hook and remove the No. 3 seatback protector LH.

B548355


Hide 71H76K 32.REMOVE REAR NO. 3 SEAT RECLINING ADJUSTER INSIDE COVER LH

a.

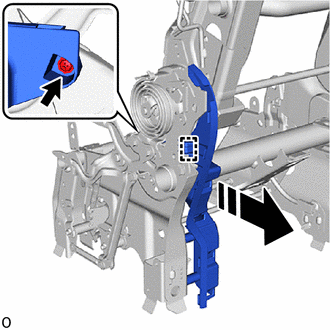

B547462
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the guide and remove the rear No. 3 seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71T75 33.REMOVE RECLINING ADJUSTER INSIDE COVER RH

a.

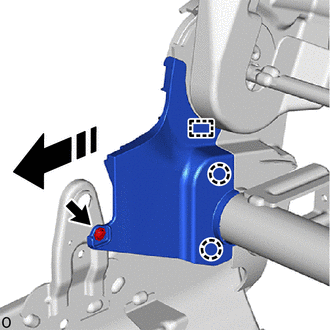

B547464
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw.


b.

Detach the claw and guide and remove the reclining adjuster inside cover RH as shown in the illustration.


Hide 71H75K 34.REMOVE REAR NO. 3 SEAT RECLINING ADJUSTER INSIDE COVER RH

a.
B547466

Detach the guide and remove the rear No. 3 seat reclining adjuster inside cover RH.


Hide 71T76J 35.REMOVE NO. 3 SEATBACK RECLINING ADJUSTER INSIDE COVER LH

a.

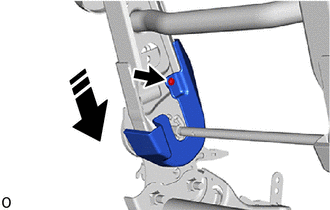

B547467
0,0 0,0 false
V113147

Remove in this Direction


Remove the screw and No. 3 seatback reclining adjuster inside cover LH as shown in the illustration.


Hide 71T75G 36.REMOVE NO. 3 SEATBACK RECLINING ADJUSTER INSIDE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72574A 37.REMOVE RECLINING CONTROL LEVER LH

a.
B547469

Remove the 2 bolts and reclining control lever LH.


Hide 79304B 38.REMOVE NO. 3 SEATBACK FRAME SUB-ASSEMBLY LH

a.

Remove the 4 bolts and No. 3 seatback frame sub-assembly LH.

B547470
