SEAT  REAR SEAT ASSEMBLY(for 60/40 Split Seat Type 40 Side)  REASSEMBLY

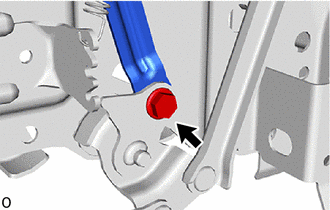

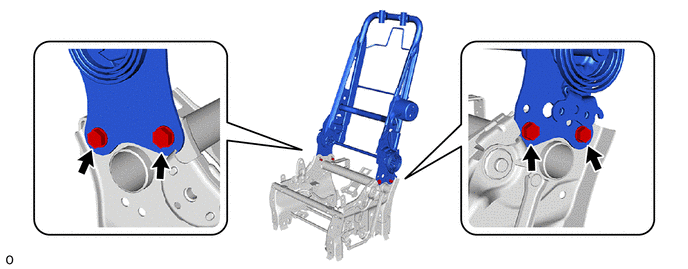

Temporarily install the No. 3 seatback frame sub-assembly LH with the bolt D.

0.74,1.823 0.896,2 0.156,0.177 10 true A 1.625,1.885 1.781,2.063 0.156,0.177 10 true B 6.208,1.781 6.365,1.958 0.156,0.177 10 true C 5.479,1.802 5.635,1.979 0.156,0.177 10 true D

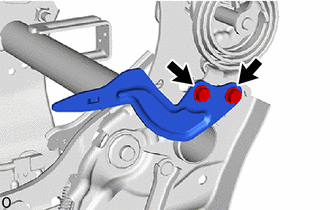

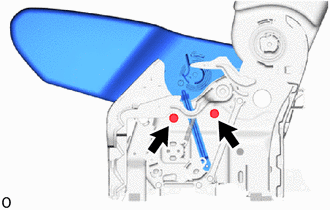

Install the reclining control lever LH with the 2 bolts.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

0,0 0,0 false

Install in this Direction

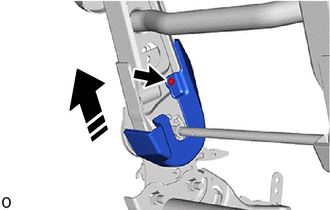

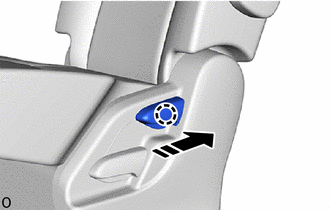

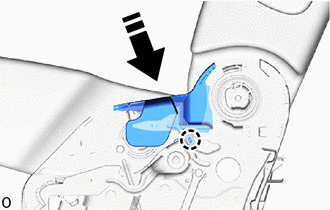

Install the No. 3 seatback reclining adjuster inside cover LH with the screw as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

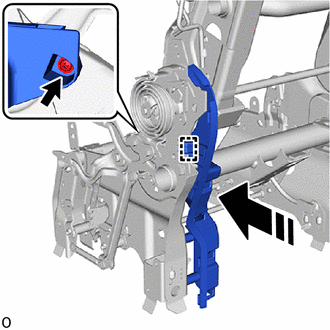

Attach the guide and install the rear No. 3 seat reclining adjuster inside cover RH.

0,0 0,0 false

Install in this Direction

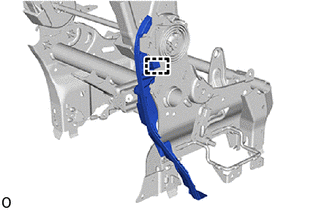

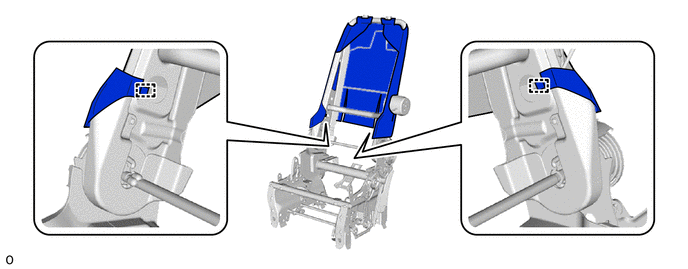

Attach the claw and guide as shown in the illustration.

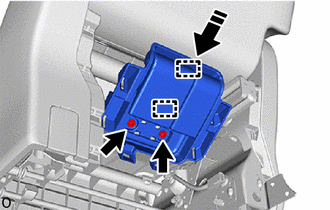

Attach the hook and install the No. 3 seatback protector LH.

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

2.469,1.76 2.021,2.479 2.021,2.479 1.76,1.74 true 4.323,2.531 4.74,2.531 4.74,2.531 4.823,2.198 false 2.146,1.198 2.302,0.438 true 2.521,1.042 2.969,1 true 1.344,0.896 1.771,0.979 true 2.271,0.271 2.417,0.448 0.146,0.177 9 false A 1.969,2.49 2.115,2.667 0.146,0.177 9 false B 4.188,2.438 4.333,2.615 0.146,0.177 9 false D 3.01,0.906 3.156,1.083 0.146,0.177 9 false C 1.219,0.792 1.365,0.969 0.146,0.177 9 false C

Dimensions:

A	210 mm (8.27 in.)	B	330 mm (1.08 ft.)
C	140 mm (5.51 in.)	D	350 mm (1.15 ft.)

HINT:

The dimensions shown in the illustration are the length.

0.917,3.156 1.458,2.958 false 0.75,3.063 1.063,3.219 0.313,0.156 10 false *a 1.479,0.854 1.698,1.042 0.219,0.188 10 true (1) 1.76,0.854 1.979,1.042 0.219,0.188 10 true (2) 2.24,0.833 2.458,1.021 0.219,0.188 10 true (8) 2.26,0.479 2.479,0.667 0.219,0.188 10 true (9) 2.24,0.25 2.542,0.417 0.302,0.167 10 true (11) 2.24,1.208 2.552,1.396 0.313,0.188 10 true (10) 2.229,1.656 2.521,1.833 0.292,0.177 10 true (12) 0.958,0.844 1.177,1.031 0.219,0.188 10 true (3) 0.969,1.219 1.188,1.406 0.219,0.188 10 true (5) 0.969,1.646 1.188,1.833 0.219,0.188 10 true (7) 0.927,0.26 1.146,0.448 0.219,0.188 10 true (6) 0.938,0.479 1.156,0.667 0.219,0.188 10 true (4)

*a	Hog Ring Pliers

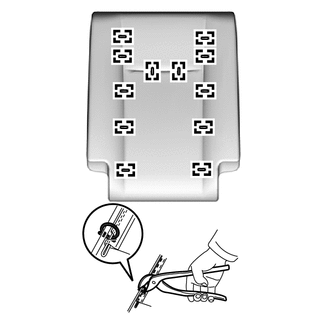

Using hog ring pliers, install the No. 3 seatback cover sub-assembly LH to the No. 3 seatback pad LH with 12 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the No. 3 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 3 seatback cover sub-assembly LH.

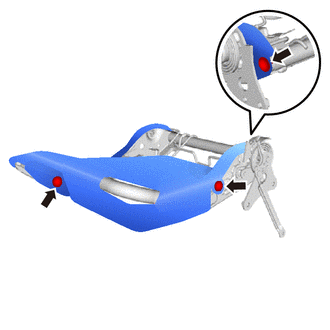

0.604,3.198 1.281,3.167 false 0.438,3.083 0.75,3.24 0.313,0.156 10 false *a 1.604,1.76 1.833,1.948 0.229,0.188 10 true (1) 1.25,1.75 1.479,1.938 0.229,0.188 10 true (2) 1.958,1.75 2.188,1.938 0.229,0.188 10 true (3)

*a	Hog Ring Pliers

Using hog ring pliers, install the separate type rear seatback cover with pad with the 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the Be careful not to damage the No. 3 seatback cover sub-assembly LH.

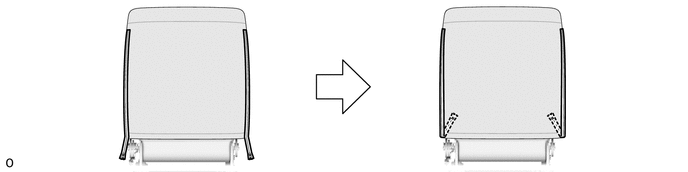

Close the 2 fasteners.

Insert the 2 fasteners.

0,0 0,0 false

Install in this Direction

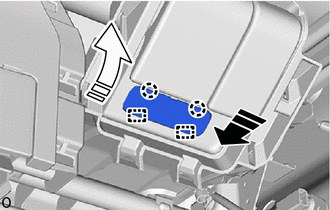

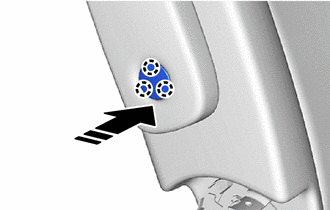

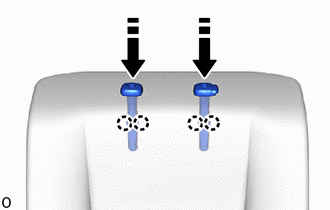

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.

2.135,1.646 2.74,1.396 false 2.823,1.271 3.135,1.427 0.313,0.156 10 false *a

*a	Washer Plate

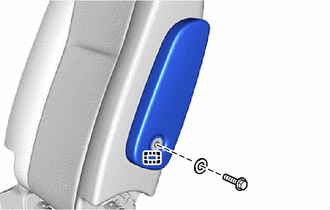

Attach the guide and install the No. 3 seat armrest assembly LH with the washer plate and bolt.

HINT:

When fastening separate type seatback assembly and No. 3 seat armrest assembly LH push to the rear side and tighten.

Torque:

24 N*m (245 kgf*cm, 18 ft.*lbf)

0,0 0,0 false

Install in this Direction

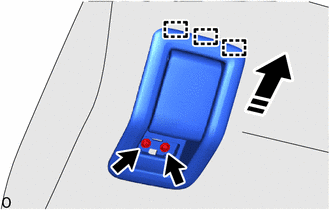

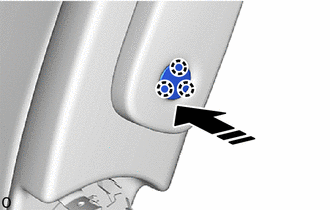

Attach the claw and install the No. 3 seat No. 1 armrest cap LH as shown in the illustration.

w/ Center Armrest:

i.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 3 seat No. 1 armrest cap LH as shown in the illustration.

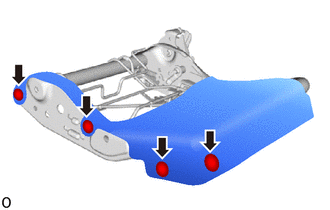

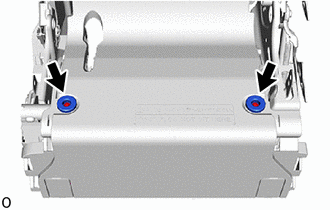

Install the No. 3 seat leg cover sub-assembly LH with the 2 screws.

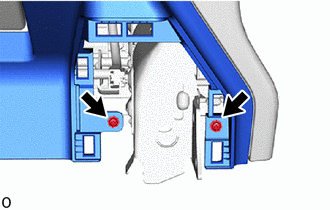

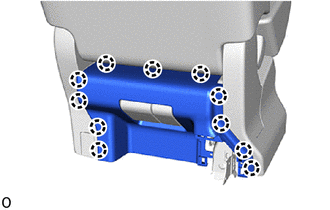

Install the 2 rear No. 3 seat cushion supports LH with the 2 screws.

0,0 0,0 false

Install in this Direction

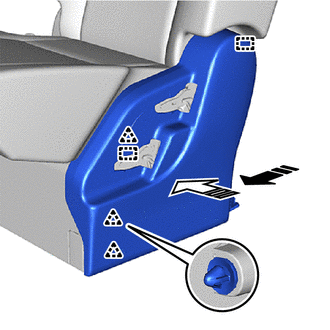

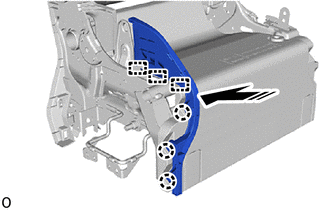

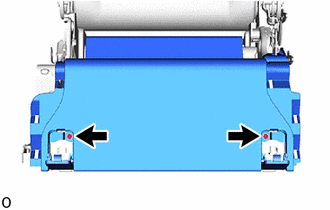

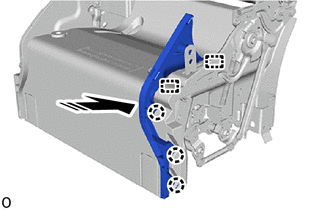

Attach the guide and claw and install the No. 3 seat No. 1 inner cushion shield LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

Attach the guide and claw and install the No. 3 seat No. 1 inner cushion shield RH as shown in the illustration.

1.146,1.604 1.417,1.854 true 0.531,1.344 0.896,1.635 true 1.875,1.073 2.344,1.375 true 2.365,1.271 2.583,1.438 0.219,0.167 10 true *a 0.313,1.25 0.531,1.438 0.219,0.188 10 true *b 1.375,1.854 1.688,2.01 0.313,0.156 10 false *c

*a	Cable End
*b	Green Cable Color
*c	Attachment Middle Notch
	Move in this Direction

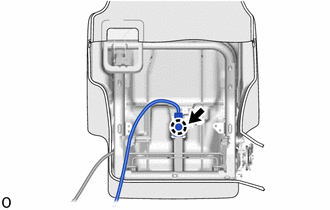

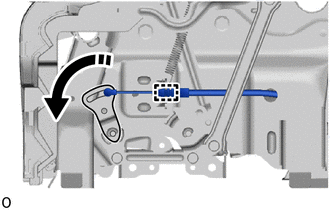

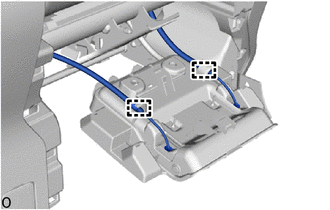

Connect the cable end moving the direction of the arrow in the illustration.

1.75,1.74 0.583,1.573 0.583,1.573 1.365,1.135 true 2.01,0.469 2.813,0.313 2.813,0.313 2.031,0.521 true 0.396,1.469 0.708,1.625 0.313,0.156 10 false *a 2.844,0.208 3.156,0.365 0.313,0.156 10 false *b

*a	Red Locating Tape Color
*b	Yellow Locating Tape Color

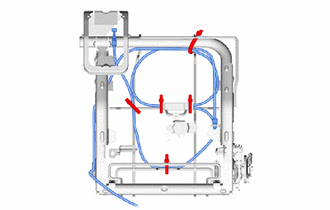

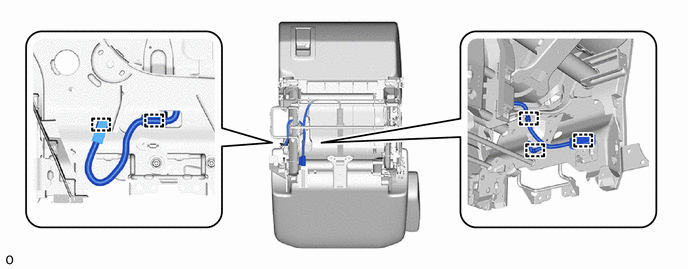

Install the No. 3 seat reclining adjusting cable assembly LH with the 5 new cable ties.

2.195,2.233 2.35,2.414 0.155,0.182 10 *b 0.981,3.981 1.13,4.163 0.149,0.182 10 *c 2.244,3.981 2.402,4.163 0.158,0.182 10 *d 2.288,1.307 2.444,1.463 0.156,0.156 10 *a

*a	Cut Here
*b	5 to 10 mm (0.20 to 0.39 in.)
*c	Correct
*d	Incorrect

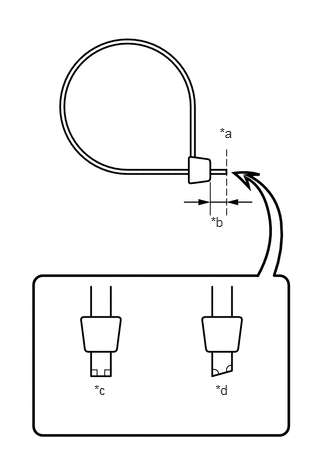

Cut off the end of the cable tie.

HINT:

Cutting tip shall not toward to pad side.

Attach the clamp and install the rear No. 4 seat wire LH.

Install the 3 clips.

Install the 4 clips.

Attach the hook.

2.094,1.313 1.063,0.76 1.063,0.76 1.313,1.667 true 2.542,2.438 2.031,1.771 true 2.615,2.354 2.771,2.552 0.156,0.198 10 false A 0.927,0.646 1.083,0.844 0.156,0.198 10 false B

Install the seat cover wire.

HINT:

·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION201902,999999,_58,_078601,_0381328,RM100000001G566,

Dimensions:

A	210 mm (8.27 in.)
B	400 mm (1.31 ft.)

HINT:

The dimensions shown in the illustration are the length.

0.708,3.177 1.417,2.99 false 0.531,3.063 0.844,3.219 0.313,0.156 10 false *a 1.365,0.885 1.583,1.073 0.219,0.188 10 true (1) 1.781,0.896 2,1.083 0.219,0.188 10 true (2) 2.292,1 2.51,1.188 0.219,0.188 10 true (6) 2.313,1.396 2.531,1.583 0.219,0.188 10 true (8) 2.271,0.354 2.49,0.542 0.219,0.188 10 true (7) 0.813,1.021 1.031,1.208 0.219,0.188 10 true (3) 0.781,1.417 1,1.604 0.219,0.188 10 true (5) 0.865,0.385 1.083,0.573 0.219,0.188 10 true (4)

*a	Hog Ring Pliers

Using hog ring pliers, install the cover sub-assembly LH to the No. 3 seat cushion pad LH with 8 new hog rings in the order indicated in the illustration.

NOTICE:

·

Be careful not to damage the cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the cover sub-assembly LH.

Attach the claw.

1.219,1.521 1.333,1.167 1.333,1.167 1.5,1.5 true 1.469,1.802 1.865,1.896 true 0.708,1.802 0.969,1.833 false 1.917,1.792 2.167,1.969 0.25,0.177 10 true *1 0.5,1.677 0.813,1.833 0.313,0.156 10 false *2 1.25,1 1.438,1.188 0.188,0.188 10 true *a

*1	Rear No. 4 Seat Wire LH
*2	No. 3 Seat Reclining Adjusting Cable Assembly LH
*a	Slit

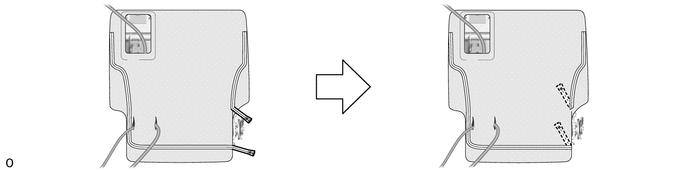

Pass the No. 3 seat reclining adjusting cable assembly LH and rear No. 4 seat wire LH through the slit of the separate type rear seat cushion cover with pad.

Close the 2 fasteners.

Insert the 2 fasteners.

1.792,0.479 2.469,0.635 true 2.51,0.542 2.823,0.698 0.313,0.156 10 false *a

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

Attach the cable clamp.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration to attach the guide.

0.552,0.49 0.979,0.604 false 1.302,1.042 1.729,0.958 true 1.5,1.5 1.885,1.667 false 0.396,1.094 0.927,0.938 false 1.76,0.833 2.01,1.01 0.25,0.177 10 true *1 0.354,0.323 0.667,0.479 0.313,0.156 10 false *2 1.917,1.542 2.167,1.719 0.25,0.177 10 true *b 0.208,0.99 0.521,1.146 0.313,0.156 10 false *a

*1	Rear No. 4 Seat Wire LH
*2	No. 3 Seat Reclining Adjusting Cable Assembly LH
*a	Slit
*b	Hole

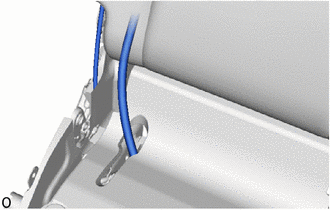

Pass the rear No. 4 seat wire LH and No. 3 seat reclining adjusting cable assembly LH through the hole and slit as shown in the illustration.

0.365,1.698 0.594,1.177 false 0.302,1.708 0.615,1.865 0.313,0.156 10 false *a

*a

Bush

Install the bush and bolt.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the 2 bolts.

Torque:

20 N*m (204 kgf*cm, 15 ft.*lbf)

Install the bolt.

Torque:

8.0 N*m (82 kgf*cm, 71 in.*lbf)

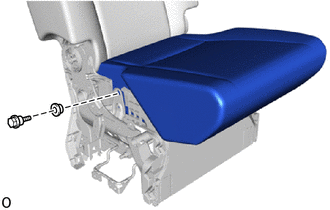

Attach the clamp and install the rear seat cushion assembly.

1.583,1.542 1.115,0.969 true 1.885,0.927 2.177,0.677 true 1.729,0.906 1.542,0.51 true 2.917,1.583 2.802,1.031 true 1.646,1.438 1.854,1.635 0.208,0.198 10 true *a 2.865,1.604 3.073,1.802 0.208,0.198 10 true *d 1.427,0.292 1.635,0.49 0.208,0.198 10 true *c 2.219,0.5 2.427,0.698 0.208,0.198 10 true *b

*a	Cable End
*b	Red Cable Color
*c	Attachment Middle Notch
*d	Hole
	Move in this Direction

Pass the No. 3 seat slide cable assembly LH through the hole in the No. 3 seat leg sub-assembly LH.

0,0 0,0 false

Install in this Direction

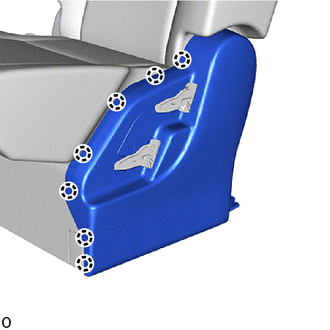

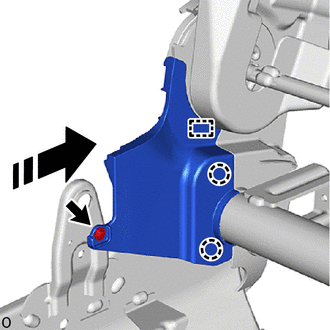

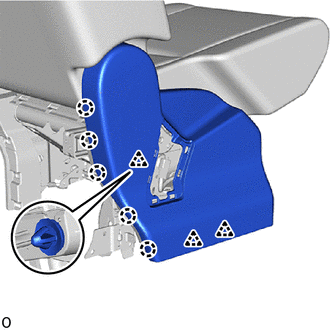

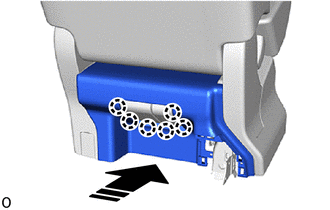

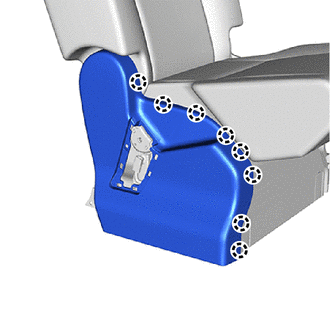

Attach the claw and install the rear NO. 3 seat reclining adjuster inside cover LH as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration and attach the guide.

Attach the clip and claw.

Attach the clip, claw and guide.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 3 seat track handle control lever LH as shown in the illustration.

0,0 0,0 false

Install in this Direction

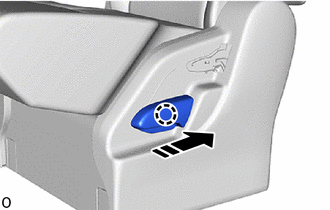

Attach the claw and install the No. 3 seat reclining adjuster release handle LH as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration and attach the guide.

Attach the claw.

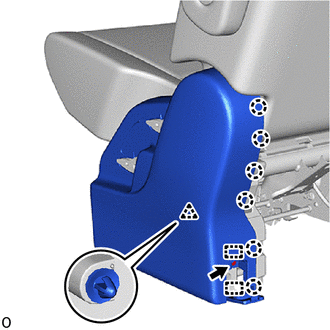

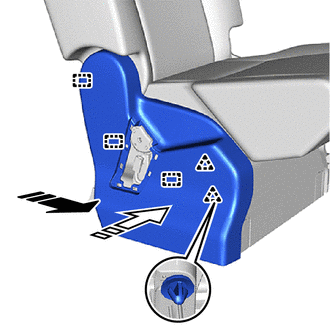

Attach the claw and clip and install the No. 3 seat No. 1 inner leg cover sub-assembly.

0,0 0,0 false

Install in this Direction

Attach the claw and install the No. 3 seat No. 2 inner leg cover sub-assembly as shown in the illustration.

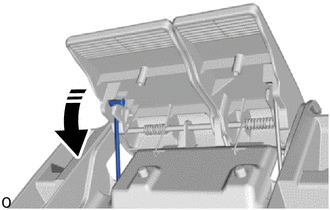

1.719,1.406 2.177,1.021 true 1.479,1.292 1.688,1.5 0.208,0.208 10 true *a

*a	Cable End
	Move in this Direction

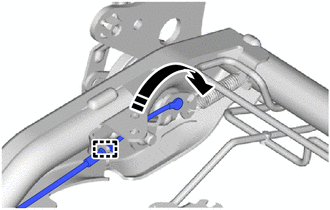

Connect the cable end moving the direction of the arrow in the illustration.

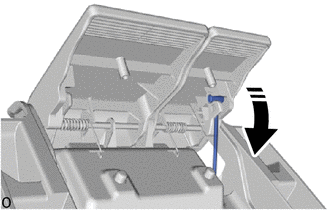

1.313,1.073 1.656,1.521 true 1.677,1.417 1.906,1.615 0.229,0.198 10 true *a

*a	Cable End
	Move in this Direction

Connect the cable end moving the direction of the arrow in the illustration.

0.792,1.385 1.406,1.135 true 2.188,0.688 2.635,0.531 true 2.646,0.375 2.885,0.573 0.24,0.198 10 true *a 0.604,1.281 0.802,1.479 0.198,0.198 10 true *b

*a	Yellow Cable Color
*b	Black Cable Color

Attach the cable clamp.

0,0 0,0 false

Install in this Direction

Attach the guide as shown in the illustration.

0,0 0,0 false

	Install in this Direction (1)
	Install in this Direction (2)

Push in the installation direction (1) shown in the illustration and attach the guide.

0,0 0,0 false

Install in this Direction

Attach the claw as shown in the illustration.

Attach the claw.

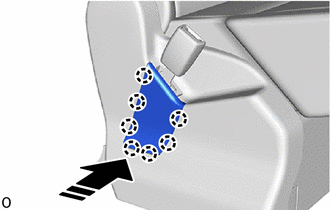

Install the rear No. 3 seat inner belt cover LH with the 2 screws.
