SEAT BELT REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) REMOVAL
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·The procedure listed below is a representative example.
·Use the same procedure for all rows, unless otherwise specified.
PROCEDURE
1.REMOVE REAR SEAT ASSEMBLY LH
79967W
2.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER
79967X
3.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER
72526J
4.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH
72525N
5.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH
- HINT:
-
Use the same procedure described for the LH side.
71834J

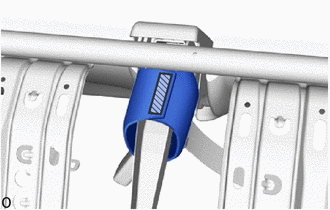

6.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH
71833K

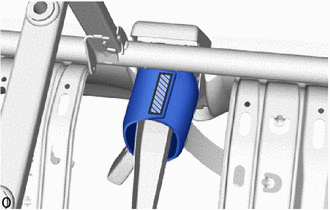

7.REMOVE NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH
73330J
8.REMOVE REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY LH

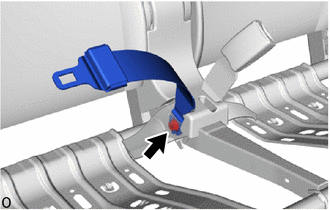

Remove the bolt and rear 3 persons seat lap type belt assembly LH.

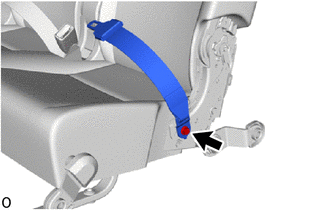

9.REMOVE SEAT CUSHION COVER WITH PAD
73330K
10.REMOVE REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH
|
Fastening Tape |
Detach the fastening tape and open the rear seat cushion cover.

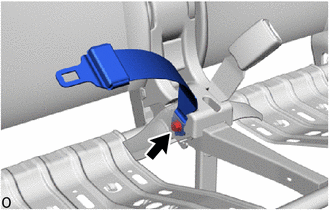

Remove the bolt and rear 3 persons seat lap type belt assembly RH.
73330K
11.REMOVE REAR 3 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH
|
|
Fastening Tape |
Detach the fastening tape and open the rear seat cushion cover.
Remove the bolt and rear 3 persons seat lap type belt assembly RH.
