RM35X0E _58 Vehicle Interior _078601 SEAT _0396036 REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 3-Passenger Seat with 2-Point Type Seat Belt and Headrest)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79290B 1.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY LH

a.
B547982C01
0.906,0.854 0.281,0.313 0.281,0.313 1.208,0.677 true 1.99,4.063 1.26,3.292 1.26,3.292 2.25,3.885 true 0.083,0.125 0.365,0.406 0.281,0.281 10 false *a 1.052,3.094 1.333,3.375 0.281,0.281 10 false *a
*a Protruding Part
V100135

Bolt A
V100136

Bolt B

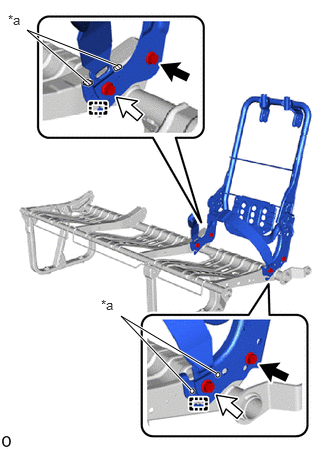

Attach the guide.


b.

Temporarily install the No. 1 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear 3 persons seat lap type belt assembly LH and rear 3 persons seat belt assembly LH with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly LH and rear 3 persons seat belt assembly LH to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 79290D 2.INSTALL CENTER NO. 1 SEATBACK SPRING ASSEMBLY LH

a.
B547983C01
0.896,0.635 0.365,0.365 0.365,0.365 0.625,0.771 true 1.406,3.948 2.063,3.646 2.063,3.646 1.125,3.823 true 2.146,3.5 2.385,3.729 0.24,0.229 10 false *a 0.167,0.177 0.406,0.406 0.24,0.229 10 false *a
*a Protruding Part
V100135

Bolt A
V100136

Bolt B


Attach the guide.


b.

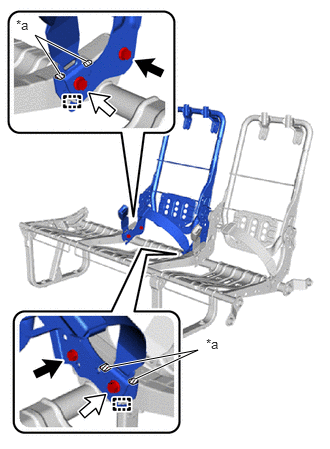

Temporarily install the center No. 1 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear 3 persons seat lap type belt assembly RH and rear 3 persons seat belt assembly with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly RH and rear 3 persons seat belt assembly to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 79280B 3.INSTALL NO. 1 SEATBACK SPRING ASSEMBLY RH

a.

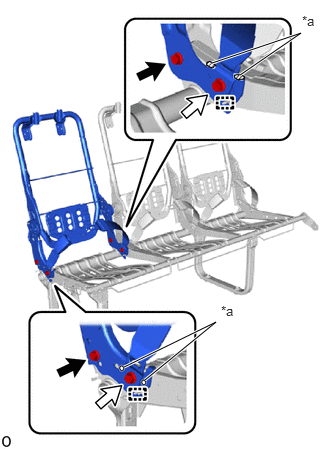

B547984C01
2.208,0.656 3.135,0.344 3.135,0.344 2.5,0.781 true 1.51,3.958 2.25,3.354 2.25,3.354 1.292,3.823 true 3.146,0.135 3.375,0.448 0.229,0.313 10 false *a 2.302,3.156 2.531,3.469 0.229,0.313 10 false *a
*a Protruding Part
V100135

Bolt A
V100136

Bolt B


Attach the guide.


b.

Temporarily install the No. 1 seatback spring assembly RH with the 2 bolts A.


c.

Temporarily install the rear 3 persons seat lap type belt assembly RH and rear 3 persons seat belt assembly RH with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 3 persons seat lap type belt assembly RH and rear 3 persons seat belt assembly RH to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 71H76F 4.INSTALL REAR NO. 1 LH SEAT RECLINING ADJUSTER INSIDE COVER LH

HINT:

Use the same procedure for the center side.


a.

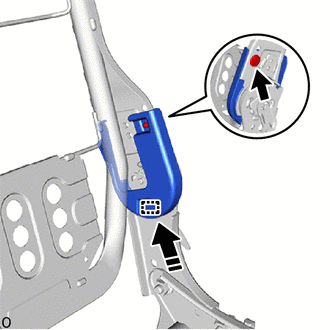

B547972C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear No. 1 LH seat reclining adjuster inside cover LH as shown in the illustration.


b.

Install the clip.


Hide 71H76N 5.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH

HINT:

Use the same procedure for the rear No. 1 LH seat reclining adjuster inside cover LH.


Hide 71H75F 6.INSTALL REAR NO. 1 LH SEAT RECLINING ADJUSTER INSIDE COVER RH

HINT:

Use the same procedure for the center side.


a.

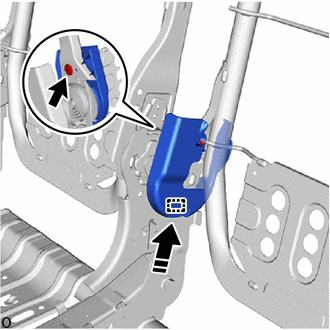

B547974C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear No. 1 LH seat reclining adjuster inside cover RH as shown in the illustration.


b.

Install the clip.


Hide 71H75R 7.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH

HINT:

Use the same procedure for the rear No. 1 LH seat reclining adjuster inside cover RH.


Hide 71834L 8.INSTALL REAR SEAT RECLINING COVER LH

a.
B547964C01
0,0 0,0 false
V100155

Fastening Tape

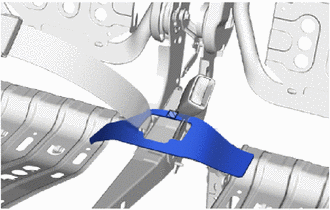

Attach the fastening tape.


b.

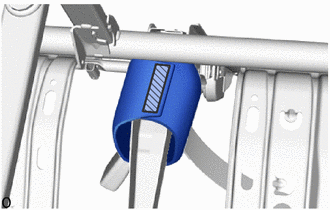

B547963C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape and install the rear seat cushion cover.


c.

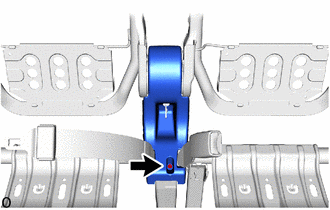

B547959

Install the rear seat reclining cover LH with the screw.


Hide 71844J 9.INSTALL REAR NO. 1 SEAT NO. 2 RECLINING COVER LH

a.

Attach the claw.

B547958


b.

Install the rear No. 1 seat No. 2 reclining cover LH with the screw.


Hide 71H73A 10.INSTALL REAR LOWER NO. 1 SEAT CUSHION SHIELD

a.

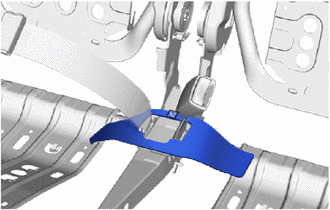

B547968C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


b.
B547967C01
0,0 0,0 false
V100155

Fastening Tape

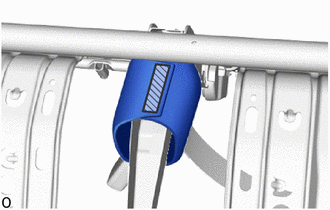

Attach the fastening tape and install the rear seat cushion cover.


c.

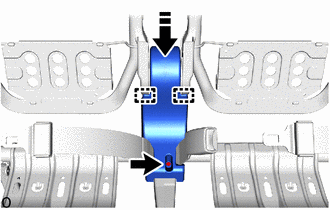

B547962C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear lower No. 1 seat cushion shield with the screw as shown in the illustration.


Hide 71H74A 11.INSTALL LOWER NO. 1 SEAT CUSHION SHIELD LH

a.

Attach the claw.

B547960


b.

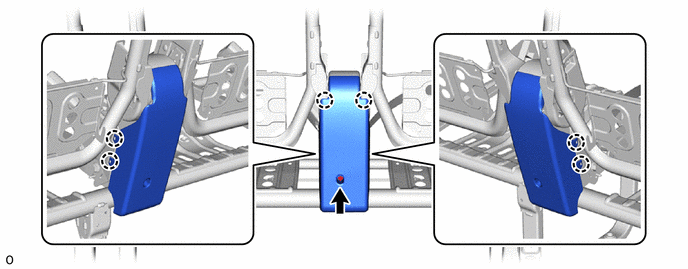

Install the lower No. 1 seat cushion shield LH with the screw.


Hide 72552P 12.INSTALL LH SEAT RECLINING HINGE COVER LH

a.
B547957

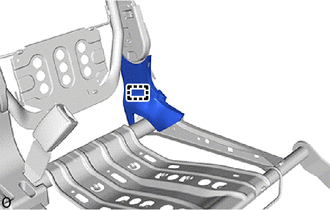

Attach the guide and install the LH seat reclining hinge cover LH.


Hide 72551R 13.INSTALL LH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72345Q 14.INSTALL NO. 1 SEAT STAND FRAME CAP LH

a.
B547956

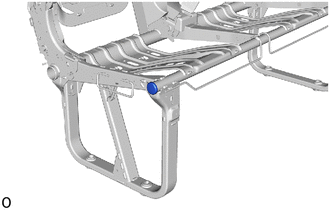

Install the No. 1 seat stand frame cap LH.


Hide 15.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



B537039N02

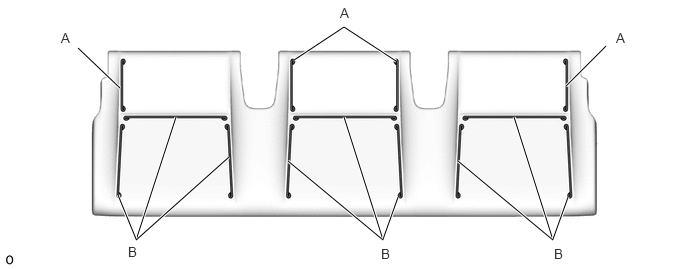

3.063,0.625 3.583,0.281 3.583,0.281 4.125,0.635 true 0.813,0.5 1.25,0.917 true 4.771,1.677 5.76,2.5 5.76,2.5 5.354,1.219 true 5.896,0.896 6.313,0.479 true 1.833,1.219 1.417,2.5 1.417,2.5 2.385,1.635 true 3,1.677 3.99,2.5 3.99,2.5 3.583,1.219 true 5.917,2.052 5.76,2.49 true 4.146,2.052 3.99,2.49 true 1.229,2.031 1.417,2.49 true 3.542,0.052 3.74,0.271 0.198,0.219 10 false A 0.635,0.313 0.833,0.531 0.198,0.219 10 false A 6.417,0.313 6.615,0.531 0.198,0.219 10 false A 5.771,2.563 6.01,2.74 0.24,0.177 10 false B 1.333,2.542 1.573,2.719 0.24,0.177 10 false B 3.969,2.563 4.208,2.74 0.24,0.177 10 false B

Dimensions:
A 120 mm (4.72 in.) B 210 mm (8.27 in.)


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79012A 16.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seat cushion cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly LH with 26 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.

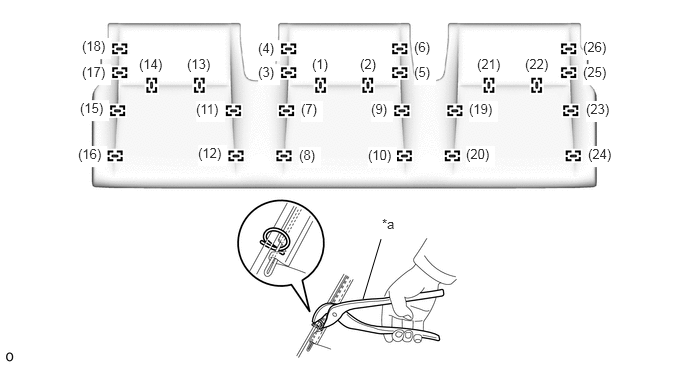

B537038C04
3.781,3.115 3.969,2.49 false 3.979,2.25 4.219,2.458 0.24,0.208 10 false *a 0.813,1.521 1.115,1.74 0.302,0.219 10 true (16) 0.833,1.042 1.135,1.26 0.302,0.219 10 true (15) 0.854,0.667 1.156,0.885 0.302,0.219 10 true (17) 0.854,0.396 1.156,0.615 0.302,0.219 10 true (18) 1.448,0.583 1.75,0.802 0.302,0.219 10 true (14) 1.948,0.583 2.25,0.802 0.302,0.219 10 true (13) 2.042,1.052 2.344,1.271 0.302,0.219 10 true (11) 2.063,1.51 2.365,1.729 0.302,0.219 10 true (12) 6.073,0.406 6.375,0.625 0.302,0.219 10 true (26) 6.073,0.667 6.375,0.885 0.302,0.219 10 true (25) 6.104,1.052 6.406,1.271 0.302,0.219 10 true (23) 6.125,1.521 6.427,1.74 0.302,0.219 10 true (24) 4.854,1.521 5.156,1.74 0.302,0.219 10 true (20) 5.469,0.583 5.771,0.802 0.302,0.219 10 true (22) 4.885,1.052 5.188,1.271 0.302,0.219 10 true (19) 4.969,0.583 5.271,0.802 0.302,0.219 10 true (21) 3.833,1.531 4.135,1.75 0.302,0.219 10 true (10) 3.865,1.052 4.094,1.271 0.229,0.219 10 true (9) 4.313,0.406 4.542,0.625 0.229,0.219 10 true (6) 4.313,0.667 4.542,0.885 0.229,0.219 10 true (5) 3.25,0.583 3.479,0.802 0.229,0.219 10 true (1) 3.75,0.583 3.979,0.802 0.229,0.219 10 true (2) 2.688,0.417 2.917,0.635 0.229,0.219 10 true (4) 2.688,0.667 2.917,0.885 0.229,0.219 10 true (3) 3.135,1.052 3.365,1.271 0.229,0.219 10 true (7) 3.115,1.531 3.344,1.75 0.229,0.219 10 true (8)
*a Hog Ring Pliers - -



b.

Attach the fastening tape.

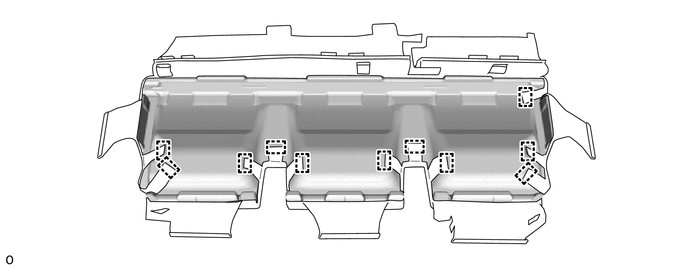

B539072C02
0,0 0,0 false
V100155

Fastening Tape - -



Hide 17.INSTALL SEAT CUSHION COVER WITH PAD

a.

Attach the hook and install the seat cushion cover with pad as shown in the illustration.

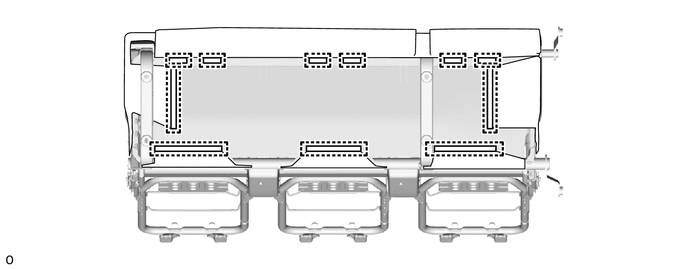

B547955


b.

Attach the fastening tape.

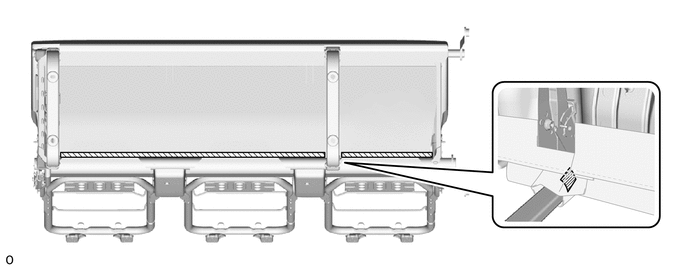

B547954C02
0,0 0,0 false
V100155

Fastening Tape - -



Hide 79185A 18.INSTALL NO. 1 SEATBACK PAD LH

HINT:

Use the same procedure for all No. 1 seatback pads.


a.

Install the No. 1 seatback pad LH.


Hide 19.INSTALL SEAT COVER WIRE

HINT:

Use the same procedure for all seat cover wires.


a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

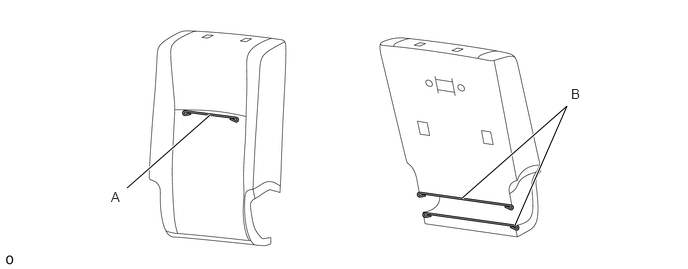

B547953N01
1.323,1.958 2.188,1.198 true 4.813,2.063 5.906,1.104 5.906,1.104 5.365,2.344 true 1.156,1.969 1.365,2.219 0.208,0.25 10 false A 5.948,0.896 6.156,1.146 0.208,0.25 10 false B

Dimensions:
A 210 mm (8.27 in.) B 320 mm (1.05 ft.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79014B 20.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

HINT:
·

Use the same procedure for all No. 1 seatback cover sub-assemblies.


·

When installing a No. 1 seatback cover sub-assembly LH, refer to the Precaution section in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION



a.
B547952C01
1.906,3.948 2.104,3.406 false 2.115,3.188 2.365,3.417 0.25,0.229 10 false *a 1.469,1.427 1.708,1.667 0.24,0.24 10 true (1) 2.042,1.427 2.281,1.667 0.24,0.24 10 true (2)
*a Hog Ring Pliers

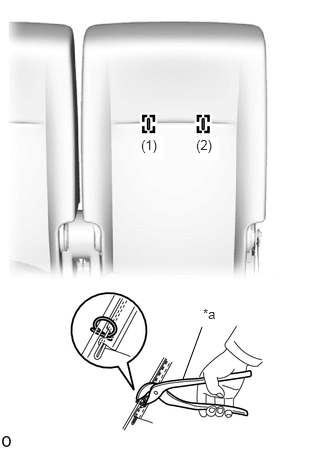

Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH with 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.




b.
B547950C01
0,0 0,0 false
V113147

Install in this Direction

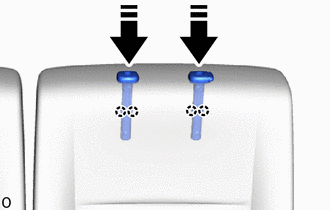

Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


c.
B547948C01

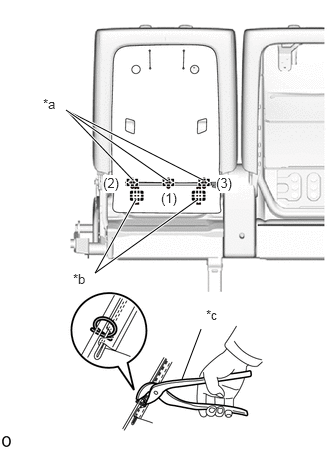

1.896,3.948 2.094,3.427 false 1.385,1.875 0.688,1.146 0.688,1.146 2.115,1.875 true 1.75,1.885 0.688,1.146 true 2.052,2.083 0.99,2.844 0.99,2.844 1.417,2.073 true 0.448,1 0.688,1.25 0.24,0.25 10 false *a 0.76,2.823 1.031,3.01 0.271,0.188 10 false *b 2.146,3.198 2.375,3.406 0.229,0.208 10 false *c 1.677,1.979 1.906,2.167 0.229,0.188 10 true (1) 1.073,1.823 1.302,2.01 0.229,0.188 10 true (2) 2.25,1.823 2.479,2.01 0.229,0.188 10 true (3)
*a Hog Ring
*b Hook
*c Hog Ring Pliers


Attach the hook.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.



d.

Install 3 new hog rings in the order indicated in the illustration.


Hide 71701A 21.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH

HINT:

Use the same procedure for all rear seatback board sub-assemblies.


a.
B547946C01
0,0 0,0 false
V113147

Install in this Direction


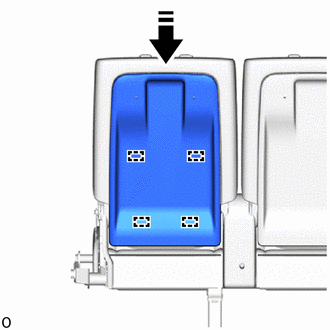

Attach the guide and install the rear seatback board sub-assembly RH as shown in the illustration.


Hide 74690A 22.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all rear seat assist grip assemblies.


a.
B541385

Install the rear seat assist grip assembly with the 2 screws.


b.
B541384C01
0,0 0,0 false
V113147

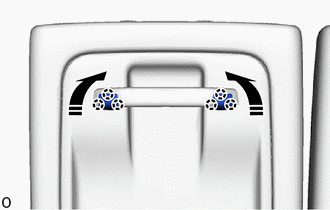

Close in this Direction


Close the 2 covers and attach the claw as shown in the illustration.


Hide 71834J 23.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER LH

a.
B547939C01
0,0 0,0 false
V113147

Install in this Direction

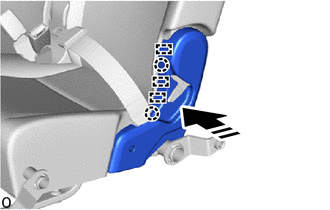

Attach the claw and guide as shown in the illustration.


b.

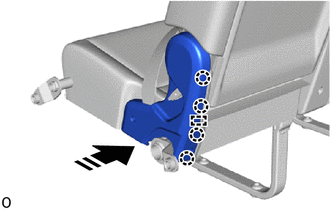

B547937C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide as shown in the illustration.


c.

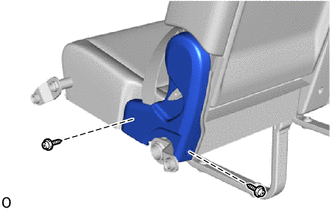

B547935

Install the No. 1 seat outer No. 1 reclining cover LH with the 2 screws.


Hide 71833K 24.INSTALL NO. 1 SEAT OUTER NO. 1 RECLINING COVER RH

a.

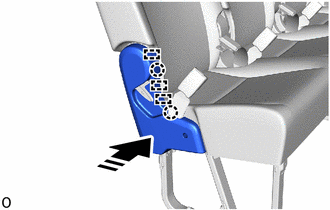

B547944C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide as shown in the illustration.

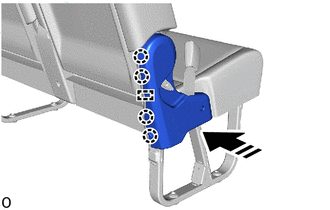

b.
B547942C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and guide as shown in the illustration.

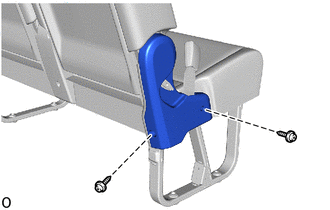

c.
B547940

Install the No. 1 seat outer No. 1 reclining cover RH with the 2 screws.


Hide 72526J 25.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

a.
B547932C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Install in this Direction

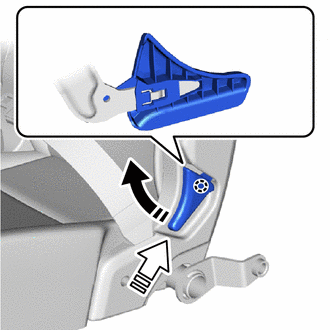

Attach the claw and install the No. 1 seat reclining adjuster release handle LH while lifting it up as shown in the illustration.


Hide 72525N 26.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure described for the LH side.


Hide 72525S 27.INSTALL CENTER NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE

a.
B547934C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Install in this Direction

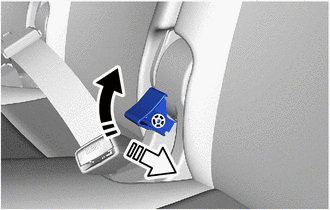

Attach the claw and install the center No. 1 seat reclining adjuster release handle while lifting it up as shown in the illustration.


Hide 79967X 28.INSTALL REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.
B547930C01
0,0 0,0 false
V113147

Install in this Direction

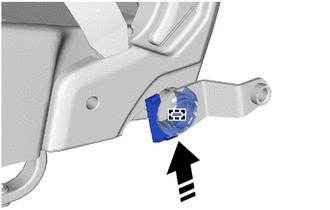

Attach the hook as shown in the illustration.


b.

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B547928C01

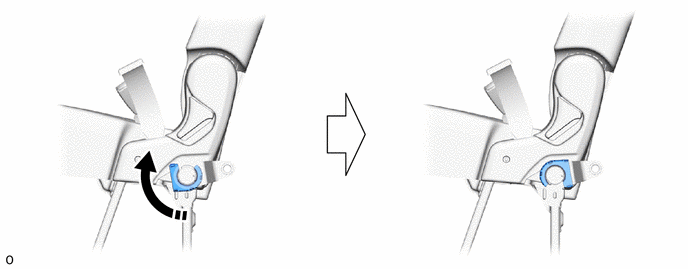

0,0 0,0 false
V113147

Rotate in this Direction - -



c.
B547926

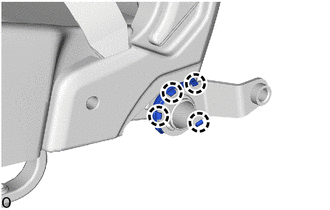

Attach the claw and install the rear No. 1 seat No. 5 leg side cover.


Hide 79967W 29.INSTALL REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.
B547925C01
0,0 0,0 false
V113147

Install in this Direction

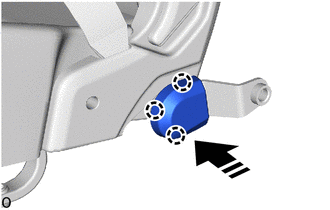

Attach the claw and install the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967U 30.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.
B547923C01
0,0 0,0 false
V113147

Install in this Direction

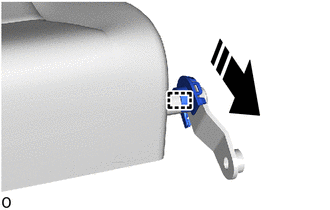

Attach the hook as shown in the illustration.


b.

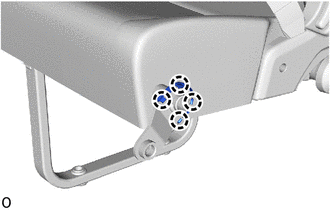

B547921

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.


Hide 79967T 31.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.
B547920C01
0,0 0,0 false
V113147

Install in this Direction

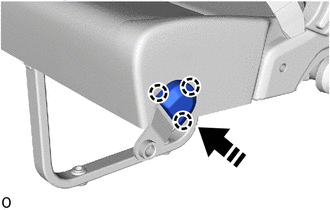

Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967V 32.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

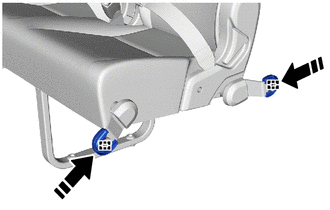

B547918C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.
