AC60E AUTOMATIC TRANSMISSION / TRANSAXLE SHIFT LEVER ON-VEHICLE INSPECTION
PROCEDURE
1.INSPECT SHIFT LEVER POSITION
When moving the shift lever from P to R with the ignition switch ON and the brake pedal depressed, make sure that the shift lever moves smoothly and correctly to P.
Make sure that the shifting lever moves smoothly and can be moderately operated.
When starting the engine, make sure that the vehicle moves forward when shifting from N to D and moves rearward when shifting to R.
If the operation is not as specified, inspect the park/neutral position switch assembly or adjust the transmission control cable assembly.
2.INSPECT SHIFT LOCK OPERATION
Move the shift lever to P.
Turn the ignition switch off.
Check that the shift lever cannot be moved from P to any other position.
Turn the ignition switch to ON, depress the brake pedal, and check that the shift lever can be moved from P to any other position.
If the operation is not as specified, inspect the shift lock control unit assembly.
3.INSPECT SHIFT LOCK RELEASE BUTTON OPERATION
Turn the ignition switch off.
|
Remove in this Direction |

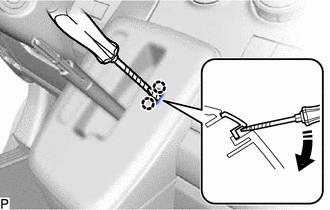

Using a screwdriver with its tip wrapped with protective tape, detach the 2 claws to remove the shift lever cap from the position indicator housing assembly.
- NOTICE:
-
Be careful not to damage the shift lever cap and position indicator housing assembly.
When moving the shift lever with the shift lock release button pressed, check that the shift lever can be moved from P to any other position.
If the operation is not as specified, inspect the shift lock control unit assembly.
4.INSPECT KEY INTERLOCK OPERATION (w/o Smart Entry and Start System)
Turn the ignition switch to ON.
Depress the brake pedal and move the shift lever to any position other than P.
Check that the ignition key cannot be turned to LOCK.
Move the shift lever to P, turn the ignition key to LOCK and check that the ignition key can be removed.
If the operation is not as specified, inspect the shift lock control unit assembly.
