RM35X0E _V1 General _078672 MAINTENANCE _0390931 AIR CONDITIONING FILTER A

MAINTENANCE  AIR CONDITIONING FILTER  INSTALLATION


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 87139C 1.INSTALL CLEAN AIR FILTER

a.

for Two Layer Blower Type:

i.

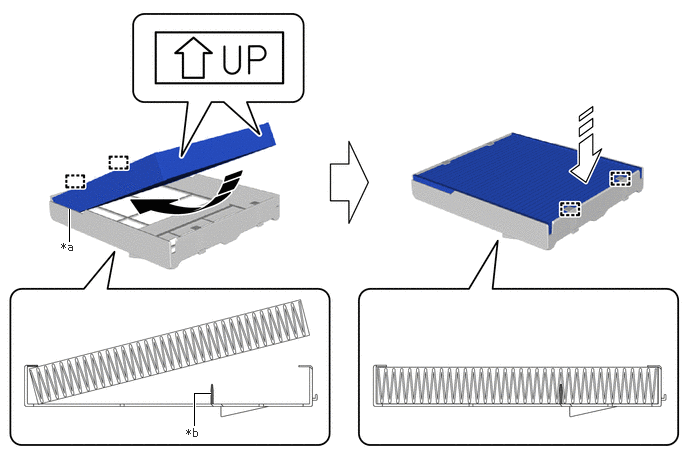

Attach the guide on the cutout side of the air filter case and then attach the guide as shown in the illustration to install the clean air filter.

E406621C02
0.719,2.51 0.719,2.177 true 2.021,4.427 2.021,4.094 2.021,4.094 2.188,4.094 true 0.635,2.5 0.948,2.698 0.313,0.198 10 false *a 1.938,4.438 2.25,4.635 0.313,0.198 10 false *b
*a Cutout *b Rib
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)


NOTICE:
·

Do not apply excessive force to the filter medium, as doing so may damage it.

·

Make sure that the "UP" marks are facing the correct direction before installing the clean air filter.

·

Make sure that there is no clearance between the clean air filter and air filter case and that the clean air filter is not deformed.





b.

for Single Layer Blower Type:

i.
E400966C01
0,0 0,0 false
V113147

Install in this Direction

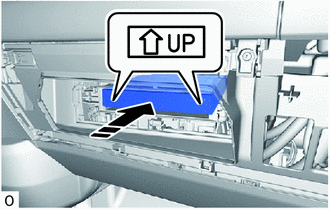

Align the "UP" marks as shown in the illustration and install the clean air filter.

NOTICE:

Insert so that the UP mark arrow is pointing upwards.




Hide 88548B 2.INSTALL AIR FILTER CASE (for Two Layer Blower Type)

a.
E416491C01
0,0 0,0 false
V113147

Install in this Direction

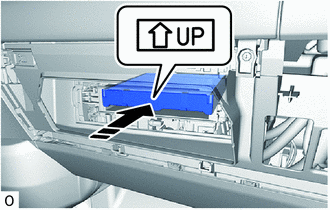

Align the "UP" marks as shown in the illustration and install the air filter case.

NOTICE:

Insert so that the UP mark arrow is pointing upwards.



Hide 88899M 3.INSTALL AIR FILTER COVER PLATE

a.
E400967C01
0,0 0,0 false
V113147

Install in this Direction (1)
V113148

Install in this Direction (2)

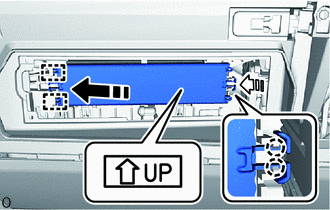

Insert the guide in the direction indicated by the arrow shown in the illustration.


b.

Rotate in the direction indicated by the arrow shown in the illustration, attach the claw and install the air filter cover plate in the order shown in the illustration.

NOTICE:
·

Insert it with the arrow of the UP mark facing upward.

·

Insert the claw until a "click" sound is heard.




c.
E417302C01
0,0 0,0 false
V113147

Install in this Direction

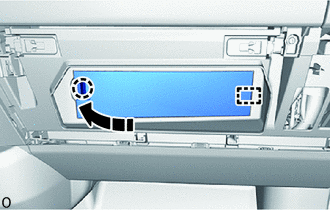

Attach the claw and guide to install the No. 1 instrument panel finish panel retainer.
