MAINTENANCE  AIR CONDITIONING FILTER  REMOVAL


CAUTION / NOTICE / HINT

HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.



PROCEDURE

Hide 88899M 2.REMOVE AIR FILTER COVER PLATE

a.

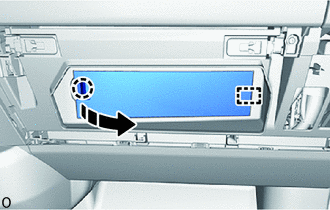

E400928C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the No. 1 instrument panel finish panel retainer.


b.

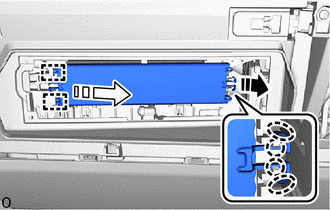

E400964C01
0,0 0,0 false
V113147

Remove in this Direction (1)
V113148

Remove in this Direction (2)


Lightly pinch the area shown in the illustration and rotate the claw in the direction indicated by the arrow shown in the illustration to detach it.


c.

Pull in the removal direction shown in the illustration to detach the guide and remove the air filter cover plate.


Hide 88548B 3.REMOVE AIR FILTER CASE (for Two Layer Blower Type)

a.

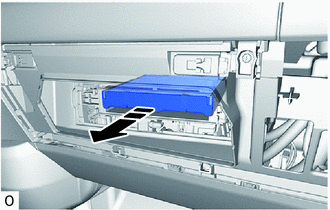

E416490C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the air filter case.


Hide 87139C 4.REMOVE CLEAN AIR FILTER

a.
E396103

for Two Layer Blower Type:

i.

Detach the guide and remove the clean air filter.



b.

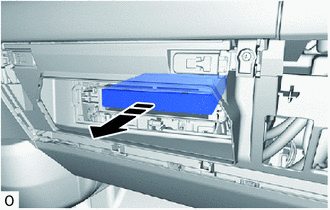

E400965C03
0,0 0,0 false
V113147

Remove in this Direction


for Single Layer Blower Type:

i.

Remove the clean air filter.
