BRAKE SYSTEM (OTHER)  VACUUM RESERVOIR(for RHD)  REASSEMBLY


PROCEDURE

Hide 44730 1.TEMPORARILY INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY

a.

Clean the vacuum check valve assembly and bolt hole.


b.
C414048C01
0,0 0,0 false
V100135

Three Bond 1104 or equivalent

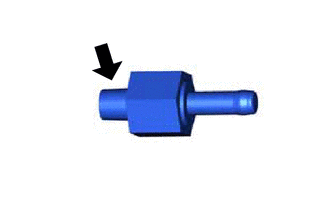

Apply three bond 1104 or equivalent to 2 or 3 threads on the end of the bolt.

HINT:

Leave it in atmosphere for 24 hours before applyng use.


Grease:

Three Bond 1104 or equivalent



c.
C412566

Temporarily install the brake vacuum check valve assembly to the vacuum reservoir sub-assembly.
