BRAKE SYSTEM (OTHER)  VACUUM RESERVOIR(for RHD)  COMPONENTS

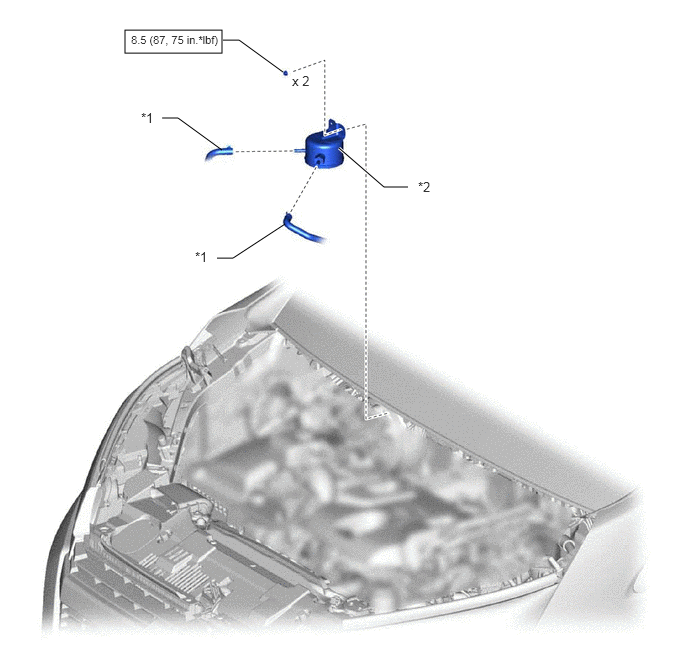

ILLUSTRATION

1.302,0.313 2.313,0.552 1.01,0.24 2.26,2.688 2.427,2.688 2.427,2.688 2.969,2.333 false 3.531,1.542 4,1.948 4,1.948 4.25,1.948 true 1.688,1.229 1.854,1.229 1.854,1.229 2.313,1.563 false 2.323,0.417 2.49,0.417 2.49,0.417 2.948,0.75 false 2.031,2.594 2.448,2.979 0.417,0.385 10 false *1 4.354,1.865 4.833,2.208 0.479,0.344 10 false *2 1.469,1.146 1.885,1.531 0.417,0.385 10 false *1 3.042,0.76 3.521,1.104 0.479,0.344 10 false x 2 1.365,0.344 2.573,0.781 1.208,0.438 8 false 8.5 (87, 75 in.*lbf)

*1	VACUUM HOSE	*2	VACUUM RESERVOIR ASSEMBLY
	N*m (kgf*cm, ft.*lbf): Specified torque	-	-

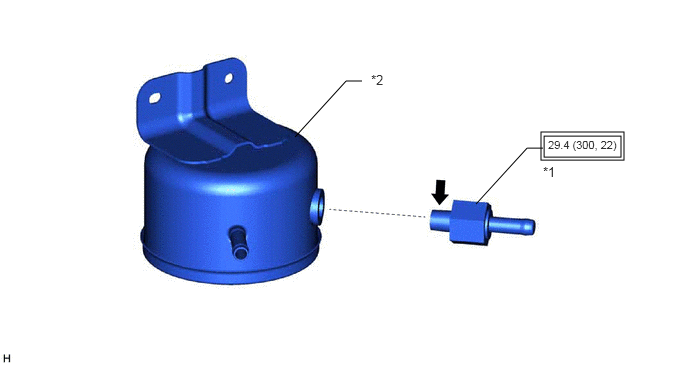

ILLUSTRATION

5.635,1.375 6.5,1.667 0.865,0.292 5.667,1.417 6.469,1.635 0.802,0.219 4.958,2.125 5.49,1.542 5.49,1.542 5.656,1.542 false 3.073,1.427 3.604,0.844 3.604,0.844 3.771,0.844 false 5.656,1.708 6,1.948 0.344,0.24 10 false *1 3.865,0.75 4.271,1.063 0.406,0.313 10 false *2 5.708,1.438 6.563,1.729 0.854,0.292 8 false 29.4 (300, 22)

*1	BRAKE VACUUM CHECK VALVE ASSEMBLY	*2	VACUUM RESERVOIR SUB-ASSEMBLY
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf)		Three Bond 1104 or equivalent
