BRAKE SYSTEM (OTHER)  VACUUM WARNING SWITCH(for LHD)  INSTALLATION


PROCEDURE

Hide 89420K 1.INSTALL GROMMET

a.

Install a new check valve grommet to the brake booster assembly.


Hide 83390 2.INSTALL VACUUM WARNING SWITCH ASSEMBLY

a.

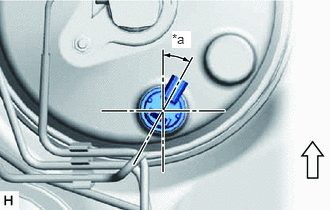

C412547C02
1.792,0.323 1.99,0.5 0.198,0.177 10 true *a
*a 30°
V100136

Up


Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.


b.

Connect the connector to the vacuum warning switch assembly.
