RM35X0E _58 Vehicle Interior _079316 HEATING / AIR CONDITIONING _0390132 REFRIGERANT LINE(for RHD) A

HEATING / AIR CONDITIONING REFRIGERANT LINE(for RHD) INSTALLATION

PROCEDURE

Hide Display 1.INSTALL PIPING CLAMP

w/o Sub-cool Accelerator:

Remove the vinyl tape from the air conditioner tube assembly (condenser pipe) and cooler refrigerant liquid pipe A.

ii.

Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the air conditioner tube assembly (condenser pipe).

Compressor Oil:: ND-OIL 8 or equivalent

iii.

Install the 2 O-rings to the air conditioner tube assembly (condenser pipe).

iv.

Install the cooler refrigerant liquid pipe A to the air conditioner tube assembly (condenser pipe) .

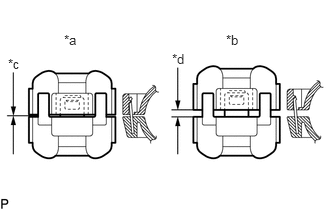

0.667,0.333 0.979,0.531 0.313,0.198 10 false *a 2.354,0.333 2.667,0.531 0.313,0.198 10 false *b 0.083,0.583 0.396,0.781 0.313,0.198 10 false *c 1.792,0.531 2.104,0.729 0.313,0.198 10 false *d

*a	Correct
*b	Incorrect
*c	No Gap
*d	Gap

Install the piping clamp to the cooler refrigerant liquid pipe A.

NOTICE:: Make sure that the piping clamp is engaged securely with no gap.

w/ Sub-cool Accelerator:

Remove the vinyl tape from the air conditioner tube assembly (condenser pipe) and air conditioner tube assembly (front cooler pipe).

ii.

Sufficiently apply compressor oil to 2 new O-rings and the fitting surfaces of the air conditioner tube assembly (condenser pipe).

Compressor Oil:: ND-OIL 8 or equivalent

iii.

Install the 2 O-rings to the air conditioner tube assembly (condenser pipe).

iv.

Install the air conditioner tube assembly (front cooler pipe) to the air conditioner tube assembly (condenser pipe).

0.667,0.333 0.979,0.531 0.313,0.198 10 false *a 2.354,0.333 2.667,0.531 0.313,0.198 10 false *b 0.083,0.583 0.396,0.781 0.313,0.198 10 false *c 1.792,0.531 2.104,0.729 0.313,0.198 10 false *d

*a	Correct
*b	Incorrect
*c	No Gap
*d	Gap

Install the piping clamp to the air conditioner tube assembly (front cooler pipe).

NOTICE:: Make sure that the piping clamp is engaged securely with no gap.

Hide Display 2. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201902,201906,_58,_079316,_0384872,RM100000001GISH_01_0002,201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0002,

Hide Display 3. WARM UP ENGINE

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201902,201906,_58,_079316,_0384872,RM100000001GISH_01_0003,201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0003,

Hide Display 4.INSPECT FOR REFRIGERANT LEAK

Click hereVehicle Interior>HEATING / AIR CONDITIONING>REFRIGERANT>REPLACEMENT201902,201906,_58,_079316,_0384872,RM100000001GISH_01_0004,201906,999999,_58,_079316,_0384872,RM100000001IHVK_01_0004,
