RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0390092 REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT BELT  REAR SEAT OUTER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73330M 1.INSTALL REAR 2 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH

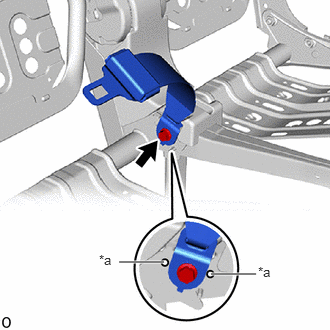

a.
B541689C01
2.198,2.854 2.667,2.854 true 1.24,2.729 1.708,2.729 true 2.688,2.75 3,2.906 0.313,0.156 10 false *a 1.031,2.625 1.219,2.844 0.188,0.219 10 false *a
*a Protruding Part


Install the rear 2 persons seat lap type belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 2 persons seat lap type belt assembly RH to overlap the protruding part.



b.
B540035C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 73330N 3.INSTALL REAR 2 PERSONS SEAT LAP TYPE BELT ASSEMBLY LH

a.
B541376C01
2.26,2.188 3.042,2.188 3.042,2.188 3.042,2.708 true 2.667,2.188 2.667,2.99 true 2.063,2.094 2.25,2.313 0.188,0.219 10 true *a
*a Protruding Part


Install the rear 2 persons seat lap type belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 2 persons seat lap type belt assembly LH to overlap the protruding part.



Hide 72525M 8.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.
