RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0390091 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 73380M 1.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY LH

a.

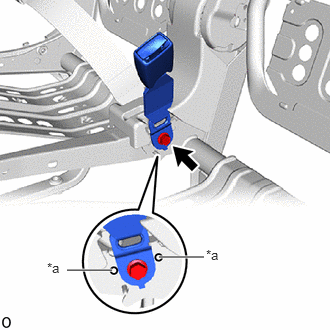

B541687C01
1.656,2.677 2.125,2.677 true 0.698,2.813 1.167,2.813 true 2.146,2.573 2.458,2.729 0.313,0.156 10 false *a 0.49,2.708 0.677,2.927 0.188,0.219 10 false *a
*a Protruding Part


Install the rear 2 persons seat belt assembly LH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 2 persons seat belt assembly LH to overlap the protruding part.



b.
B540035C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 73380N 3.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY RH

a.

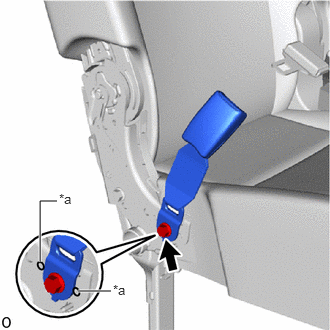

B541378C02
0.813,3.031 1.156,3.031 true 0.417,2.729 0.417,2.094 0.417,2.094 0.594,2.094 true 1.177,2.938 1.354,3.115 0.177,0.177 10 false *a 0.615,1.99 0.792,2.167 0.177,0.177 10 false *a
*a Protruding Part


Install the rear 2 persons seat belt assembly RH with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear 2 persons seat belt assembly RH to overlap the protruding part.



Hide 72525M 8.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.
