SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY RH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>REMOVAL201902,999999,_58,_078601,_0387386,RM100000001HB4S,

Hide Display 71834M 2.REMOVE RH SEAT REAR NO. 2 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)>DISASSEMBLY201902,999999,_58,_078601,_0387386,RM100000001HB4T_02_0076,

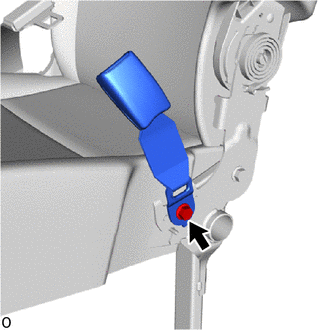

Hide Display 73380L 3.REMOVE REAR 1 PERSON SEAT BELT ASSEMBLY

Remove the bolt and rear 1 person seat belt assembly.
