RM35X0E _54 Brake _078668 BRAKE SYSTEM (OTHER) _0381539 BRAKE BOOSTER(for RHD) A

BRAKE SYSTEM (OTHER)  BRAKE BOOSTER(for RHD)  REASSEMBLY


PROCEDURE

Hide 83390 1.INSTALL VACUUM WARNING SWITCH ASSEMBLY

a.

Install a new grommet to the brake booster assembly.


b.

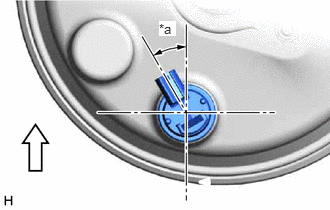

C412527C01
1.656,0.219 1.833,0.375 0.177,0.156 10 true *a
*a 30°
V100136

Up


Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.


Hide 89421B 2.INSTALL VACUUM SENSOR (w/ Stop and Start System)

a.

Install a new vacuum sensor grommet to the brake booster assembly.


b.

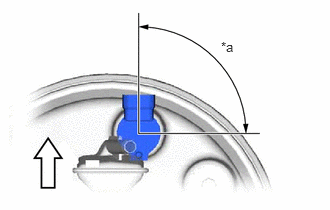

C414046C01
2.302,0.406 2.583,0.646 0.281,0.24 10 false *a
*a 90°
V100136

Up


Install the vacuum sensor to the brake booster assembly so that the vacuum sensor is angled as shown in the illustration.


Hide 47264 3.INSTALL MASTER CYLINDER PUSH ROD CLEVIS

a.

Temporarily install the clevis lock nut and brake master cylinder push rod clevis to the brake booster assembly.

NOTICE:

Fully tighten the clevis lock nut when adjusting the brake pedal height.
