RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389971 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

PROCEDURE

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>REMOVAL201902,999999,_58,_078601,_0387368,RM100000001HB52,

Hide Display 79J67E 2.REMOVE REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.

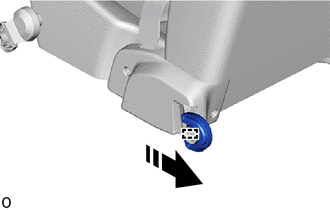

B538103C01

0,0 0,0 false

V113147

Remove in this Direction

Detach the hook and remove the rear No. 3 seat No. 3 leg side cover as shown in the illustration.

Hide Display 71834Q 3.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

Click hereVehicle Interior>SEAT>REAR SEAT ASSEMBLY (for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)>DISASSEMBLY201902,999999,_58,_078601,_0387368,RM100000001HB53_02_0008,

Hide Display 71833Q 4.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

HINT:: Use the same procedure described for the LH side.

Hide Display 73380N 5.REMOVE REAR 2 PERSONS SEAT BELT ASSEMBLY LH

a.

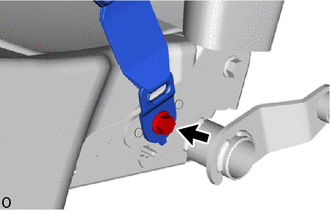

B540998

Remove the bolt and rear 2 persons seat belt assembly LH.

Hide Display 73380M 6.REMOVE REAR 2 PERSONS SEAT BELT ASSEMBLY RH

HINT:: Use the same procedure described for the LH side.
