RM35X0E _58 Vehicle Interior _078601 SEAT _0387368 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79290E 1.INSTALL NO. 2 SEATBACK SPRING ASSEMBLY LH

a.

Attach the guide.

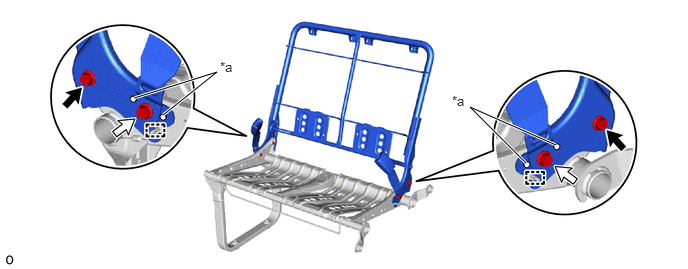

B541019C01
1.396,1.021 2.26,0.75 2.26,0.75 1.698,1.198 true 5.479,1.698 4.896,1.115 4.896,1.115 5.792,1.51 true 2.292,0.615 2.604,0.771 0.313,0.156 10 false *a 4.708,0.969 4.885,1.167 0.177,0.198 10 false *a
*a Protruding Part - -
V100135

Bolt A
V100136

Bolt B



b.

Temporarily install the No. 2 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear 2 persons seat belt assembly LH and rear 2 persons seat belt assembly RH with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 2 persons seat belt assembly LH and rear 2 persons seat belt assembly RH to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

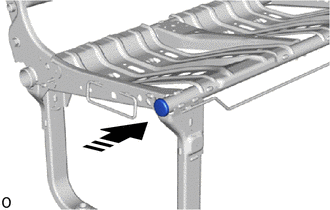

Hide 72345R 2.INSTALL NO. 2 SEAT STAND FRAME CAP LH

a.
B541017C01
0,0 0,0 false
V113147

Install in this Direction


Install the No. 2 seat stand frame cap LH.


Hide 79285C 3.INSTALL NO. 2 SEATBACK PAD LH

a.

Install the No. 2 seatback pad LH.


Hide 4.INSTALL SEAT COVER WIRE

a.

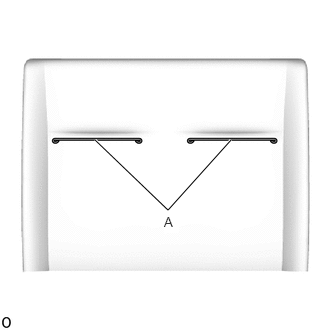

B541015N01
0.99,1.458 1.75,2.188 1.75,2.188 2.406,1.458 true 1.708,2.229 1.865,2.427 0.156,0.198 10 true A

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



Dimensions:
A 210 mm (8.27 in.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79024D 5.INSTALL NO. 2 SEATBACK COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 2 seatback cover sub-assembly LH, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION

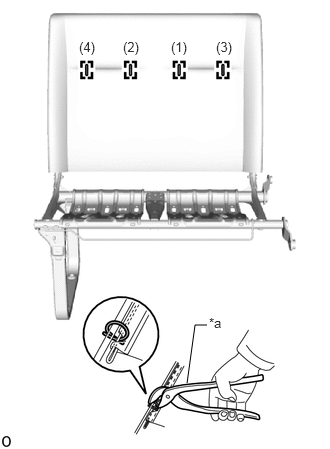

a.
B541014C01
1.948,3.99 2.031,3.385 2.031,3.385 2.156,3.385 false 2.177,3.281 2.49,3.438 0.313,0.156 10 false *a 1.781,0.406 2,0.615 0.219,0.208 10 true (1) 1.281,0.406 1.5,0.615 0.219,0.208 10 true (2) 2.25,0.406 2.469,0.615 0.219,0.208 10 true (3) 0.823,0.406 1.042,0.615 0.219,0.208 10 true (4)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 2 seatback cover sub-assembly LH to the No. 2 seatback pad LH with 4 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 2 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seatback cover sub-assembly LH.




b.
B541012

Attach the hook.


c.

Close the 2 fasteners and insert them as shown in the illustration.

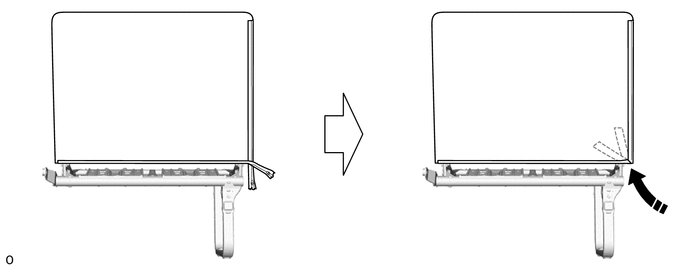

B541011C01
0,0 0,0 false
V113147

Insert in this Direction - -



Hide 74610W 6.INSTALL ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.
B538030

Install the assist grip assembly with the 2 screws.


Hide 74F17 7.INSTALL ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538029

Attach the claw and install the assist grip plug.


Hide 73460C 8.INSTALL REAR CENTER SEAT INNER BELT ASSEMBLY

a.

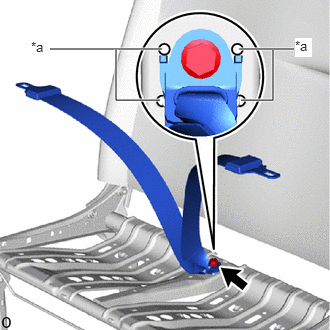

B541009C01
0.521,0.51 1.688,0.51 true 1.208,0.51 1.208,1.042 1.208,1.042 1.667,1.042 true 2.49,0.51 3.063,0.51 true 2.844,0.521 2.844,1.042 2.844,1.042 2.51,1.042 true 0.323,0.406 0.5,0.604 0.177,0.198 10 false *a 3.073,0.396 3.25,0.594 0.177,0.198 10 true *a
*a Protruding Part


Install the rear center seat inner belt assembly with the bolt.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the anchor part of the rear center seat inner belt assembly to overlap the protruding part.

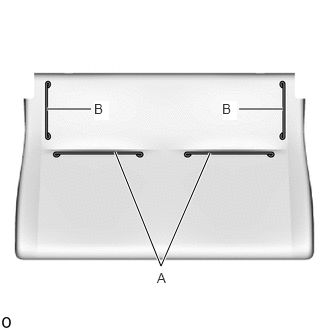

Hide 9.INSTALL SEAT COVER WIRE

a.
B541007N01
2.188,1.594 1.677,2.771 1.677,2.771 1.198,1.583 true 0.49,1.135 0.948,1.135 true 2.49,1.135 2.948,1.135 true 1.635,2.813 1.792,3.01 0.156,0.198 10 false A 0.979,1.052 1.135,1.25 0.156,0.198 10 true B 2.313,1.052 2.469,1.25 0.156,0.198 10 true B

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.



Dimensions:
A 210 mm (8.27 in.)
B 120 mm (4.72 in.)


HINT:
B376752

The dimension shown in the illustration is the length.



Hide 79022B 10.INSTALL NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 2 seat cushion cover sub-assembly LH, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

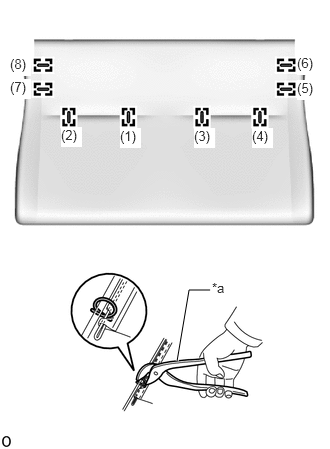

B541006C01
1.844,3.76 1.969,3.021 1.969,3.021 2.188,3.021 true 2.208,2.917 2.521,3.073 0.313,0.156 10 false *a 1.25,1.333 1.469,1.542 0.219,0.208 10 true (1) 0.635,1.323 0.854,1.531 0.219,0.208 10 true (2) 2.021,1.333 2.24,1.542 0.219,0.208 10 true (3) 2.625,1.333 2.844,1.542 0.219,0.208 10 true (4) 3.094,0.833 3.313,1.042 0.219,0.208 10 true (5) 3.094,0.573 3.313,0.781 0.219,0.208 10 true (6) 0.104,0.583 0.323,0.792 0.219,0.208 10 true (8) 0.104,0.823 0.323,1.031 0.219,0.208 10 true (7)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 2 seat cushion cover sub-assembly LH with 8 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 2 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 2 seat cushion cover sub-assembly LH.




b.
B541004C02
0,0 0,0 false
V100155

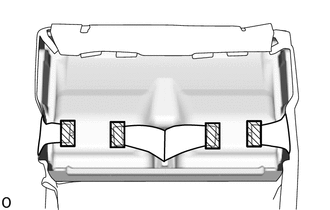

Fastening Tape


Attach the fastening tape.


Hide 11.INSTALL SEAT CUSHION COVER WITH PAD

a.
B541003

Attach the hook.


b.

Close the cover and insert it between the seat cushion pad and No. 2 seat leg sub-assembly LH as shown in the illustration.

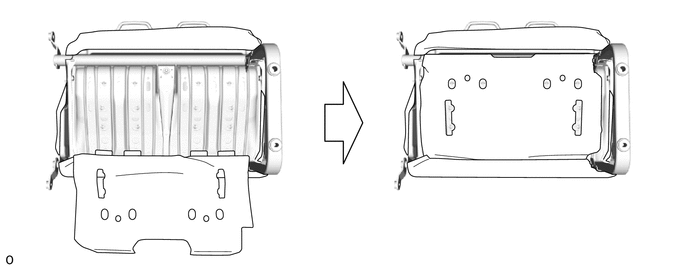

B541002

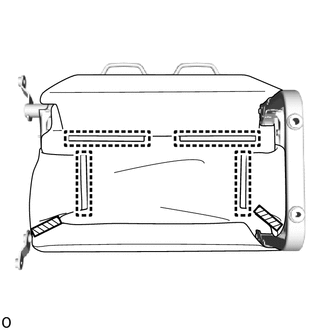

c.
B541000C01
0,0 0,0 false
V100155

Fastening Tape


Attach the hook and fastening tape and install the seat cushion cover with pad.


Hide 73380M 13.INSTALL REAR 2 PERSONS SEAT BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 71834Q 14.INSTALL LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

a.
B540997C01

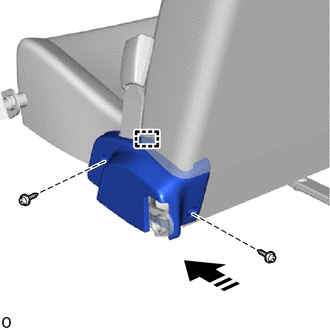

0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the LH seat rear No. 3 seat reclining cover LH with the 2 screws as shown in the illustration.


Hide 71833Q 15.INSTALL LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 79J67D 16.INSTALL REAR NO. 3 SEAT NO. 2 LEG SIDE COVER

a.
B540995C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.
B540993

Attach the claw and install the rear No. 3 seat No. 2 leg side cover.

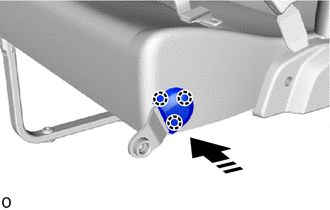

Hide 79J67C 17.INSTALL REAR NO. 3 SEAT NO. 1 LEG SIDE COVER

a.
B540992C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 3 seat No. 1 leg side cover as shown in the illustration.

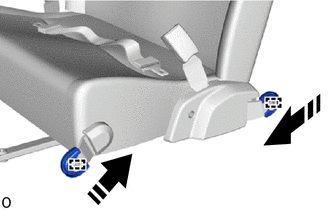

Hide 79J67E 18.INSTALL REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.
B540990C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the 2 rear No. 3 seat No. 3 leg side covers as shown in the illustration.
