RM35X0E _58 Vehicle Interior _078601 SEAT _0387368 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt without Headrest)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

Use the same procedure for the RH and LH sides.

·

The following procedure is for the LH side.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79J67E 1.REMOVE REAR NO. 3 SEAT NO. 3 LEG SIDE COVER

a.

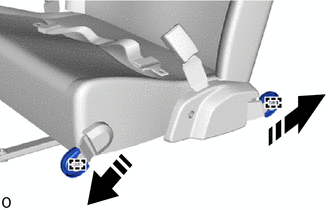

B540989
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 3 seat No. 3 leg side covers as shown in the illustration.


Hide 79J67C 2.REMOVE REAR NO. 3 SEAT NO. 1 LEG SIDE COVER

a.

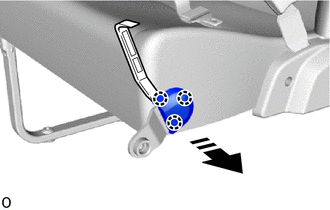

B540991
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 3 seat No. 1 leg side cover as shown in the illustration.


Hide 79J67D 3.REMOVE REAR NO. 3 SEAT NO. 2 LEG SIDE COVER

a.

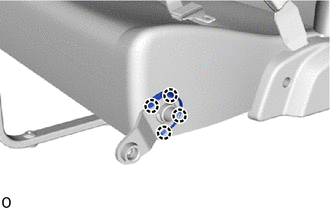

B540993

Detach the claw.


b.

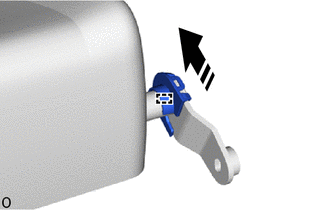

B540994
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 3 seat No. 2 leg side cover as shown in the illustration.


Hide 71834Q 4.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER LH

a.

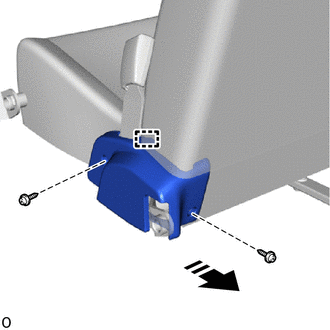

B540996
0,0 0,0 false
V113147

Remove in this Direction


Remove the 2 screws.


b.

Detach the guide and remove the LH seat rear No. 3 seat reclining cover LH as shown in the illustration.


Hide 71833Q 5.REMOVE LH SEAT REAR NO. 3 SEAT RECLINING COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 73380M 7.REMOVE REAR 2 PERSONS SEAT BELT ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 8.REMOVE SEAT CUSHION COVER WITH PAD

a.

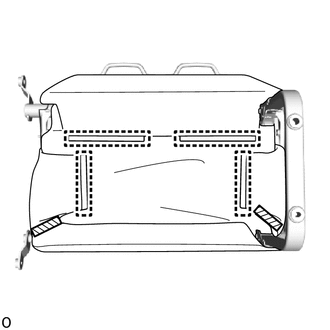

B541000
0,0 0,0 false
V100155

Fastening Tape


Detach the hook and fastening tape.


b.

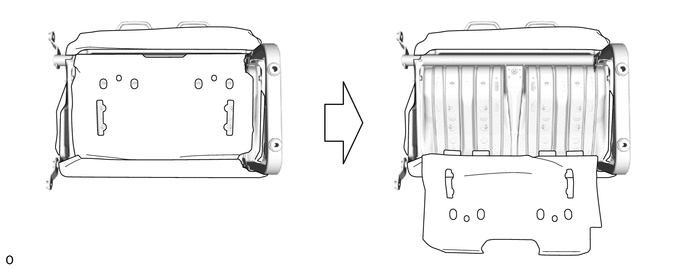

Open the cover as shown in the illustration.

B541001


c.

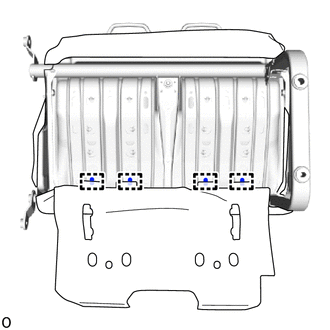

B541003

Detach the hook and remove the seat cushion cover with pad.


Hide 79022B 9.REMOVE NO. 2 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

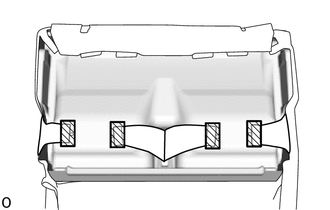

B541004
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.

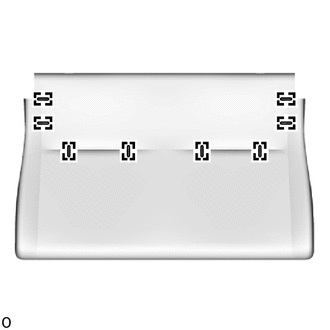

B541005

Remove the 8 hog rings and No. 2 seat cushion cover sub-assembly LH.

NOTICE:

Be careful not to dirty or damage the No. 2 seat cushion cover sub-assembly LH.



Hide 10.REMOVE SEAT COVER WIRE

a.

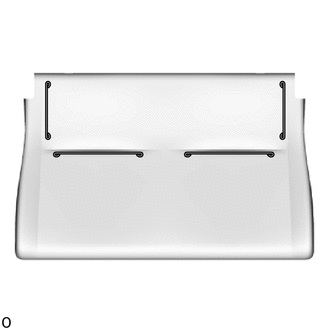

B541007

Remove the seat cover wire.


Hide 73460C 11.REMOVE REAR CENTER SEAT INNER BELT ASSEMBLY

a.

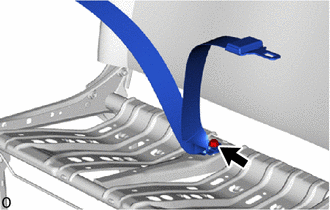

B541008

Remove the bolt and rear center seat inner belt assembly.


Hide 74F17 12.REMOVE ASSIST GRIP PLUG

HINT:

Use the same procedure for all assist grip plugs.


a.
B538028C01
0,0 0,0 false
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the assist grip plug.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 74610W 13.REMOVE ASSIST GRIP ASSEMBLY

HINT:

Use the same procedure for all assist grip assemblies.


a.
B538030

Remove the 2 screws and assist grip assembly.


Hide 79024D 14.REMOVE NO. 2 SEATBACK COVER SUB-ASSEMBLY LH

a.

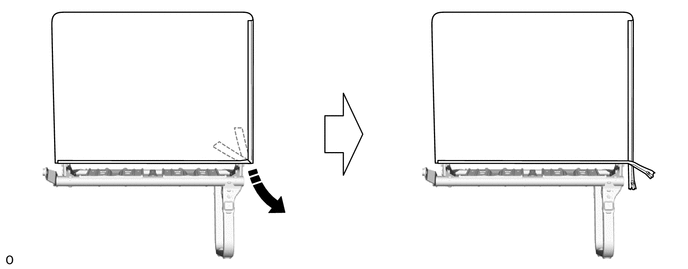

Pull out and open the 2 fasteners.

B541010
0,0 0,0 false
V113147

Pull out in this Direction - -



b.

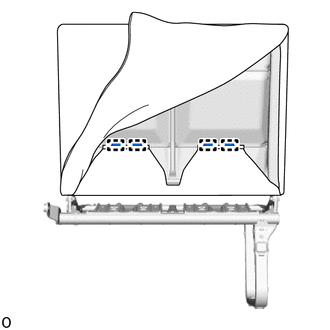

B541012

Detach the hook.


c.

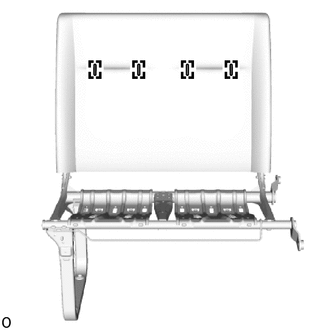

B541013

Remove the 4 hog rings and No. 2 seatback cover sub-assembly LH.

NOTICE:

Be careful not to dirty or damage the No. 2 seatback cover sub-assembly LH.



Hide 15.REMOVE SEAT COVER WIRE

a.
B541015

Remove the seat cover wire.


Hide 79285C 16.REMOVE NO. 2 SEATBACK PAD LH

a.

Remove the No. 2 seatback pad LH.


Hide 72345R 17.REMOVE NO. 2 SEAT STAND FRAME CAP LH

a.

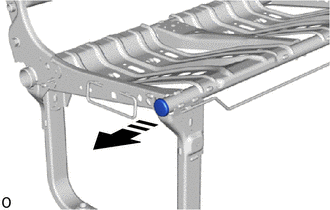

B541016
0,0 0,0 false
V113147

Remove in this Direction


Remove the No. 2 seat stand frame cap LH as shown in the illustration.


Hide 79290E 18.REMOVE NO. 2 SEATBACK SPRING ASSEMBLY LH

a.

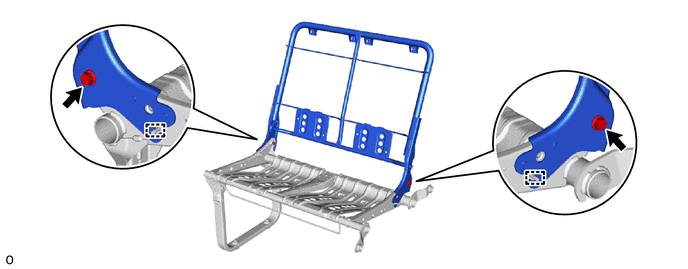

Remove the 2 bolts.

B541018


b.

Detach the guide and remove the No. 2 seatback spring assembly LH.
