RM35X0E _58 Vehicle Interior _078601 SEAT _0387367 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79290E 1.INSTALL NO. 2 SEATBACK SPRING ASSEMBLY LH

a.

Attach the guide.

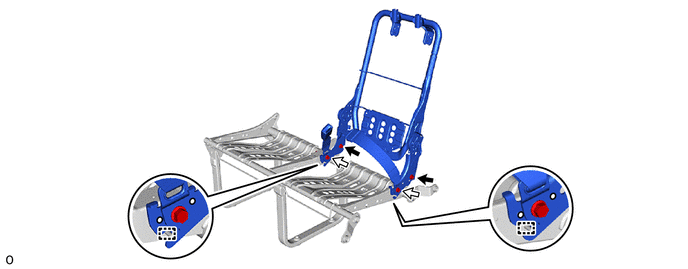

B541697
1.646,2.281 0.885,1.688 0.885,1.688 1.99,2.083 true 5.427,2.219 5.969,1.458 5.969,1.458 5.76,2.01 true 0.688,1.531 0.875,1.74 0.188,0.208 10 false *a 5.948,1.24 6.125,1.438 0.177,0.198 10 false *a
*a Protruding Part - -
V100135

Bolt A
V100136

Bolt B



b.

Temporarily install the No. 2 seatback spring assembly LH with the 2 bolts A.


c.

Temporarily install the rear 2 persons seat belt assembly LH and rear 2 persons seat lap type belt assembly LH with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 2 persons seat belt assembly LH and rear 2 persons seat lap type belt assembly LH to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 79280E 2.INSTALL NO. 2 SEATBACK SPRING ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 71H76N 3.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

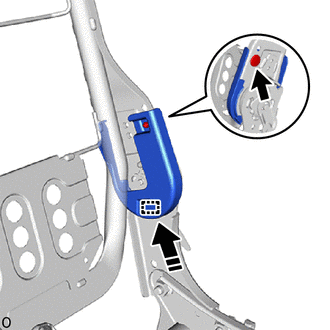

B541683
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the LH seat reclining adjuster inside cover LH as shown in the illustration.


b.

Install the clip.


Hide 71H75R 4.INSTALL LH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

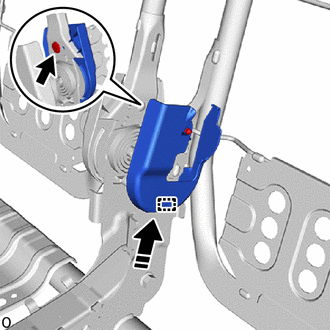

B541694
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the LH seat reclining adjuster inside cover RH as shown in the illustration.


b.

Install the clip.


Hide 71873Y 5.INSTALL REAR SEAT LOWER CUSHION SHIELD

a.
B542921
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape and install the rear seat cushion cover.


b.
B540035
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


c.
B541692

Attach the guide.


d.

Install the rear seat lower cushion shield with the screw.


Hide 71874X 6.INSTALL REAR SEAT LOWER CUSHION SHIELD LH

a.

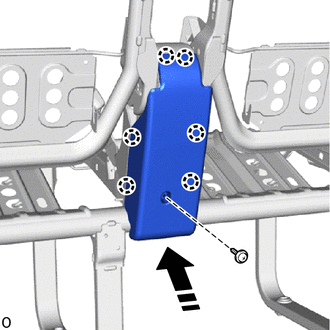

B541691
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


b.

Install the rear seat lower cushion shield LH with the screw.


Hide 72552P 7.INSTALL LH SEAT RECLINING HINGE COVER LH

a.
B542906
0.083,0.083 0.344,0.302 0.26,0.219 12 true *A 0.083,2.417 0.344,2.635 0.26,0.219 12 true *B
*A w/ Seatback Board
*B w/o Seatback Board


Attach the guide and install the LH seat reclining hinge cover LH.


Hide 72551R 8.INSTALL LH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72345Q 9.INSTALL NO. 1 SEAT STAND FRAME CAP LH

a.
B541675

Install the No. 1 seat stand frame cap LH.


Hide 10.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION



B536985
3.917,1.656 4.521,2.083 4.521,2.083 5.104,1.646 true 2.031,1.656 2.552,2.094 2.552,2.094 3.188,1.656 true 2.604,1.208 3.552,0.688 3.552,0.688 4.521,1.198 true 2.031,0.844 3.552,0.354 3.552,0.354 5.104,0.865 true 3.51,0.156 3.667,0.354 0.156,0.198 10 true A 3.51,0.49 3.667,0.688 0.156,0.198 10 true B 2.479,2.135 2.635,2.333 0.156,0.198 10 true B 4.469,2.125 4.625,2.323 0.156,0.198 10 true B

Dimensions:
A 120 mm (4.72 in.) B 210 mm (8.27 in.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79012A 11.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seat cushion cover sub-assembly LH, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly LH to the No. 1 seat cushion pad LH with 16 new hog rings in the order indicated in the illustration.

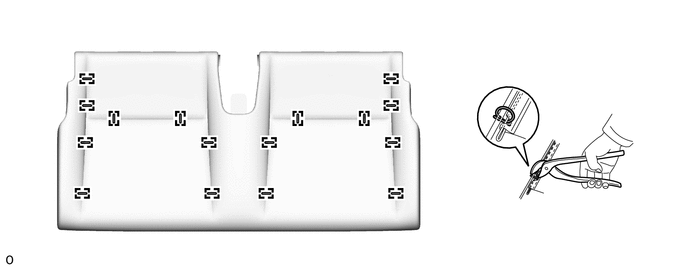

B536984
5.854,1.854 5.771,2.281 false 5.677,2.292 5.99,2.448 0.313,0.156 10 false *a 1.802,0.938 2.01,1.135 0.208,0.198 10 true (5) 1.104,0.938 1.333,1.125 0.229,0.188 10 true (6) 1.865,1.375 2.073,1.573 0.208,0.198 10 true (1) 3.021,0.927 3.24,1.115 0.219,0.188 10 true (7) 3.708,0.938 3.938,1.125 0.229,0.188 10 true (8) 0.469,1.917 0.76,2.115 0.292,0.198 10 true (10) 0.573,1.385 0.781,1.573 0.208,0.188 10 true (9) 0.51,1 0.802,1.198 0.292,0.198 10 true (11) 0.51,0.719 0.792,0.917 0.281,0.198 10 true (12) 4.188,0.729 4.49,0.927 0.302,0.198 10 true (16) 4.198,1.396 4.5,1.615 0.302,0.219 10 true (13) 4.229,1.927 4.531,2.125 0.302,0.198 10 true (14) 4.177,1.01 4.469,1.208 0.292,0.198 10 true (15) 1.906,1.917 2.115,2.115 0.208,0.198 10 true (2) 2.896,1.396 3.104,1.594 0.208,0.198 10 true (3) 2.875,1.927 3.083,2.125 0.208,0.198 10 true (4)
*a Hog Ring Pliers - -


NOTICE:
·

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly LH.




b.

Attach the fastening tape.

B536982
0,0 0,0 false
V100155

Fastening Tape - -



Hide 12.INSTALL SEAT CUSHION COVER WITH PAD

a.

Attach the hook and install the seat cushion cover with pad.

B541672


b.

Attach the fastening tape.

B541671
0,0 0,0 false
V100155

Fastening Tape - -



Hide 79185A 13.INSTALL NO. 1 SEATBACK PAD LH

a.

Install the No. 1 seatback pad LH.


Hide 79175F 14.INSTALL NO. 1 SEATBACK PAD RH

a.

Install the No. 1 seatback pad RH.


Hide 15.INSTALL SEAT COVER WIRE

HINT:

Use the same procedure for the other side.


a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION



B541669
0.052,0.073 3.542,2.594 3.49,2.521 3.604,0.073 7.094,2.594 3.49,2.521 0.781,1.667 0.813,1.198 true 4.344,1.667 4.375,1.198 true 6.229,2.208 5.417,2.323 true 2.729,2.281 1.823,2.333 1.823,2.333 2.458,2.042 true 0.073,0.094 0.333,0.313 0.26,0.219 12 false *A 3.625,0.094 3.917,0.313 0.292,0.219 12 false *B 0.729,1.698 0.885,1.896 0.156,0.198 10 false A 4.302,1.688 4.458,1.885 0.156,0.198 10 false A 5.24,2.25 5.396,2.448 0.156,0.198 10 false B 1.646,2.271 1.802,2.469 0.156,0.198 10 false B
*A w/ Seatback Board *B w/o Seatback Board


Dimensions:
A 210 mm (8.27 in.) B 320 mm (1.05 ft.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79034A 16.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

HINT:

When installing a No. 1 seatback cover sub-assembly LH, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

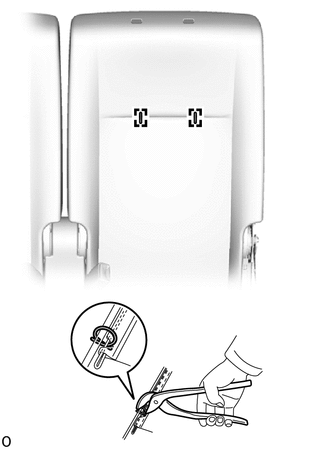

B541666
1.813,4.052 1.948,3.281 1.948,3.281 2.104,3.281 false 2.125,3.188 2.323,3.375 0.198,0.188 10 false *a 1.385,0.917 1.583,1.115 0.198,0.198 10 true (1) 1.948,0.917 2.156,1.115 0.208,0.198 10 true (2)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover sub-assembly LH to the No. 1 seatback pad LH with 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly LH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly LH.




b.

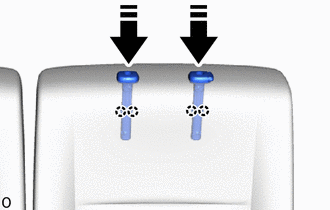

B541662
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


c.

w/o Seatback Board:

i.

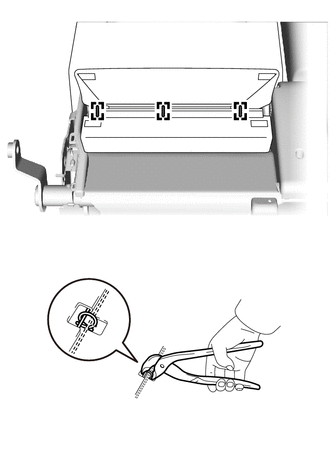

B542907
1.875,3.667 1.969,2.948 1.969,2.948 2.188,2.948 false 2.208,2.844 2.521,3 0.313,0.156 10 false *a 1.615,0.823 1.833,1.042 0.219,0.219 10 false (1) 0.927,0.823 1.146,1.042 0.219,0.219 10 true (2) 2.427,0.823 2.646,1.042 0.219,0.219 10 true (3)
*a Hog Ring Pliers


Install 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.



ii.
B536724
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.



d.

w/ Seatback Board:

i.

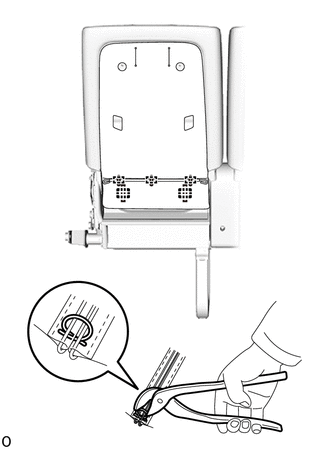

B541658
1.99,3.99 2.073,3.448 2.073,3.448 2.208,3.448 false 1.229,1.823 1.229,1.531 1.229,1.531 2.396,1.531 true 1.573,1.833 1.573,1.531 true 1.979,1.833 1.979,1.531 true 1.281,2.042 1.594,2.667 1.594,2.667 1.927,2.042 true 2.417,1.427 2.615,1.625 0.198,0.198 10 true *a 1.521,2.688 1.833,2.844 0.313,0.156 10 false *b 2.229,3.344 2.542,3.5 0.313,0.156 10 false *c 1.5,1.927 1.719,2.135 0.219,0.208 10 true (1) 0.948,1.771 1.167,1.979 0.219,0.208 10 true (2) 2.052,1.781 2.271,1.99 0.219,0.208 10 true (3)
*a Hog Ring
*b Hook
*c Hog Ring Pliers


Attach the hook.


ii.

Install 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.




Hide 79013D 17.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 71701A 18.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.

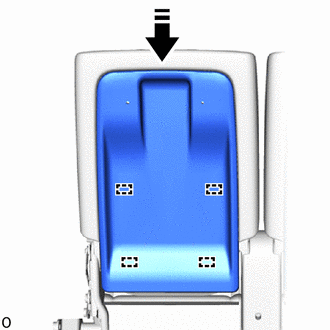

B541387
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear seatback board sub-assembly RH as shown in the illustration.


Hide 74690A 19.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B541385

Install the rear seat assist grip assembly with the 2 screws.


b.
B541384C01
0,0 0,0 false
V113147

Close in this Direction


Close the 2 covers and attach the claw as shown in the illustration.


Hide 71834N 20.INSTALL LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.
B541339
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


ii.

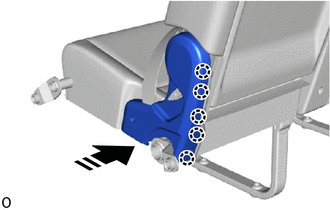

B541337
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


iii.
B541335

Install the LH seat rear No. 2 seat reclining cover LH with the 2 screws.



b.

w/o Seatback Board:

i.

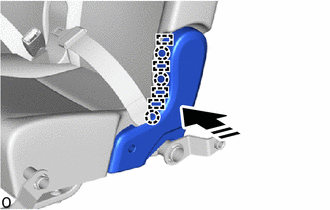

B541344
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.

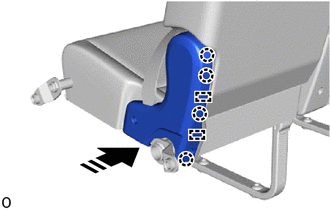

B541342
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


iii.
B541340

Install the LH seat rear No. 2 seat reclining cover LH with the 2 screws.



Hide 71833N 21.INSTALL LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.

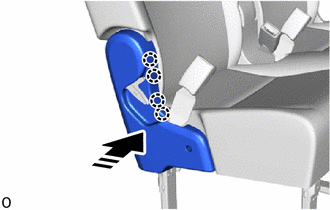

B541349
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


ii.

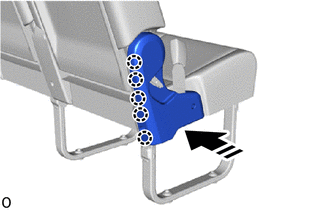

B541347
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


iii.
B541345

Install the LH seat rear No. 2 seat reclining cover RH with the 2 screws.



b.

w/o Seatback Board:

i.

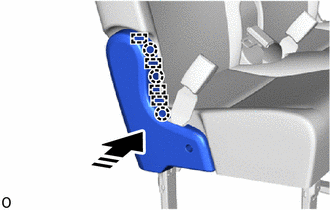

B541354
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.

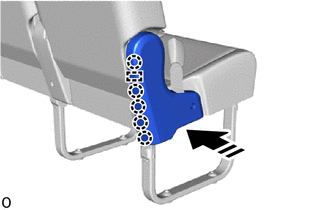

B541352
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


iii.
B541350

Install the LH seat rear No. 2 seat reclining cover RH with the 2 screws.



Hide 72526H 22.INSTALL RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

a.

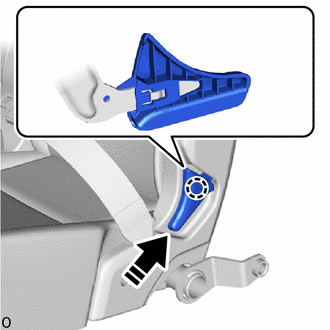

B541332
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the reclining adjuster release handle LH as shown in the illustration.


Hide 72525M 23.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 79967X 24.INSTALL REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.

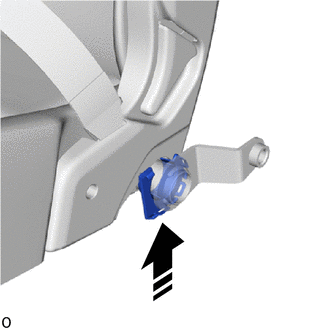

B541328
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.

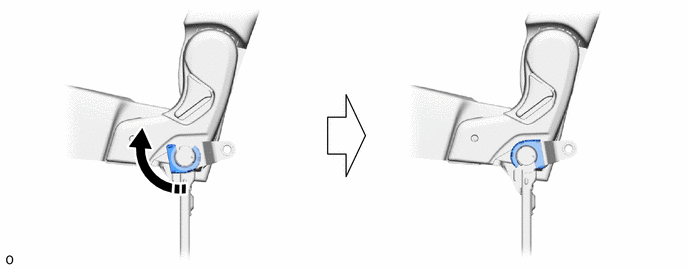

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B541324
0,0 0,0 false
V113147

Rotate in this Direction - -



c.
B541321

Attach the claw and install the rear No. 1 seat No. 5 leg side cover.


Hide 79967W 25.INSTALL REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.

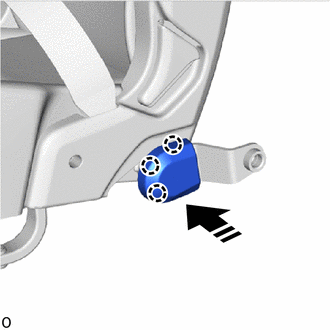

B541318
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967U 26.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.

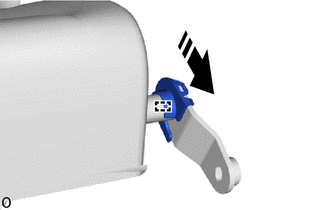

B535090
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.
B541315

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.


Hide 79967T 27.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.

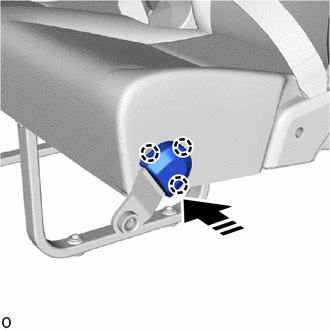

B541312
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967V 28.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

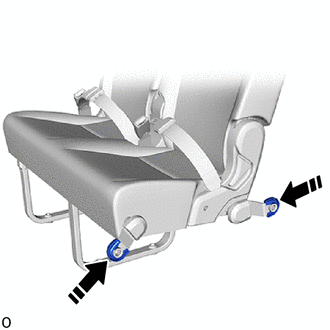

B541306
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.
