RM35X0E _58 Vehicle Interior _078601 SEAT _0387367 REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, 2-Passenger Seat with 2-Point Type Seat Belt and Headrest)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79967V 1.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.
B541305
0,0 0,0 false
V113147

Remove in this Direction

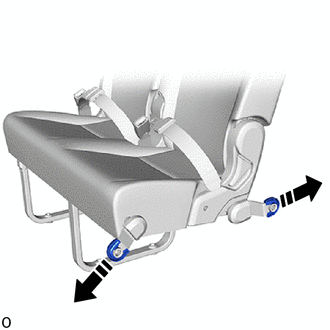

Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.


Hide 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER

a.
B541311
0,0 0,0 false
V113147

Remove in this Direction

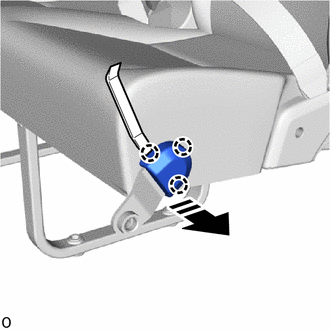

Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER

a.
B541315

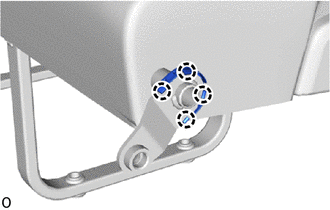

Detach the claw.


b.
B535089
0,0 0,0 false
V113147

Remove in this Direction

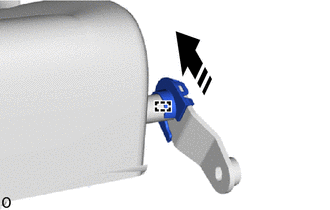

Detach hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.


Hide 79967W 4.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.
B541317
0,0 0,0 false
V113147

Remove in this Direction

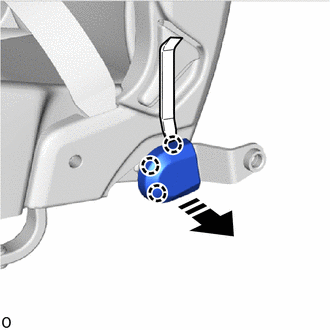

Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967X 5.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.
B541321

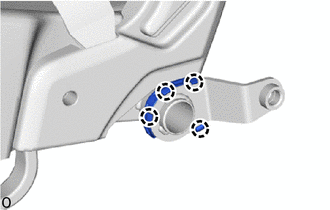

Detach the claw.


b.

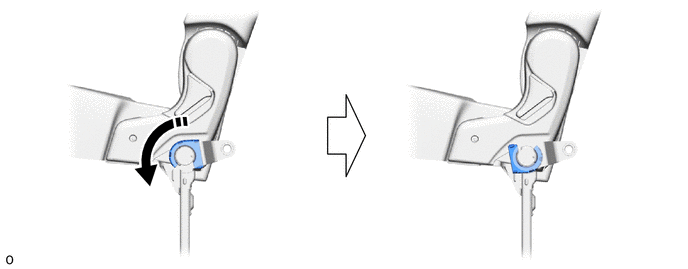

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B541323
0,0 0,0 false
V113147

Rotate in this Direction - -



c.
B541327
0,0 0,0 false
V113147

Remove in this Direction

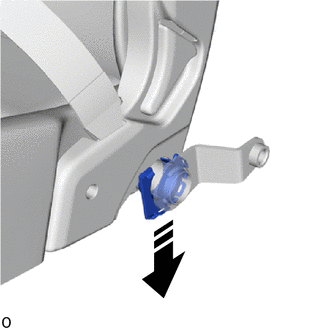

Detach the hook and remove the rear No. 1 seat No. 5 leg side cover as shown in the illustration.


Hide 72526H 6.REMOVE RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

a.
B541331
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape

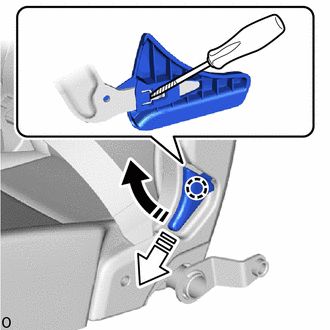

Using a thin-bladed screwdriver, detach the claw and remove the reclining adjuster release handle LH while lifting it up.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 72525M 7.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 71834N 8.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.
B541335

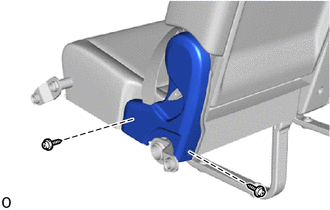

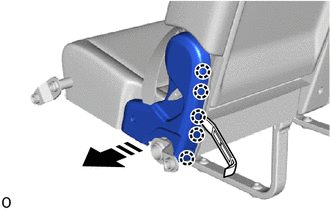

Remove the 2 screws.


ii.
B541336
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


iii.
B541338
0,0 0,0 false
V113147

Remove in this Direction

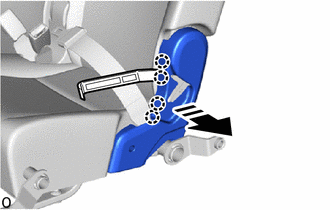

Using moulding remover A, detach the claw and remove the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.



b.

w/o Seatback Board:

i.
B541340

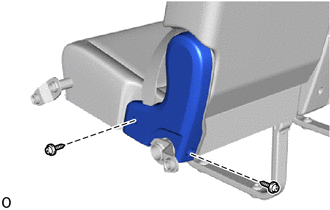

Remove the 2 screws.


ii.
B541341
0,0 0,0 false
V113147

Remove in this Direction

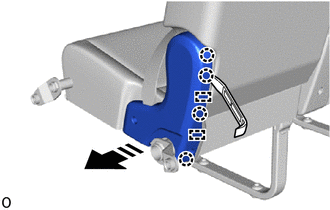

Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.
B541343
0,0 0,0 false
V113147

Remove in this Direction

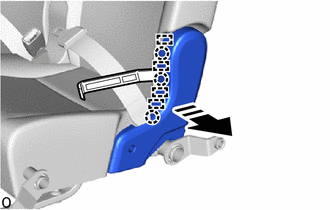

Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover LH as shown in the illustration.



Hide 71833N 9.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.
B541345

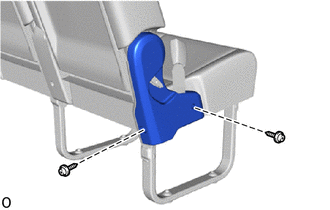

Remove the 2 screws.


ii.
B541346
0,0 0,0 false
V113147

Remove in this Direction

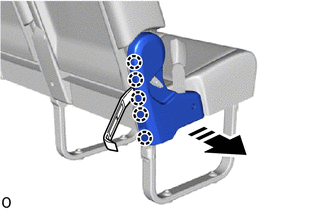

Using moulding remover A, detach the claw as shown in the illustration.


iii.
B541348
0,0 0,0 false
V113147

Remove in this Direction

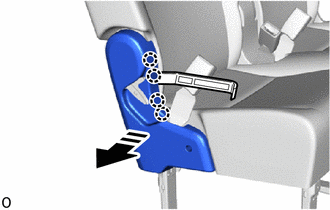

Using moulding remover A, detach the claw and remove the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.



b.

w/o Seatback Board:

i.
B541350

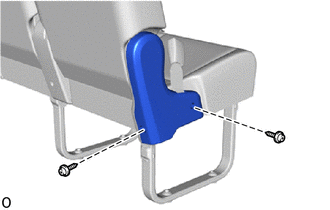

Remove the 2 screws.


ii.
B541351
0,0 0,0 false
V113147

Remove in this Direction

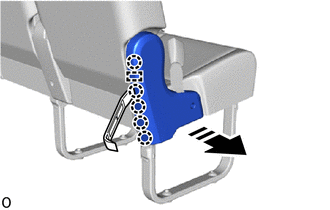

Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.
B541353
0,0 0,0 false
V113147

Remove in this Direction

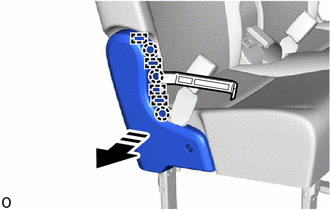

Using moulding remover A, detach the guide and claw and remove the LH seat rear No. 2 seat reclining cover RH as shown in the illustration.



Hide 74690A 12.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B541383C01
0,0 0,0 false
V113147

Open in this Direction

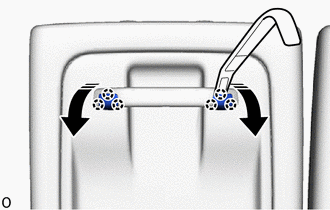

Using moulding remover A, detach the claw and open the 2 covers as shown in the illustration.


b.
B541385

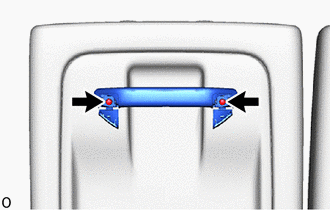

Remove the 2 screws and rear seat assist grip assembly.


Hide 71701A 13.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B541386
0,0 0,0 false
V113147

Remove in this Direction

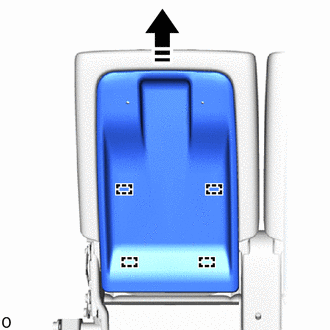

Detach the guide and remove the rear seatback board sub-assembly RH as shown in the illustration.


Hide 79034A 14.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY LH

a.

w/o Seatback Board:

i.
B536724
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


ii.
B542905

Remove the 3 hog rings.



b.

w/ Seatback Board:

i.
B541657
1.229,1.823 1.229,1.469 1.229,1.469 2.448,1.469 true 1.573,1.813 1.573,1.469 true 1.979,1.813 1.979,1.469 true 1.917,2.042 1.615,2.729 1.615,2.729 1.271,2.042 true 2.469,1.365 2.781,1.521 0.313,0.156 10 false *a 1.552,2.75 1.865,2.906 0.313,0.156 10 false *b
*a Hog Ring
*b Hook


Remove the 3 hog rings.


ii.

Detach the hook.



c.
B541661
0,0 0,0 false
V113147

Remove in this Direction

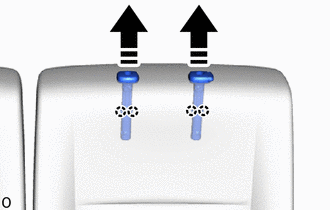

Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.


d.
B541665

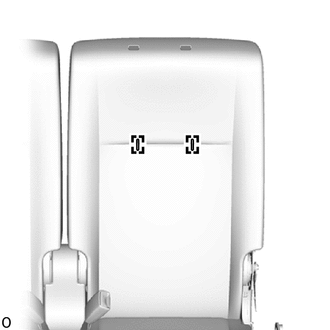

Remove the 2 hog rings and No. 1 seatback cover sub-assembly LH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly LH.



Hide 79013D 15.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.


Hide 16.REMOVE SEAT COVER WIRE

HINT:

Use the same procedure for the other side.


a.

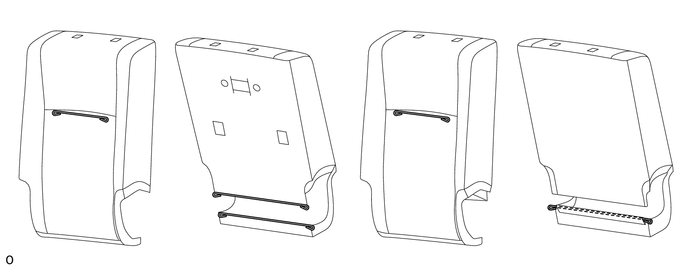

Remove the seat cover wire.

B541669
0.052,0.073 3.542,2.594 3.49,2.521 3.604,0.073 7.094,2.594 3.49,2.521 0.073,0.094 0.333,0.313 0.26,0.219 12 false *A 3.625,0.094 3.917,0.313 0.292,0.219 12 false *B
*A w/ Seatback Board *B w/o Seatback Board



Hide 79185A 17.REMOVE NO. 1 SEATBACK PAD LH

a.

Remove the No. 1 seatback pad LH.


Hide 79175F 18.REMOVE NO. 1 SEATBACK PAD RH

a.

Remove the No. 1 seatback pad RH.


Hide 19.REMOVE SEAT CUSHION COVER WITH PAD

a.

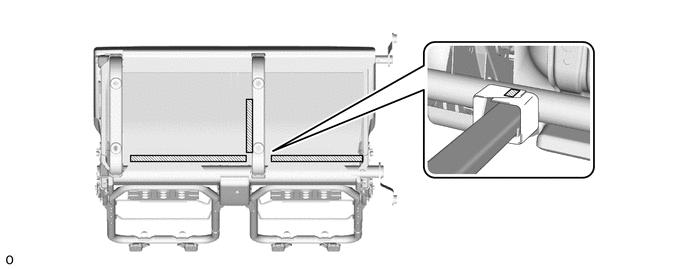

Detach the fastening tape.

B541671
0,0 0,0 false
V100155

Fastening Tape - -



b.

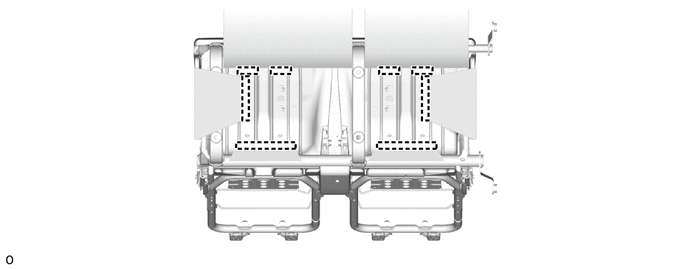

Detach the hook and remove the seat cushion cover with pad.

B541672


Hide 79012A 20.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY LH

a.

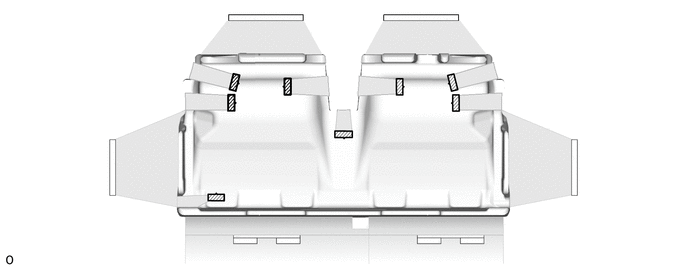

Detach the fastening tape.

B536982
0,0 0,0 false
V100155

Fastening Tape - -



b.

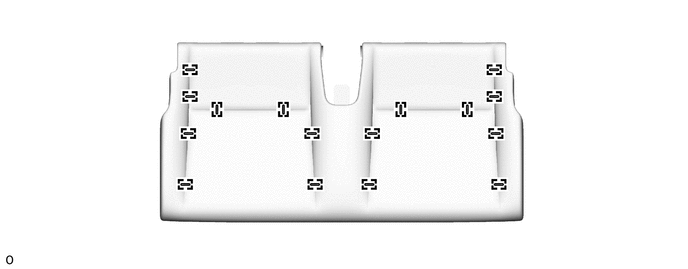

Remove the 16 hog rings and No. 1 seat cushion cover sub-assembly LH.

B536983

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly LH.



Hide 21.REMOVE SEAT COVER WIRE

a.

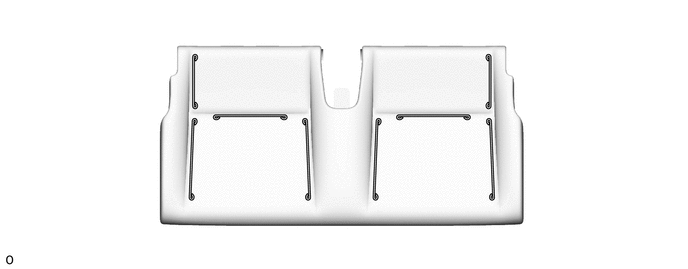

Remove the seat cover wire.

B536985

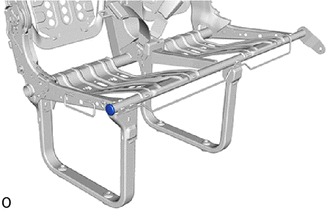

Hide 72345Q 22.REMOVE NO. 1 SEAT STAND FRAME CAP LH

a.
B541675

Remove the No. 1 seat stand frame cap LH.


Hide 72552P 23.REMOVE LH SEAT RECLINING HINGE COVER LH

a.
B542906
0.083,0.083 0.344,0.302 0.26,0.219 12 true *A 0.083,2.417 0.344,2.635 0.26,0.219 12 true *B
*A w/ Seatback Board
*B w/o Seatback Board

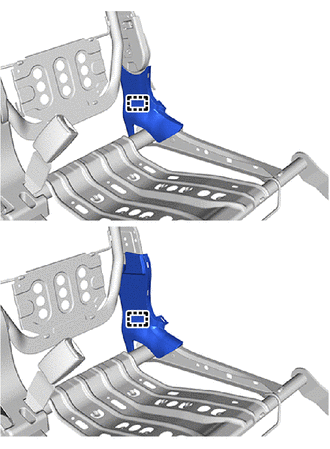

Detach the guide and remove the LH seat reclining hinge cover LH.


Hide 72551R 24.REMOVE LH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 71874X 25.REMOVE REAR SEAT LOWER CUSHION SHIELD LH

a.
B541690
0,0 0,0 false
V113147

Remove in this Direction

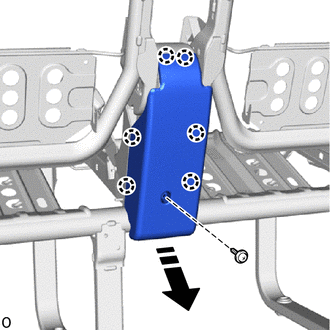

Remove the screw.


b.

Detach the claw and remove the rear seat lower cushion shield LH.


Hide 71873Y 26.REMOVE REAR SEAT LOWER CUSHION SHIELD

a.
B541692

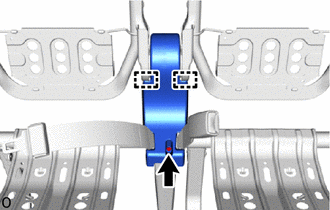

Remove the screw.


b.

Detach the guide and remove the rear seat lower cushion shield.

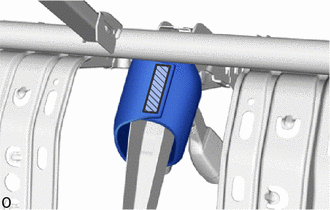

Hide 73380M 27.REMOVE REAR 2 PERSONS SEAT BELT ASSEMBLY LH

a.
B540035
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape and open the rear seat cushion cover.


b.
B542921
0,0 0,0 false
V100155

Fastening Tape

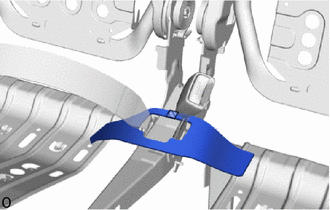

Detach the fastening tape and remove the rear seat cushion cover.


c.
B542916

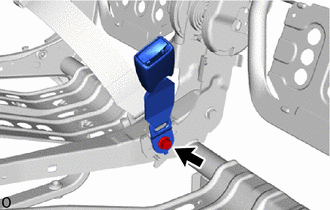

Remove the bolt and rear 2 persons seat belt assembly LH.


Hide 73330M 28.REMOVE REAR 2 PERSONS SEAT LAP TYPE BELT ASSEMBLY RH

a.
B542918

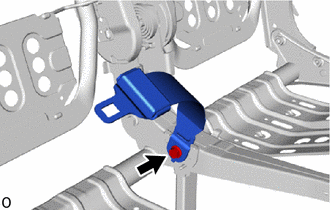

Remove the bolt and rear 2 persons seat lap type belt assembly RH.


Hide 71H76N 29.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B541682
0,0 0,0 false
V113147

Remove in this Direction

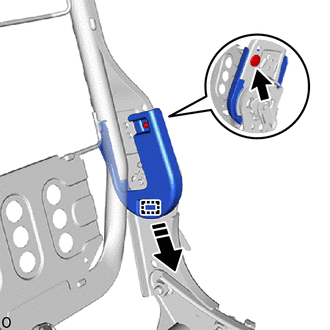

Remove the clip.


b.

Detach the guide and remove the LH seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71H75R 30.REMOVE LH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

HINT:

Use the same procedure for the other side.


a.
B541693
0,0 0,0 false
V113147

Remove in this Direction


Remove the clip.


b.

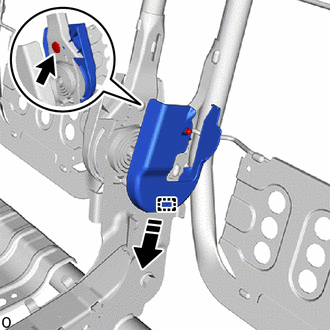

Detach the guide and remove the LH seat reclining adjuster inside cover RH as shown in the illustration.


Hide 79290E 31.REMOVE NO. 2 SEATBACK SPRING ASSEMBLY LH

a.
B541695

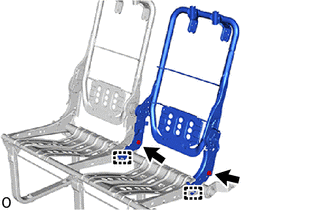

Remove the 2 bolts.


b.

Detach the guide and remove the No. 2 seatback spring assembly LH.


Hide 79280E 32.REMOVE NO. 2 SEATBACK SPRING ASSEMBLY RH

HINT:

Use the same procedure described for the LH side.
