RM35X0E _58 Vehicle Interior _078601 SEAT _0387386 REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)  REASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79280E 1.INSTALL NO. 2 SEATBACK SPRING ASSEMBLY RH

a.

Attach the guide.

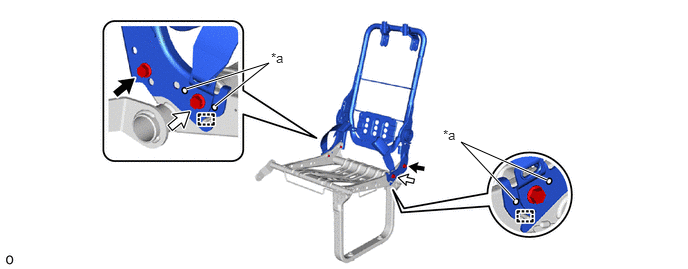

B541698C01
1.938,0.927 2.802,0.656 2.802,0.656 2.24,1.104 true 5.365,2.083 4.802,1.479 4.802,1.479 5.698,1.875 true 2.823,0.521 3.135,0.677 0.313,0.156 10 false *a 4.615,1.323 4.792,1.521 0.177,0.198 10 false *a
*a Protruding Part - -
V100135

Bolt A
V100136

Bolt B



b.

Temporarily install the No. 2 seatback spring assembly RH with the 2 bolts A.


c.

Temporarily install the rear 1 person seat belt assembly and rear 1 person seat lap type belt assembly with the 2 bolts B.

NOTICE:

Do not allow the anchor part of the rear 1 person seat belt assembly and rear 1 person seat lap type belt assembly to overlap the protruding part.



d.

Tighten the 4 bolts.

Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)


Hide 71H76L 2.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

a.

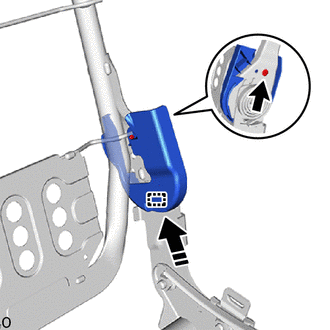

B541685C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the RH seat reclining adjuster inside cover LH as shown in the illustration.


b.

Install the clip.


Hide 71H75L 3.INSTALL RH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 72552L 4.INSTALL RH SEAT RECLINING HINGE COVER LH

a.
B542904C01
0.083,0.083 0.344,0.302 0.26,0.219 12 true *A 0.083,2.417 0.344,2.635 0.26,0.219 12 true *B
*A w/ Seatback Board
*B w/o Seatback Board


Attach the guide and install the RH seat reclining hinge cover LH.


Hide 72551N 5.INSTALL RH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72345N 6.INSTALL NO. 1 SEAT STAND FRAME CAP RH

a.

for Type A:

i.
B541676

Install the No. 1 seat stand frame cap RH.



b.

for Type B:

i.
B541677

Install the 2 No. 1 seat stand frame caps RH.



Hide 7.INSTALL SEAT COVER WIRE

a.

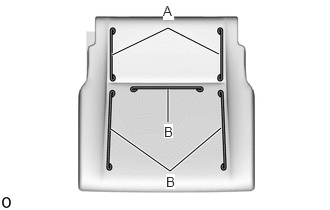

B536523N01
1.167,0.573 1.75,0.292 1.75,0.292 2.281,0.563 true 1.156,1.344 1.771,1.781 1.771,1.781 2.302,1.333 true 1.75,1.271 1.75,0.927 true 1.698,0.031 1.813,0.208 0.115,0.177 10 true A 1.729,1.813 1.823,1.969 0.094,0.156 10 true B 1.708,1.292 1.802,1.438 0.094,0.146 10 true B

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION



Length:
A 120 mm (4.72 in.)
B 210 mm (8.27 in.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79011E 8.INSTALL NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY

HINT:

When installing a No. 1 seat cushion cover sub-assembly, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

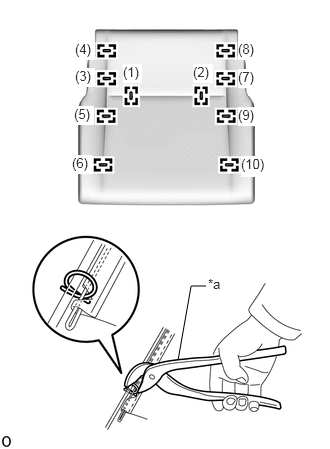

B536504C02
1.854,3.75 1.99,2.979 1.99,2.979 2.146,2.979 false 2.167,2.875 2.365,3.063 0.198,0.188 10 false *a 1.281,0.667 1.479,0.865 0.198,0.198 10 true (1) 2.01,0.667 2.219,0.865 0.208,0.198 10 true (2) 0.781,0.708 0.99,0.906 0.208,0.198 10 true (3) 0.781,0.427 0.99,0.625 0.208,0.198 10 true (4) 0.771,1.104 0.979,1.302 0.208,0.198 10 true (5) 0.75,1.615 0.958,1.813 0.208,0.198 10 true (6) 2.479,0.719 2.688,0.917 0.208,0.198 10 true (7) 2.479,0.427 2.688,0.625 0.208,0.198 10 true (8) 2.479,1.115 2.688,1.313 0.208,0.198 10 true (9) 2.51,1.625 2.813,1.844 0.302,0.219 10 true (10)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seat cushion cover sub-assembly to the No. 1 rear seat cushion pad with 10 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seat cushion cover sub-assembly.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seat cushion cover sub-assembly.




b.

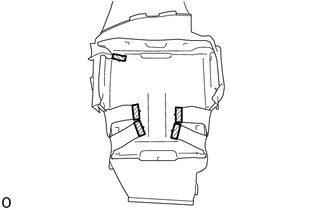

B536505C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 9.INSTALL SEAT CUSHION COVER WITH PAD

a.

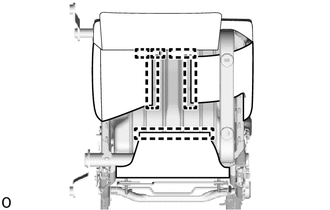

B536502

Attach the hook and install the seat cushion cover with pad.


b.

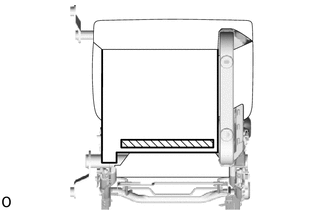

B536501C02
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.


Hide 79175F 10.INSTALL NO. 1 SEATBACK PAD RH

a.

Install the No. 1 seatback pad RH.


Hide 11.INSTALL SEAT COVER WIRE

a.

Install the seat cover wire.

HINT:
·

Wire 1000 mm (3.28 ft.) or longer and shaped wire are available as supplied parts.

·

For wire 1000 mm (3.28 ft.) or less in length, cut or shape 1000 mm (3.28 ft.) wire into the dimensions shown in the illustration.

·

Make sure to read the precautions before preparing the wire.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION

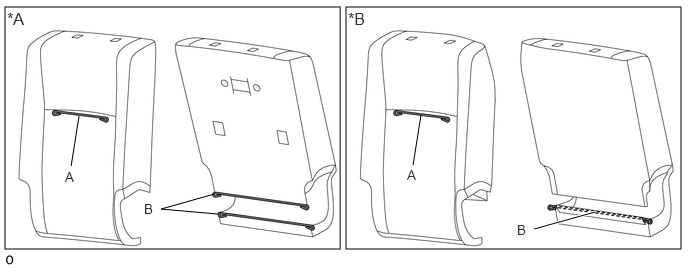

B541670C02
0.052,0.073 3.542,2.594 3.49,2.521 3.604,0.073 7.094,2.594 3.49,2.521 0.74,1.729 0.823,1.208 false 4.302,1.719 4.385,1.198 false 2.271,2.229 1.677,2.177 1.677,2.177 2.229,2.021 false 6.198,2.208 5.563,2.385 true 0.073,0.094 0.333,0.313 0.26,0.219 12 false *A 3.625,0.094 3.917,0.313 0.292,0.219 12 false *B 0.677,1.76 0.833,1.958 0.156,0.198 10 false A 4.24,1.74 4.396,1.938 0.156,0.198 10 false A 1.5,2.094 1.656,2.292 0.156,0.198 10 false B 5.385,2.313 5.542,2.51 0.156,0.198 10 false B
*A w/ Seatback Board *B w/o Seatback Board


Dimensions:
A 210 mm (8.27 in.) B 320 mm (1.05 ft.)


HINT:
B376752

The dimensions shown in the illustration are the length.



Hide 79013D 12.INSTALL NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

HINT:

When installing a No. 1 seatback cover sub-assembly RH, refer to precaution in order to prevent wrinkles from forming.

Click hereVehicle Interior>SEAT>FRONT SEAT ASSEMBLY (for Separate Seat Type)>PRECAUTION


a.

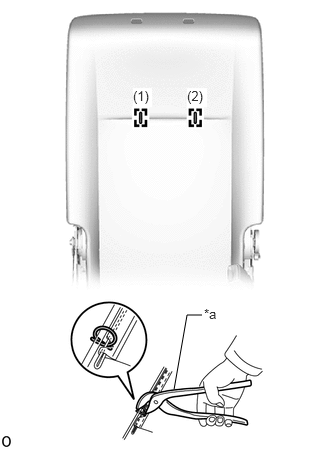

B541668C01
1.813,4.052 1.948,3.281 1.948,3.281 2.104,3.281 false 2.125,3.188 2.323,3.375 0.198,0.188 10 false *a 1.385,0.917 1.583,1.115 0.198,0.198 10 true (1) 1.948,0.917 2.156,1.115 0.208,0.198 10 true (2)
*a Hog Ring Pliers


Using hog ring pliers, install the No. 1 seatback cover sub-assembly RH to the No. 1 seatback pad RH with 2 new hog rings in the order indicated in the illustration.

NOTICE:
·

Be careful not to damage the No. 1 seatback cover sub-assembly RH.

·

Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the No. 1 seatback cover sub-assembly RH.




b.

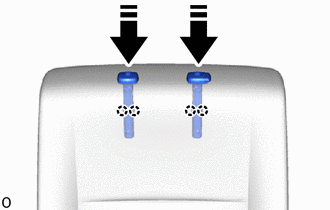

B541664C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the 2 rear seat headrest supports as shown in the illustration.


c.

w/o Seatback Board:

i.

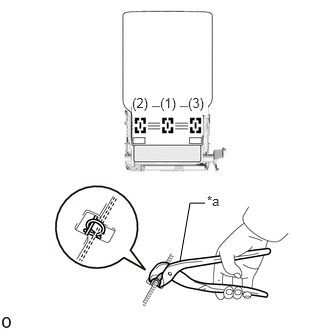

B541750C01
1.875,2.719 1.979,2.115 1.979,2.115 2.135,2.115 false 2.156,2.01 2.469,2.167 0.313,0.156 10 false *a 1.667,0.99 1.875,1.198 0.208,0.208 10 true (1) 1.375,0.99 1.583,1.198 0.208,0.208 10 true (2) 1.958,0.99 2.167,1.198 0.208,0.208 10 true (3)
*a Hog Ring Pliers


Install 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.



ii.
B541748C01
0,0 0,0 false
V100155

Fastening Tape


Attach the fastening tape.



d.

w/ Seatback Board:

i.

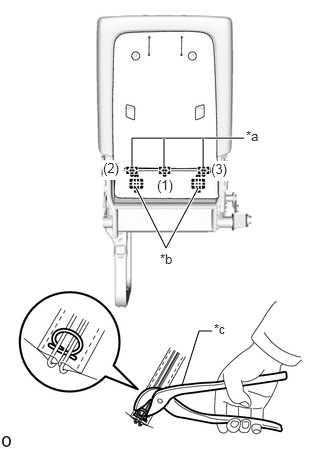

B541660C01
1.896,4.01 2.073,3.448 2.073,3.448 2.208,3.448 false 1.375,1.729 1.375,1.438 1.375,1.438 2.542,1.438 true 1.708,1.74 1.708,1.438 true 2.115,1.74 2.115,1.438 true 1.417,1.958 1.729,2.583 1.729,2.583 2.063,1.958 true 2.563,1.333 2.875,1.49 0.313,0.156 10 false *a 1.667,2.615 1.979,2.771 0.313,0.156 10 false *b 2.229,3.344 2.542,3.5 0.313,0.156 10 false *c 1.635,1.844 1.854,2.052 0.219,0.208 10 false (1) 1.073,1.667 1.292,1.875 0.219,0.208 10 true (2) 2.198,1.677 2.417,1.885 0.219,0.208 10 true (3)
*a Hog Ring
*b Hook
*c Hog Ring Pliers


Attach the hook.


ii.

Install 3 new hog rings in the order indicated in the illustration.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.




Hide 71701A 13.INSTALL REAR SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

a.

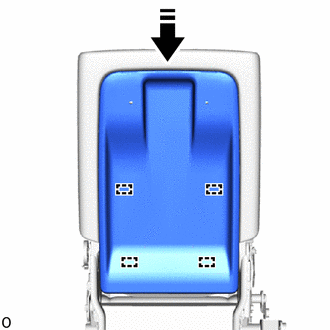

B541656C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and install the rear seatback board sub-assembly RH as shown in the illustration.


Hide 74690A 14.INSTALL REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

a.
B541654

Install the rear seat assist grip assembly with the 2 screws.


b.

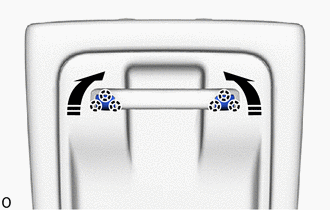

B541653C01
0,0 0,0 false
V113147

Close in this Direction


Close the 2 covers and attach the claw as shown in the illustration.


Hide 71834M 15.INSTALL RH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.

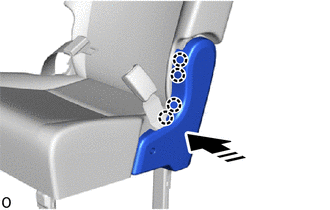

B541374C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


ii.

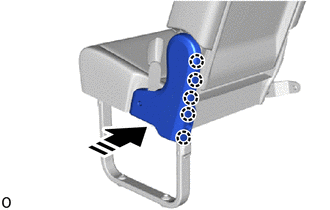

B541372C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


iii.
B541370

Install the RH seat rear No. 2 seat reclining cover LH with the 2 screws.



b.

w/o Seatback Board:

i.

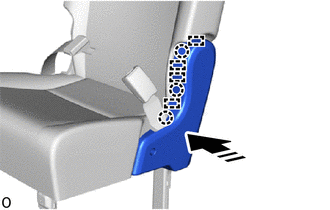

B541369C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.

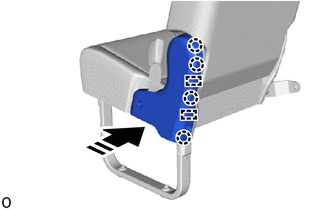

B541367C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


iii.
B541365

Install the RH seat rear No. 2 seat reclining cover LH with the 2 screws.



Hide 71833M 16.INSTALL RH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.

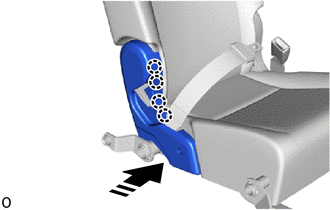

B541359C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


ii.

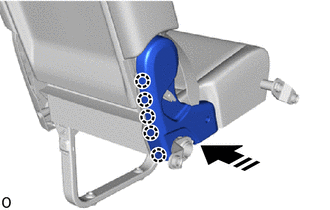

B541357C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw as shown in the illustration.


iii.
B541355

Install the RH seat rear No. 2 seat reclining cover RH with the 2 screws.



b.

w/o Seatback Board:

i.

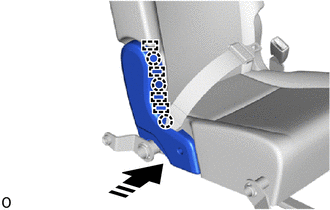

B541364C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


ii.

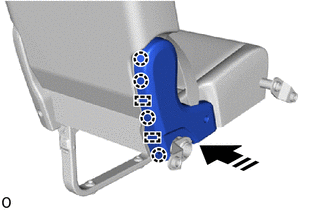

B541362C01
0,0 0,0 false
V113147

Install in this Direction


Attach the guide and claw as shown in the illustration.


iii.
B541360

Install the RH seat rear No. 2 seat reclining cover RH with the 2 screws.



Hide 72525R 17.INSTALL RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

a.

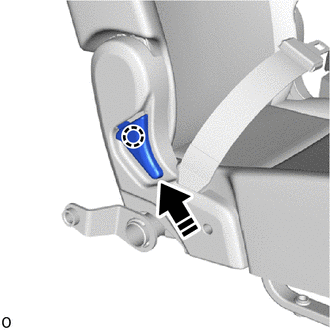

B541334C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the reclining adjuster release handle RH as shown in the illustration.


Hide 79967X 18.INSTALL REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.

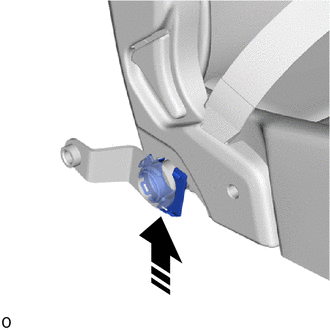

B541330C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.

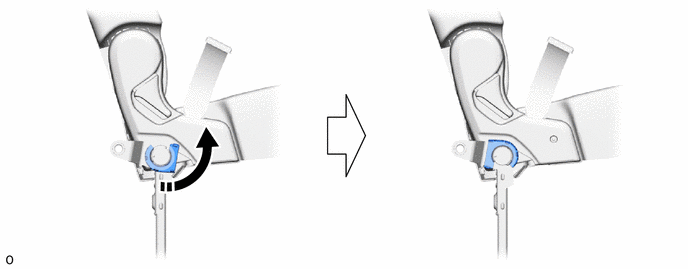

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B541326C01
0,0 0,0 false
V113147

Rotate in this Direction - -



c.

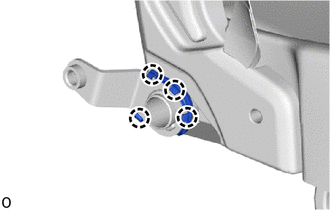

B536009

Attach the claw and install the rear No. 1 seat No. 5 leg side cover.


Hide 79967W 19.INSTALL REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.

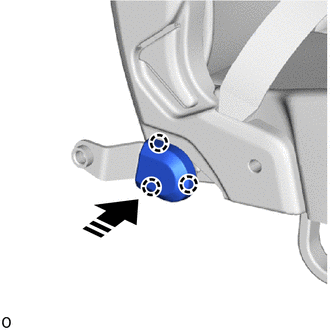

B541320C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967U 20.INSTALL REAR NO. 1 SEAT NO. 2 LEG SIDE COVER (for Type A)

a.

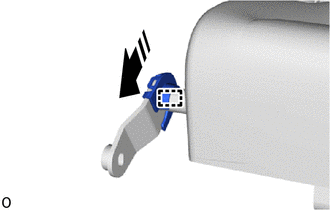

B536006C02
0,0 0,0 false
V113147

Install in this Direction


Attach the hook as shown in the illustration.


b.
B541316

Attach the claw and install the rear No. 1 seat No. 2 leg side cover.


Hide 79967T 21.INSTALL REAR NO. 1 SEAT NO. 1 LEG SIDE COVER (for Type A)

a.

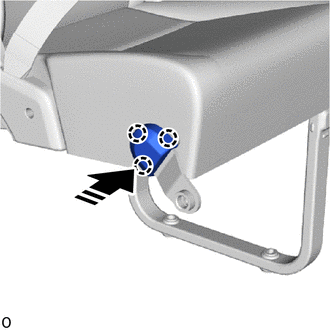

B541314C01
0,0 0,0 false
V113147

Install in this Direction


Attach the claw and install the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967V 22.INSTALL REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

for Type A:

i.

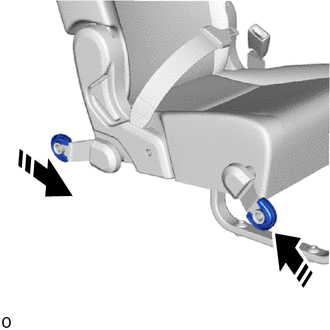

B541308C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.



b.

for Type B:

i.

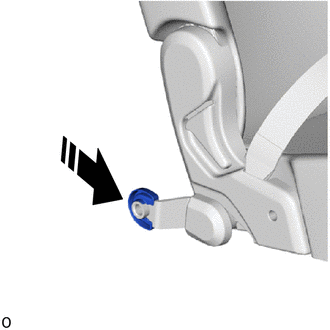

B541310C01
0,0 0,0 false
V113147

Install in this Direction


Attach the hook and install the rear No. 1 seat No. 3 leg side cover as shown in the illustration.
