RM35X0E _58 Vehicle Interior _078601 SEAT _0387386 REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt) A

SEAT  REAR SEAT ASSEMBLY(for Commuter, Single-Passenger Seat with 2-Point Type Seat Belt)  DISASSEMBLY


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 79967V 1.REMOVE REAR NO. 1 SEAT NO. 3 LEG SIDE COVER

a.

for Type A:

i.

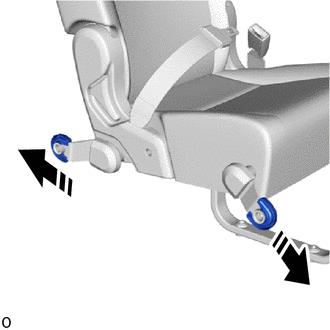

B541307C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the 2 rear No. 1 seat No. 3 leg side covers as shown in the illustration.



b.

for Type B:

i.

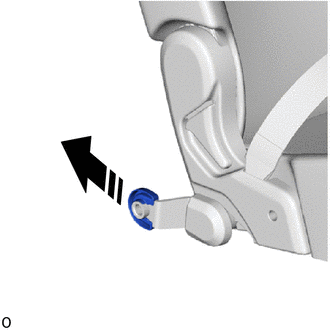

B541309C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 3 leg side cover as shown in the illustration.



Hide 79967T 2.REMOVE REAR NO. 1 SEAT NO. 1 LEG SIDE COVER (for Type A)

a.

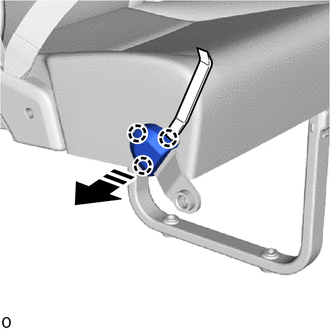

B541313C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 1 leg side cover as shown in the illustration.


Hide 79967U 3.REMOVE REAR NO. 1 SEAT NO. 2 LEG SIDE COVER (for Type A)

a.

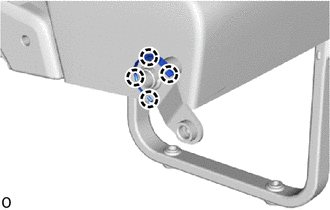

B541316

Detach the claw.


b.

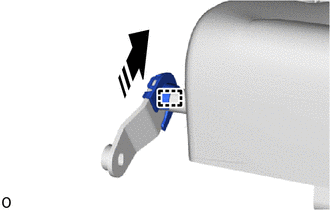

B536005C01
0,0 0,0 false
V113147

Remove in this Direction


Detach hook and remove the rear No. 1 seat No. 2 leg side cover as shown in the illustration.


Hide 79967W 4.REMOVE REAR NO. 1 SEAT NO. 4 LEG SIDE COVER

a.

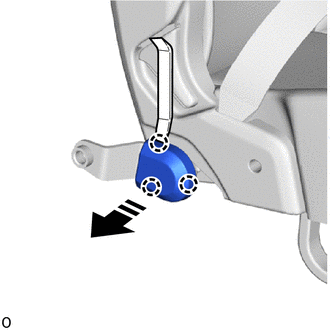

B541319C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the rear No. 1 seat No. 4 leg side cover as shown in the illustration.


Hide 79967X 5.REMOVE REAR NO. 1 SEAT NO. 5 LEG SIDE COVER

a.

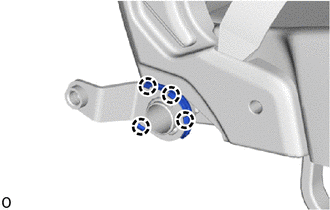

B541322

Detach the claw.


b.

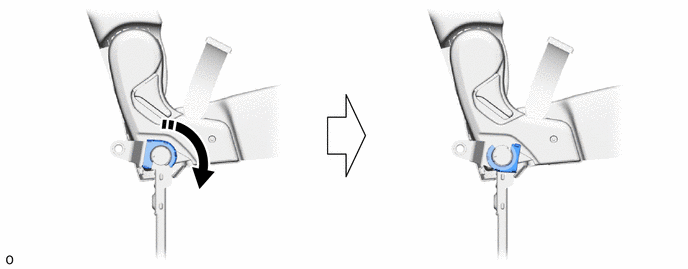

Rotate the rear No. 1 seat No. 5 leg side cover as shown in the illustration.

B541325C01
0,0 0,0 false
V113147

Rotate in this Direction - -



c.

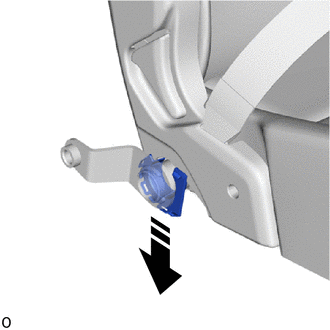

B541329C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the hook and remove the rear No. 1 seat No. 5 leg side cover as shown in the illustration.


Hide 72525R 6.REMOVE RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

a.

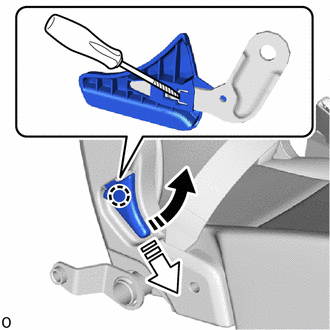

B541333C01
0,0 0,0 false
V113147

Lift in this Direction
V113148

Remove in this Direction
V100155

Protective Tape


Using a thin-bladed screwdriver, detach the claw and remove the reclining adjuster release handle RH while lifting it up as shown in the illustration.

HINT:

Tape the thin-bladed screwdriver tip before use.



Hide 71833M 7.REMOVE RH SEAT REAR NO. 2 SEAT RECLINING COVER RH

a.

w/ Seatback Board:

i.

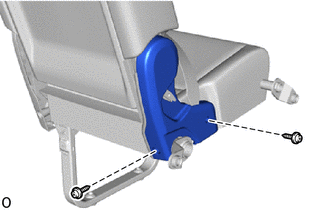

B541355

Remove the 2 screws.


ii.

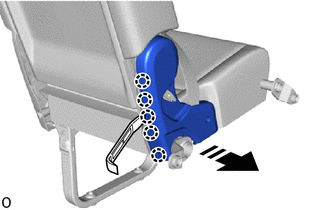

B541356C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


iii.

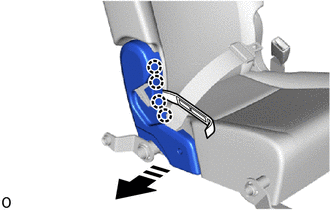

B541358C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw and remove the RH seat rear No. 2 seat reclining cover RH as shown in the illustration.



b.

w/o Seatback Board:

i.

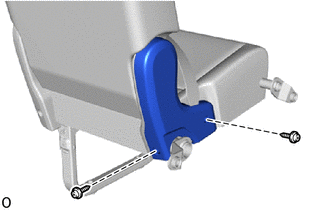

B541360

Remove the 2 screws.


ii.

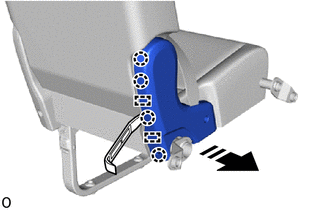

B541361C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

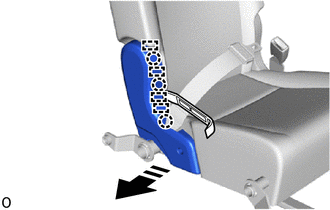

B541363C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover RH as shown in the illustration.



Hide 71834M 8.REMOVE RH SEAT REAR NO. 2 SEAT RECLINING COVER LH

a.

w/ Seatback Board:

i.

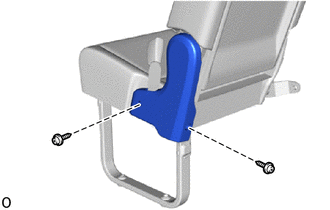

B541370

Remove the 2 screws.


ii.

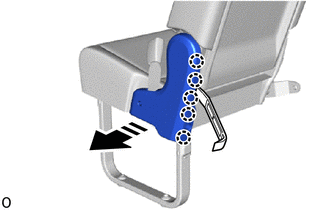

B541371C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the claw as shown in the illustration.


iii.

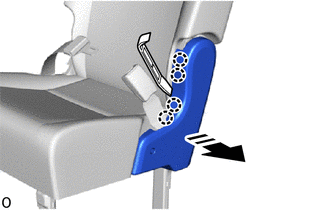

B541373C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach claw and remove the RH seat rear No. 2 seat reclining cover LH as shown in the illustration.



b.

w/o Seatback Board:

i.

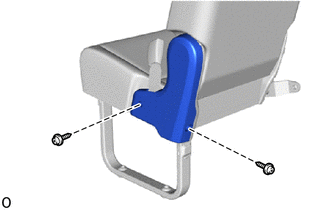

B541365

Remove the 2 screws.


ii.

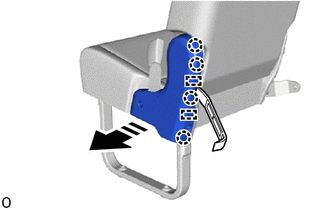

B541366C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw as shown in the illustration.


iii.

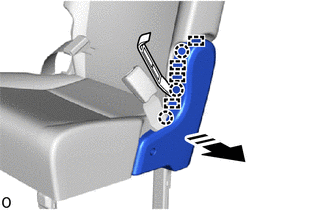

B541368C01
0,0 0,0 false
V113147

Remove in this Direction


Using moulding remover A, detach the guide and claw and remove the RH seat rear No. 2 seat reclining cover LH as shown in the illustration.



Hide 74690A 11.REMOVE REAR SEAT ASSIST GRIP ASSEMBLY (w/ Seatback Board)

a.

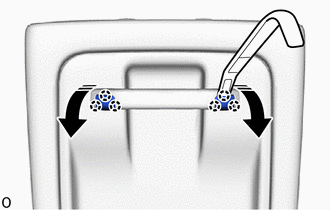

B541652C01
0,0 0,0 false
V113147

Open in this Direction


Using moulding remover A, detach the claw and open the 2 covers as shown in the illustration.


b.

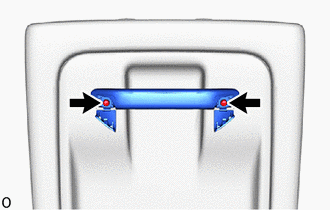

B541654

Remove the 2 screws and rear seat assist grip assembly.


Hide 71701A 12.REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY RH (w/ Seatback Board)

a.

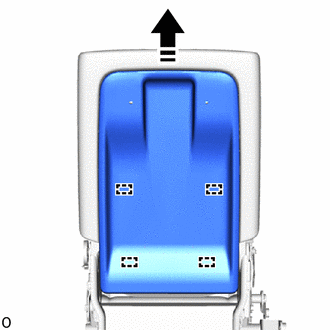

B541655C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the guide and remove the rear seatback board sub-assembly RH as shown in the illustration.


Hide 79013D 13.REMOVE NO. 1 SEATBACK COVER SUB-ASSEMBLY RH

a.

w/o Seatback Board:

i.
B541748C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


ii.
B541749

Remove the 3 hog rings.



b.

w/ Seatback Board:

i.

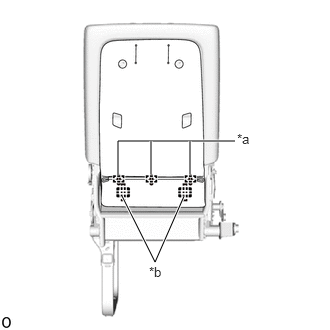

B541659C01
1.229,1.823 1.229,1.469 1.229,1.469 2.448,1.469 true 1.573,1.813 1.573,1.469 true 1.979,1.813 1.979,1.469 true 1.917,2.042 1.615,2.729 1.615,2.729 1.271,2.042 true 2.469,1.365 2.781,1.521 0.313,0.156 10 false *a 1.552,2.75 1.865,2.906 0.313,0.156 10 false *b
*a Hog Ring
*b Hook


Remove the 3 hog rings.


ii.

Detach the hook.



c.

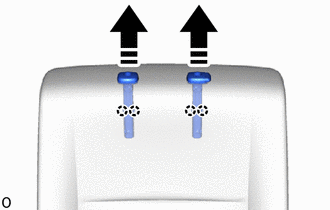

B541663C01
0,0 0,0 false
V113147

Remove in this Direction


Detach the claw and remove the 2 rear seat headrest supports as shown in the illustration.


d.

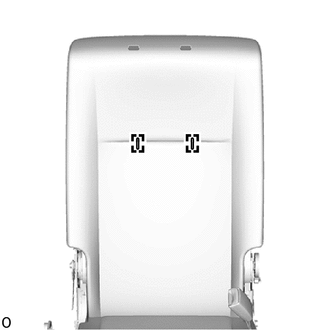

B541667

Remove the 2 hog rings and No. 1 seatback cover sub-assembly RH.

NOTICE:

Be careful not to damage the No. 1 seatback cover sub-assembly RH.



Hide 14.REMOVE SEAT COVER WIRE

a.

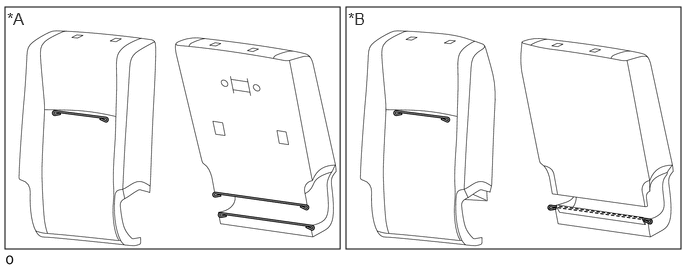

Remove the seat cover wire.

B541670C01
0.052,0.073 3.542,2.594 3.49,2.521 3.604,0.073 7.094,2.594 3.49,2.521 0.073,0.094 0.333,0.313 0.26,0.219 12 false *A 3.625,0.094 3.917,0.313 0.292,0.219 12 false *B
*A w/ Seatback Board *B w/o Seatback Board



Hide 79175F 15.REMOVE NO. 1 SEATBACK PAD RH

a.

Remove the No. 1 seatback pad RH.


Hide 16.REMOVE SEAT CUSHION COVER WITH PAD

a.

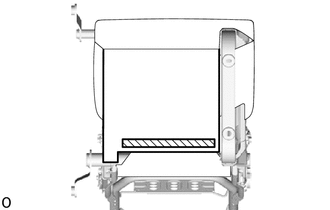

B541673C01
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.
B541674

Detach the hook and remove the seat cushion cover with pad.


Hide 79011E 17.REMOVE NO. 1 SEAT CUSHION COVER SUB-ASSEMBLY

a.

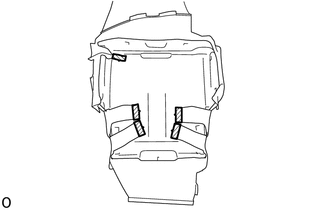

B536505C02
0,0 0,0 false
V100155

Fastening Tape


Detach the fastening tape.


b.
B536503

Remove the 10 hog rings and No. 1 seat cushion cover sub-assembly.

NOTICE:

Be careful not to damage the No. 1 seat cushion cover sub-assembly.



Hide 18.REMOVE SEAT COVER WIRE

a.
B536523

Remove the seat cover wire.


Hide 72345N 19.REMOVE NO. 1 SEAT STAND FRAME CAP RH

a.

for Type A:

i.
B541676

Remove the No. 1 seat stand frame cap RH.



b.

for Type B:

i.

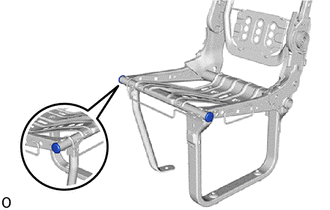

B541677

Remove the 2 No. 1 seat stand frame caps RH.



Hide 72552L 20.REMOVE RH SEAT RECLINING HINGE COVER LH

a.

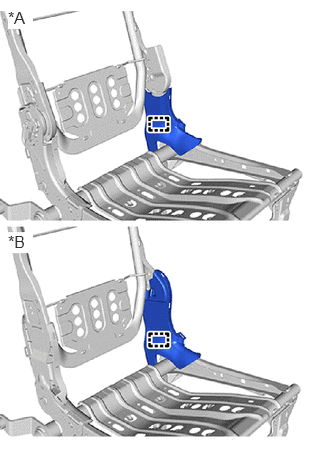

B542904C01
0.083,0.083 0.344,0.302 0.26,0.219 12 true *A 0.083,2.417 0.344,2.635 0.26,0.219 12 true *B
*A w/ Seatback Board
*B w/o Seatback Board


Detach the guide and remove the RH seat reclining hinge cover LH.


Hide 72551N 21.REMOVE RH SEAT RECLINING HINGE COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 71H76L 22.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER LH (w/ Seatback Board)

a.

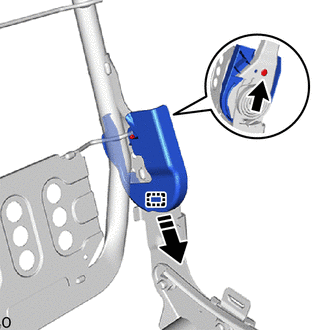

B541684C01
0,0 0,0 false
V113147

Remove in this Direction


Remove the clip.


b.

Detach the guide and remove the RH seat reclining adjuster inside cover LH as shown in the illustration.


Hide 71H75L 23.REMOVE RH SEAT RECLINING ADJUSTER INSIDE COVER RH (w/ Seatback Board)

HINT:

Use the same procedure described for the LH side.


Hide 79280E 24.REMOVE NO. 2 SEATBACK SPRING ASSEMBLY RH

a.

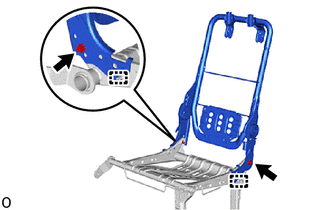

B541696

Remove the 2 bolts.


b.

Detach the guide and remove the No. 2 seatback spring assembly RH.
