RM35X0E _55 Steering _078944 POWER ASSIST SYSTEMS _0389716 POWER STEERING ECU A

POWER ASSIST SYSTEMS POWER STEERING ECU INSTALLATION

PROCEDURE

Hide Display 89650 1.INSTALL POWER STEERING ECU ASSEMBLY

a.

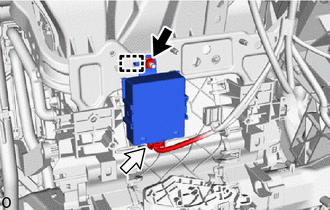

C412843C01

0,0 0,0 false

	Nut
	Connector

Attach the guide to install the power steering ECU assembly with the nut.

Torque:: 5.5 N*m (56 kgf*cm, 49 in.*lbf)

b.

Connect the connector.

Hide Display 55314A 2.INSTALL CENTER LOWER INSTRUMENT PANEL

·

for Semi-trim: Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0019,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0019,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0019,

·

for Full-trim: Click hereVehicle Interior>INTERIOR PANELS / TRIM>INSTRUMENT PANEL SAFETY PAD>INSTALLATION201902,201906,_58,_078375,_0380058,RM100000001FRUC_02_0070,201906,202310,_58,_078375,_0380058,RM100000001IHP7_02_0070,202310,999999,_58,_078375,_0380058,RM100000002EPVZ_02_0070,
