RM35X0E _58 Vehicle Interior _078381 LIGHTING (INT) _0381235 PERSONAL LIGHT G

LIGHTING (INT)  PERSONAL LIGHT  INSPECTION


PROCEDURE

Hide 1.INSPECT MAP LIGHT ASSEMBLY (w/o Overhead Console)

a.
E416935C05
0.698,1.156 1.354,1.25 true 2.135,1.25 2.802,1.125 true 1.729,1.365 1.667,1.802 true 0.115,0.063 0.427,0.219 0.313,0.156 10 false *a 2.854,1.042 3.313,1.24 0.458,0.198 10 false E 1.542,1.813 2,2.01 0.458,0.198 10 false LM2 0.458,1.063 0.917,1.26 0.458,0.198 10 false B
*a Component without harness connected
(Map Light Assembly)


Check the map light.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (B) - 1 (E) Map light switch LH OFF 10 kΩ or higher
Map light switch LH ON Below 1 Ω
Map light switch RH OFF 10 kΩ or higher
Map light switch RH ON Below 1 Ω
3 (B) - 2 (LM2) Courtesy switch OFF position 10 kΩ or higher
Courtesy switch DOOR position Below 1 Ω


If the result is not as specified, replace the map light bulb or map light assembly.


Hide 81208 2.INSPECT MAP LIGHT SUB-ASSEMBLY (for Bulb Type, w/ Overhead Console)

a.
E416935C06
0.698,1.156 1.354,1.25 true 2.135,1.25 2.802,1.125 true 1.729,1.365 1.667,1.802 true 0.115,0.063 0.427,0.219 0.313,0.156 10 false *a 2.854,1.042 3.313,1.24 0.458,0.198 10 false E 1.542,1.813 2,2.01 0.458,0.198 10 false LM2 0.458,1.063 0.917,1.26 0.458,0.198 10 false B
*a Component without harness connected
(Map Light Sub-assembly)


Check the map light.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
3 (B) - 1 (E) Map light switch LH OFF 10 kΩ or higher
Map light switch LH ON Below 1 Ω
Map light switch RH OFF 10 kΩ or higher
Map light switch RH ON Below 1 Ω
3 (B) - 2 (LM2) Courtesy switch OFF position 10 kΩ or higher
Courtesy switch DOOR position Below 1 Ω


If the result is not as specified, replace the map light bulb or map light sub-assembly.


Hide 81208 3.INSPECT MAP LIGHT SUB-ASSEMBLY (for LED Type, w/ Overhead Console)

a.

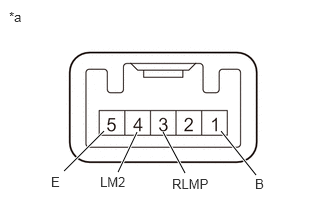

E416936C01
0.667,1.781 1.083,1.365 true 2.667,1.823 2.302,1.365 true 1.229,1.792 1.427,1.375 true 1.927,1.802 1.698,1.375 true 0.094,0.094 0.406,0.292 0.313,0.198 10 false *a 2.656,1.833 2.969,2.031 0.313,0.198 10 false B 1.792,1.833 2.292,2.083 0.5,0.25 10 false RLMP 1.042,1.813 1.542,2.063 0.5,0.25 10 false LM2 0.531,1.813 1.031,2.063 0.5,0.25 10 false E
*a Component without harness connected
(Map Light Sub-assembly)


Check the map light.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
1 (B) - 5 (E) Map light switch LH OFF 10 kΩ or higher
Map light switch LH ON Below 1 Ω
Map light switch RH OFF 10 kΩ or higher
Map light switch RH ON Below 1 Ω
Dome light switch OFF 10 kΩ or higher
Dome light switch ON Below 1 Ω
1 (B) - 4 (LM2) Door Switch OFF 10 kΩ or higher
Door Switch ON Below 1 Ω


If the result is not as specified, replace the map light sub-assembly.


b.

Check the door switch.

Measure the resistance according to the value(s) in the table below.

Standard Resistance:
Tester Connection Switch Condition Specified Condition
4 (LM2) - 3 (RLMP) Door Switch OFF 10 kΩ or higher
Door Switch ON Below 1 Ω


If the result is not as specified, replace the map light sub-assembly.
