RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389153 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 2-Passenger Seat with 3-Point Type Seat Belt) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Hide Display 72526J 2.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH (w/ Seatback Board)

Hide Display 72525N 3.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH (w/ Seatback Board)

Hide Display 71834N 4.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER LH

Hide Display 71833N 5.REMOVE LH SEAT REAR NO. 2 SEAT RECLINING COVER RH

Hide Display 73343 6.REMOVE REAR SEAT SHOULDER BELT GUIDE RH

Hide Display 7.REMOVE REAR SEAT CUSHION COVER WITH PAD

Remove the 2 bolts.

Detach the guide and remove the 2 retractors.

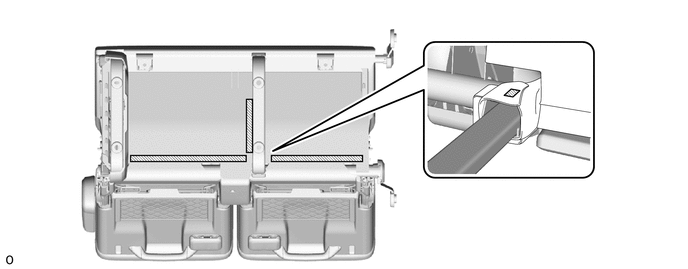

Detach the fastening tape.

0,0 0,0 false

Fastening tape

Detach the hook and remove the rear seat cushion cover with pad.

Attach the guide.

Temporarily install the 2 retractors.

Hide Display 8.REMOVE REAR SEAT INNER BELT ASSEMBLY

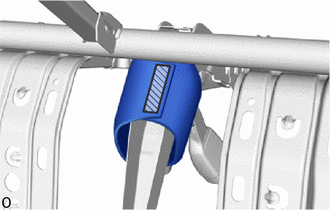

0,0 0,0 false

Fastening Tape

Detach the fastening tape.

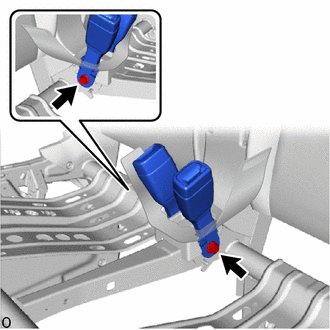

Remove the 2 bolts and 2 rear seat inner belt assemblies.
