REAR SEAT INNER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt)
A
SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, Single-Passenger Seat with 3-Point Type Seat Belt) INSTALLATION
CAUTION / NOTICE / HINT
- CAUTION:
- ·
Wear protective gloves. Sharp areas on the parts may injure your hands.
·There is risk of injury.
- HINT:
- ·
Use the same procedure for RHD and LHD vehicles.
·The procedure listed below is for LHD vehicles.
·The procedure listed below is a representative example.
·Use the same procedure for all rows, unless otherwise specified.
PROCEDURE
73380L
1.INSTALL REAR 1 PERSON SEAT BELT ASSEMBLY
a.
1.667,1.385 1.021,0.958
1.021,0.958 1.948,1.198
true
0.813,0.75 0.99,0.958
0.177,0.208
10
true

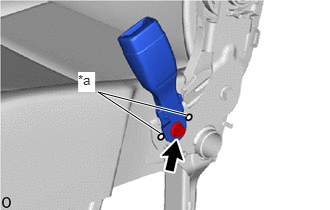

*a
| *a | Protruding Part |
Install the rear 1 person seat belt assembly with the bolt.
- Torque:
- 42 N*m (428 kgf*cm, 31 ft.*lbf)
- NOTICE:
-
Do not allow the anchor of the rear 1 person seat belt assembly to overlap the protruding part.
71834M
2.INSTALL RH SEAT REAR NO. 2 SEAT RECLINING COVER LH
