SEAT BELT  REAR SEAT INNER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt)  INSTALLATION


CAUTION / NOTICE / HINT

CAUTION:
·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.



HINT:
·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.



PROCEDURE

Hide 1.INSTALL REAR SEAT INNER BELT ASSEMBLY

a.

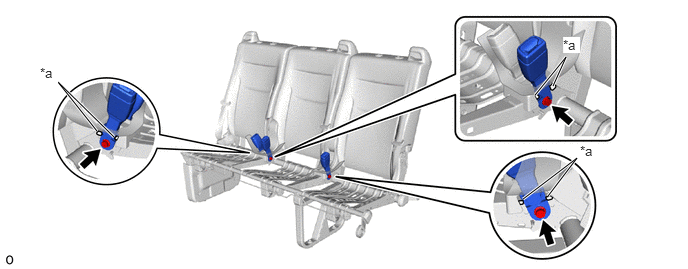

Install the 3 rear seat inner belt assemblies with the 3 bolts.

B541599C02
1.01,1.365 0.604,0.854 0.604,0.854 1.188,1.427 true 5.448,2.073 6.01,1.646 6.01,1.646 5.708,2.042 true 5.573,0.99 5.896,0.594 5.896,0.594 5.76,0.896 true 0.417,0.677 0.604,0.885 0.188,0.208 10 true *a 5.865,0.385 6.042,0.552 0.177,0.167 10 true *a 6.042,1.49 6.219,1.656 0.177,0.167 10 true *a
*a Protruding Part - -


Torque:
42 N*m (428 kgf*cm, 31 ft.*lbf)

NOTICE:

Do not allow the rear seat inner belt assembly to overlap the protruding part.



b.
B540036C01
0,0 0,0 false
V100155

Fastening Tape

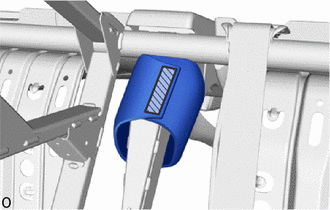

Attach the fastening tape.

HINT:

Use the same procedure for the other side.



Hide 71833S 5.INSTALL REAR NO. 1 SEAT RECLINING COVER RH

HINT:

Use the same procedure described for the LH side.


Hide 72525N 7.INSTALL NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

HINT:

Use the same procedure described for the LH side.
