RM35X0E _58 Vehicle Interior _078602 SEAT BELT _0389154 REAR SEAT INNER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) A

SEAT BELT REAR SEAT INNER BELT ASSEMBLY(for Commuter, 3-Passenger Seat with 3-Point Type Seat Belt) REMOVAL

CAUTION / NOTICE / HINT

CAUTION:: ·

Wear protective gloves. Sharp areas on the parts may injure your hands.

·

There is risk of injury.

HINT:: ·

Use the same procedure for RHD and LHD vehicles.

·

The procedure listed below is for LHD vehicles.

·

The procedure listed below is a representative example.

·

Use the same procedure for all rows, unless otherwise specified.

Hide Display 1.REMOVE REAR SEAT ASSEMBLY LH

Hide Display 72526J 2.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE LH

Hide Display 72525N 3.REMOVE NO. 1 SEAT RECLINING ADJUSTER RELEASE HANDLE RH

Hide Display 71834S 4.REMOVE REAR NO. 1 SEAT RECLINING COVER LH

Hide Display 71833S 5.REMOVE REAR NO. 1 SEAT RECLINING COVER RH

Hide Display 73343 6.REMOVE REAR SEAT SHOULDER BELT GUIDE RH

Hide Display 7.REMOVE REAR SEAT CUSHION COVER WITH PAD

Hide Display 8.REMOVE REAR SEAT INNER BELT ASSEMBLY

0,0 0,0 false

Fastening Tape

Detach the fastening tape.

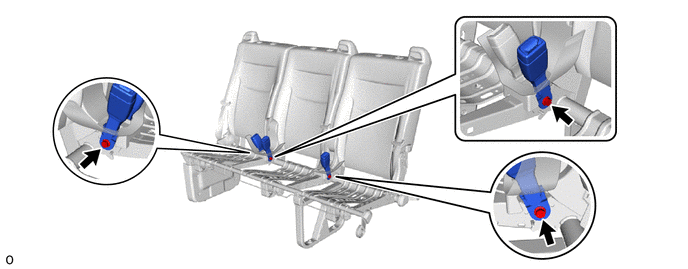

Remove the 3 bolts and 3 rear seat inner belt assemblies.
