HEATING / AIR CONDITIONING  MAGNET VALVE  INSTALLATION


PROCEDURE

Hide 88515A 1.INSTALL COOLER EXPANSION VALVE WITH MAGNET VALVE

a.

Remove the vinyl tape from the air conditioner tube and accessory assembly and cooler expansion valve with magnet valve.


b.

Sufficiently apply compressor oil to 4 new O-rings and the fitting surface of the air conditioner tube and accessory assembly.

Compressor Oil:

ND-OIL 8 or equivalent



c.

Install the 4 O-rings to the air conditioner tube and accessory assembly.

NOTICE:

Keep the O-rings and O-ring fitting surfaces free of foreign matter.



d.

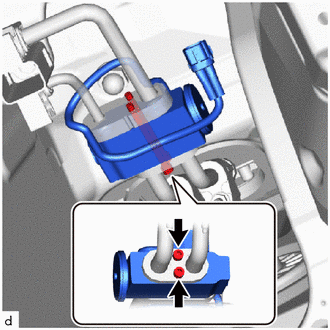

E416476

Using a 4 mm hexagon socket wrench, install the cooler expansion valve with magnet valve with the 2 bolts.

Torque:
3.5 N*m (36 kgf*cm, 31 in.*lbf)

NOTICE:

Make sure not to cut the O-ring while installing it (Cut O-rings cannot be installed).



Hide 88891Q 2.INSTALL NO. 2 COOLER COVER

a.

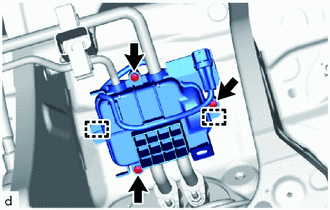

E416475

Attach the guide to temporarily install each No. 2 cooler cover.


b.

Install the 3 screws.


c.

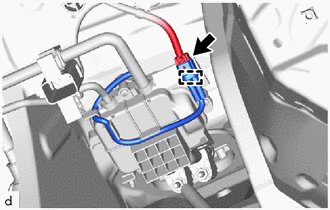

E416474

Connect the connector and attach the clamp.
